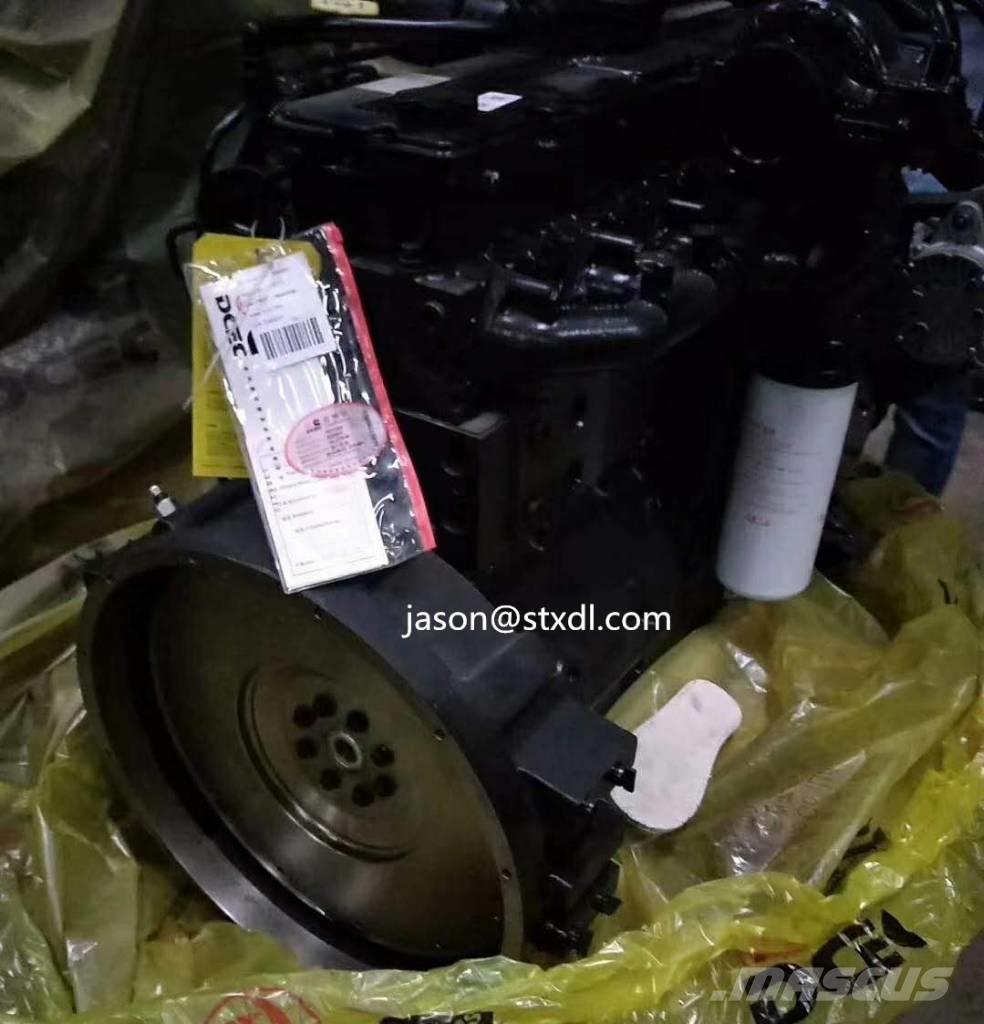

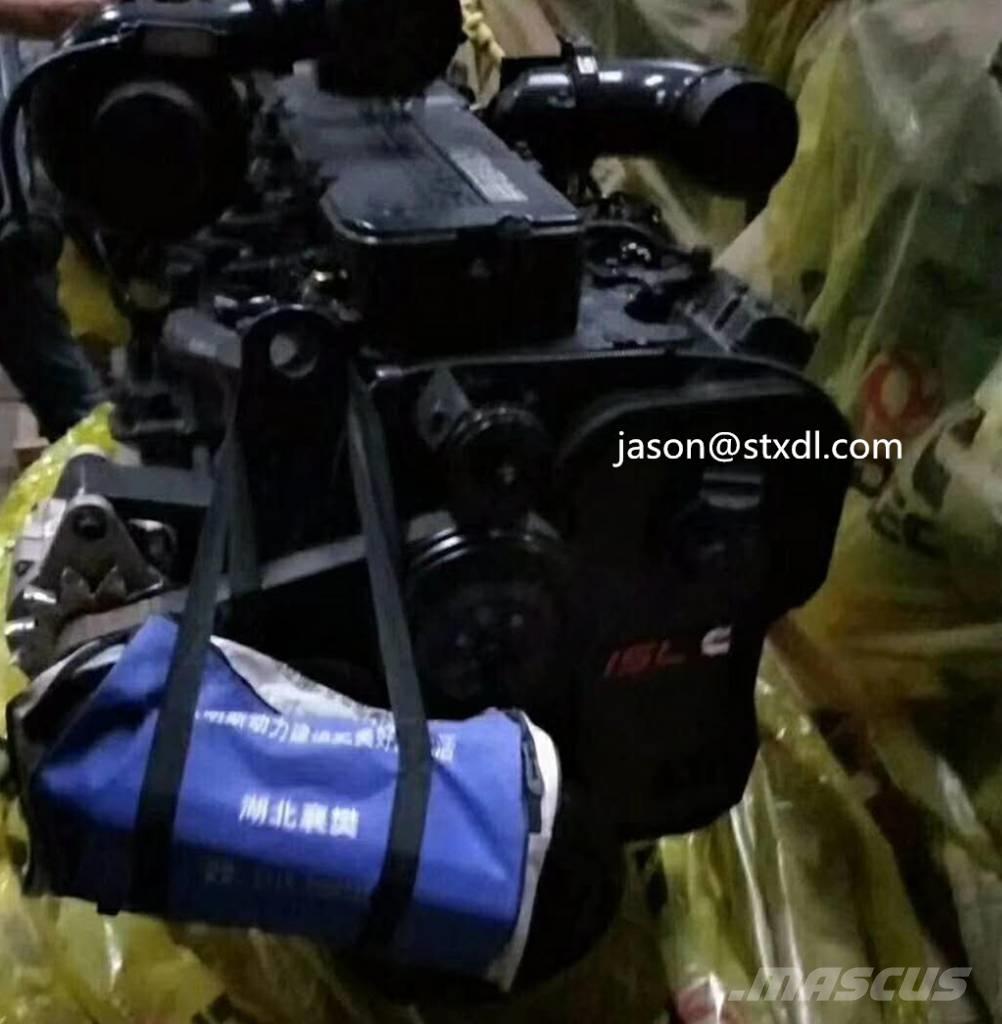

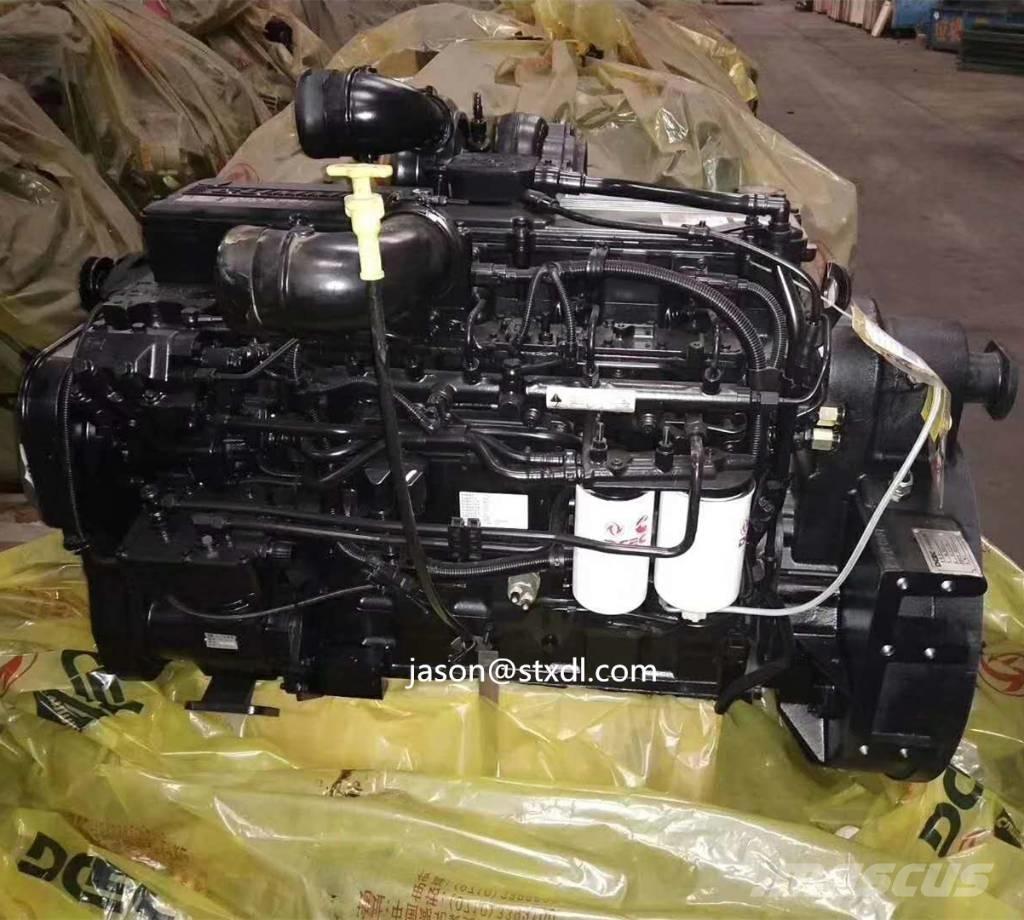

커민스 ISL340 51

Cummins ISL340 51 Diesel Engine for Vehicle General Information of Cummins ISL340 51 Diesel Engine for Vehicle Engine Model ISL340 51 Engine Type 6 Cylinders, in Line Displacement 8.9 L Bore*Stroke(mm) 114 * 144.5 Compression Ratio 16.6 : 1 CPL Number 41979 Net Weight (with flywleel & alternator) 738 Kg Overall Diemension(L*W*H) 1149mm*799mm*1022mm Technical Specification of Cummins ISL340 51 Diesel Engine for Vehicle Certification Euro III Aspiration Turbocharged & Air-Air Inter-cooled Fuel System Cummins CCR Electrical System(Starter Motor/Alternator) 24V/750A Lowest Starting Temp.(with/without auxiliary system) -12℃/-33℃ Engine Cooling Fluid Volume 11.1 L Performance Data of Cummins ISL340 51 Diesel Engine for Vehicle Rated Power/Speed 252kW/340HP @ 2100rpm Max.Torque/Speed 1425N.m @ 1100~1400 rpm Fuel Consumption @ Rated Power    - Idel Speed 600~800 rpm Max. Continuous Running Altitude 2000 m
