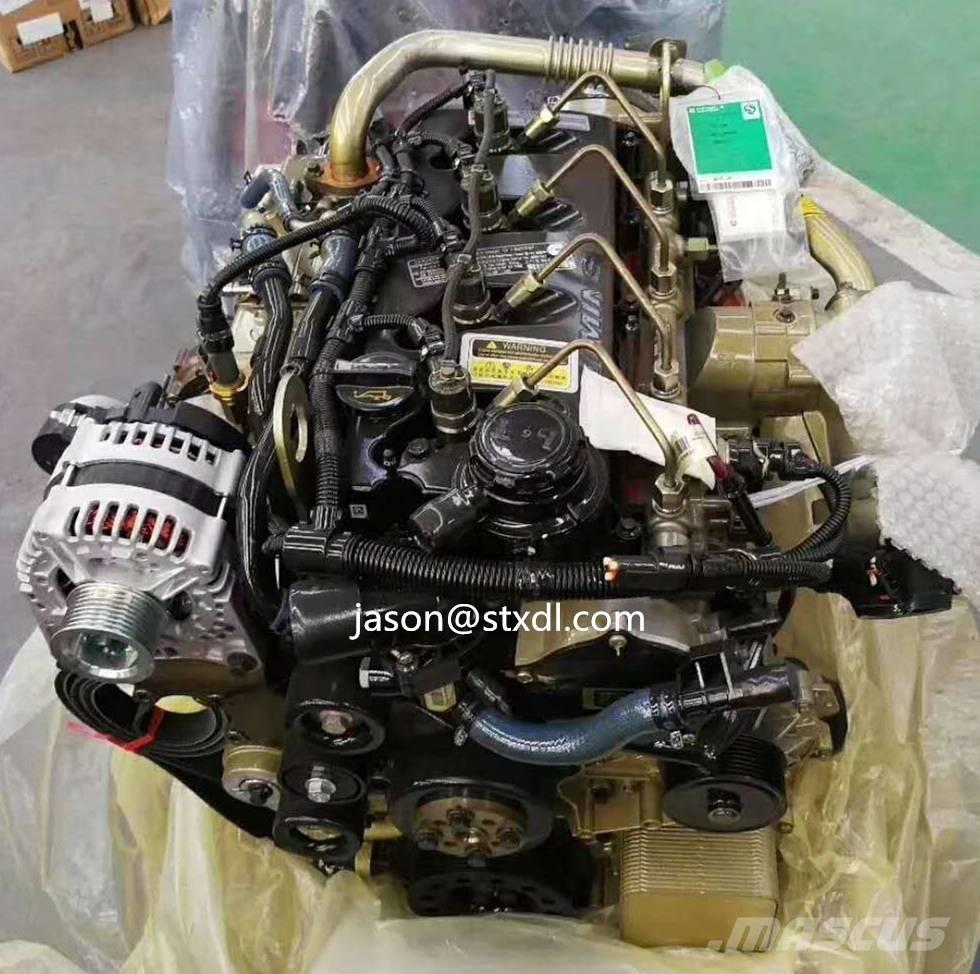

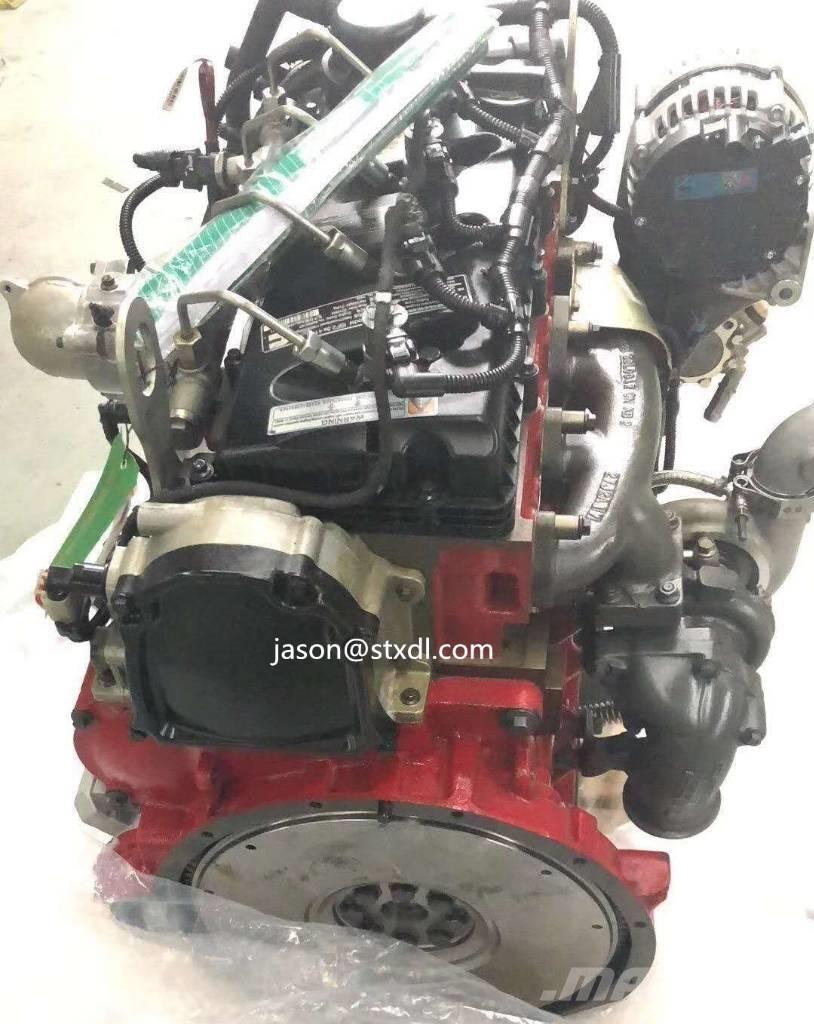

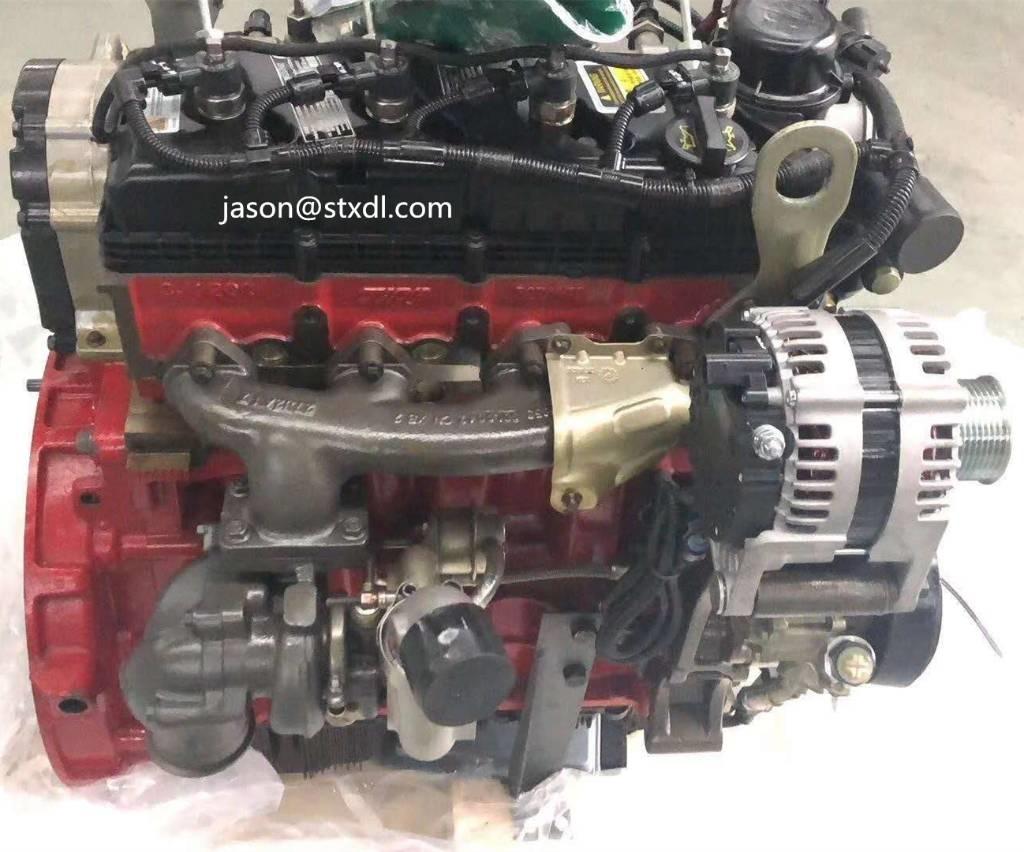

커민스 ISF2.8s3148T

Cummins ISF2.8s3148T Diesel Engine for Vehicle General Information of Cummins ISF2.8s3148T Diesel Engine for Vehicle Engine Model ISF2.8s3148T Engine Type 4 Cylinders, in Line Displacement 2.78 L Bore*Stroke(mm) 94 * 100 Compression Ratio 16.5:1 Net Weight (with flywleel & alternator) 340 Kg Overall Diemension(L*W*H) 810mm*695mm*806mm Technical Specification of Cummins ISF2.8s3148T Diesel Engine for Vehicle Certification Euro Ⅲ Aspiration Turbocharged & Inter-cooled Fuel System Direct Injection Pump Electrical System(Starter Motor/Alternator) 24V/750A Lowest Starting Temp.(with/without auxiliary system) -10℃/-25℃ Engine Cooling Fluid Volume 11.1 L Performance Data of Cummins ISF2.8s3148T Diesel Engine for Vehicle Rated Power/Speed 110kW/150HP @ 3200rpm Max.Torque/Speed 360N.m @ 1800-2700rpm Fuel Consumption @ Rated Power 218 g/kW.h Idel Speed 750 rpm Max. Continuous Running Altitude 5200 m
