커민스 4BTA3.9-P100
부가세 제외가격
POA
출력
INFO
제품군
엔진
제작사/모델
커민스 4BTA3.9-P100
제작년도
2019
컨디션
새제품
장비위치
Jining, Shandong, China
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
34B00FC8
세부정보
재고번호
4BTA3.9-P100
최근검사
yes
엔진 출력
70 kW (95.2 마력)
부품 ID
4BTA3.9-P100
서비스 내역 전체
예
엔진 제조사
Cummins
제조번호
4BTA3.9-P100
운반 중량
450 kg
장비크기
1200 x 1000 x 1400 mm
RPM
1500
매연 등급
Stage II / Tier II
상태 정보/보증
ISO9001
제품 국가
중국
운송 조건
FCA, CPT, FAS, FOB, CIF, EXW
기타 정보

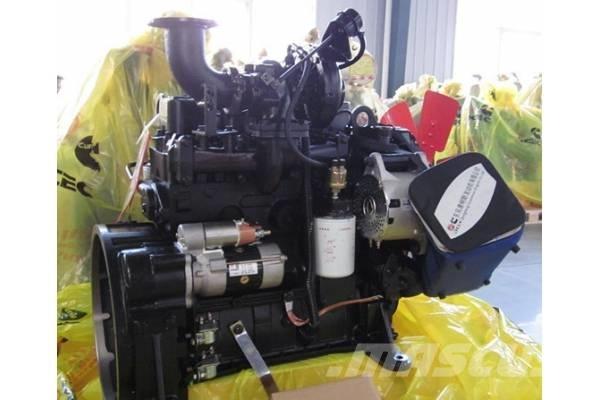

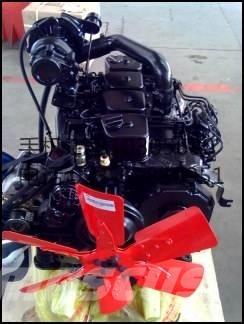

Cummins 4BTA3.9-P100 Industrial Diesel Engine
General Information of Cummins 4BTA3.9-P100 Industrial Diesel Engine
Engine Model 4BTA3.9-P100
Engine Type 4 Cylinders, in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
Compression Ratio 17.3 : 1
Net Weight (with flywleel & alternator) 338 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification of Cummins 4BTA3.9-P100 Industrial Diesel Engine
Certification Euro Ⅱ
Aspiration Turbocharged-Intercooled
Fuel System Direct Injection Pump
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system -12℃
Cooling Method Water Cooled
Performance Data of Cummins 4BTA3.9-P100 Industrial Diesel Engine
Rated Power 70 kW/100 HP
Rated Speed 1500 rpm
Max.Torque/Speed 410 N.m /1500 rpm
Fuel Consumption 210 g/Kw.h
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
