커민스 4BTA3.9-C125
부가세 제외가격
출력
INFO
제품군
엔진
제작사/모델
커민스 4BTA3.9-C125
제작년도
2020
컨디션
새제품
장비위치
Jining, Shandong, China
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
9B92AB06
가격
화폐 선택
세부정보
재고번호
4BTA3.9-C125
최근검사
yes
엔진 출력
93 kW (126 마력)
부품 ID
4BTA3.9-C125
서비스 내역 전체
예
엔진 제조사
Cummins
제조번호
4BTA3.9-C125
운반 중량
400 kg
장비크기
1000 x 600 x 1200 mm
RPM
2200
매연 등급
Stage II / Tier II
상태 정보/보증
ISO9001
제품 국가
중국
운송 조건
FOB, CFR, CIF, EXW
기타 정보

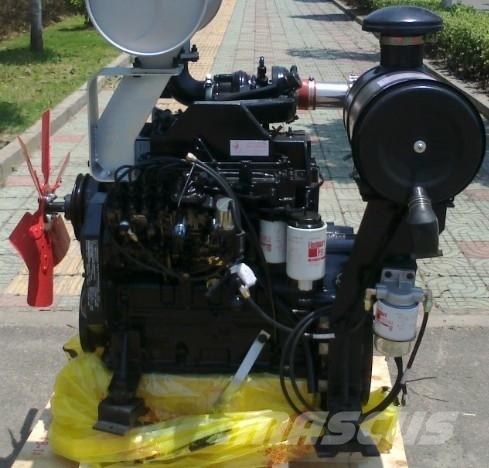

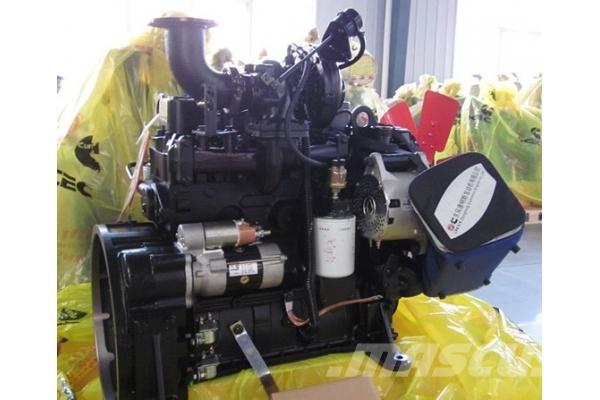

Cummins 4BTA3.9-C125 Industrial Diesel Engine
General Information
Engine Model 4BTA3.9-C125
Engine Type 4 Cylinders in Line
Displacement 3.9 L
Bore*Stroke(mm) 102 * 120
Engine Configuration Number D383055CX02
Net Weight (with flywleel & alternator) 355 Kg
Overall Diemension(L*W*H) 867mm*544mm*988mm
Technical Specification
Certification Euro I
Aspiration Turbocharged & Intercooled
Fuel System Wuxi Weifu A Pump/RSV Governor
Electrical System(Starter Motor/Alternator) 12V/24V
Lowest Starting Temp without auxiliary system 0℃
Engine Cooling Fluid Volume 8.3 L
Performance Data
Rated Power/Speed 93 kW/125HP 2200rpm
Max.Torque/Speed 475 N.m 1500 rpm
Fuel Consumption Rated Power 233g/Kw.h
Idel Speed 950 rpm
Max. Continuous Running Altitude 2000 m
Jining Haoduo Import and export co., Ltd.
Second floor, First section, No.2 building,Jining Lantian Boiler 272000 Jining 济宁 Shandong 山东 중국
