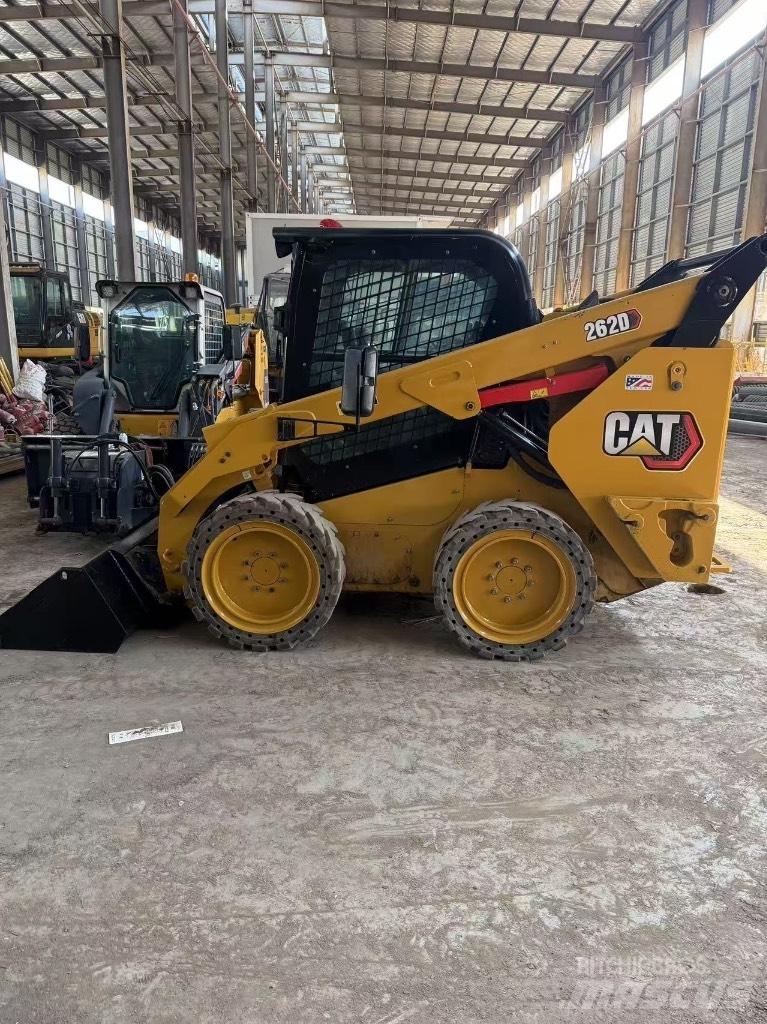

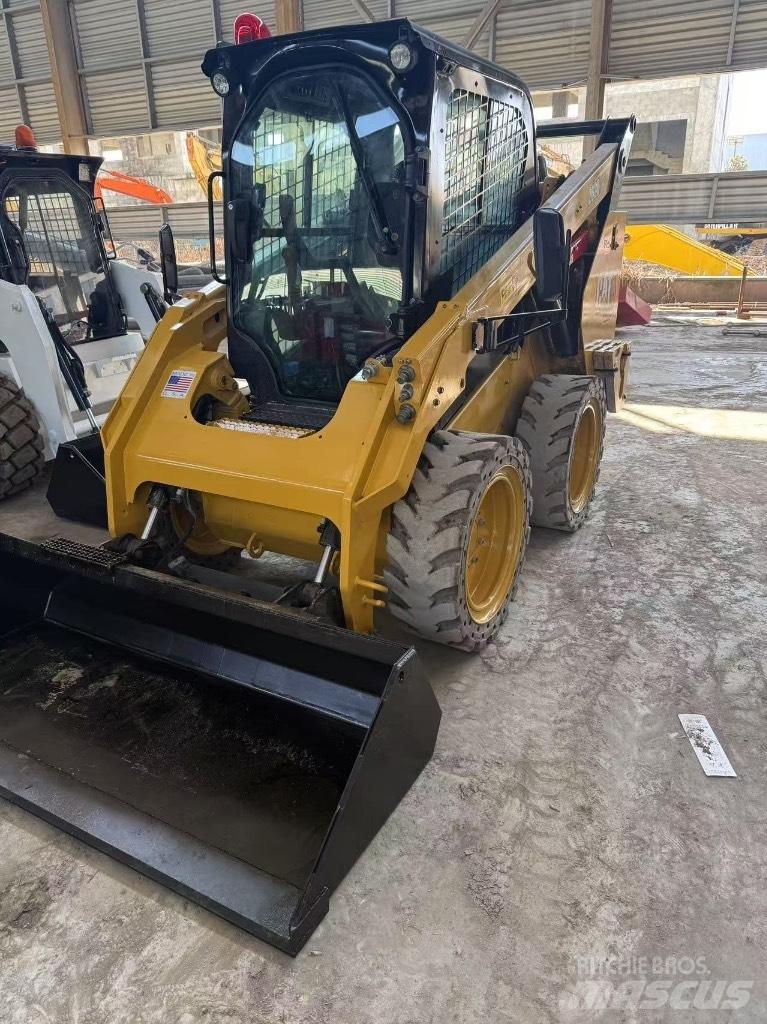

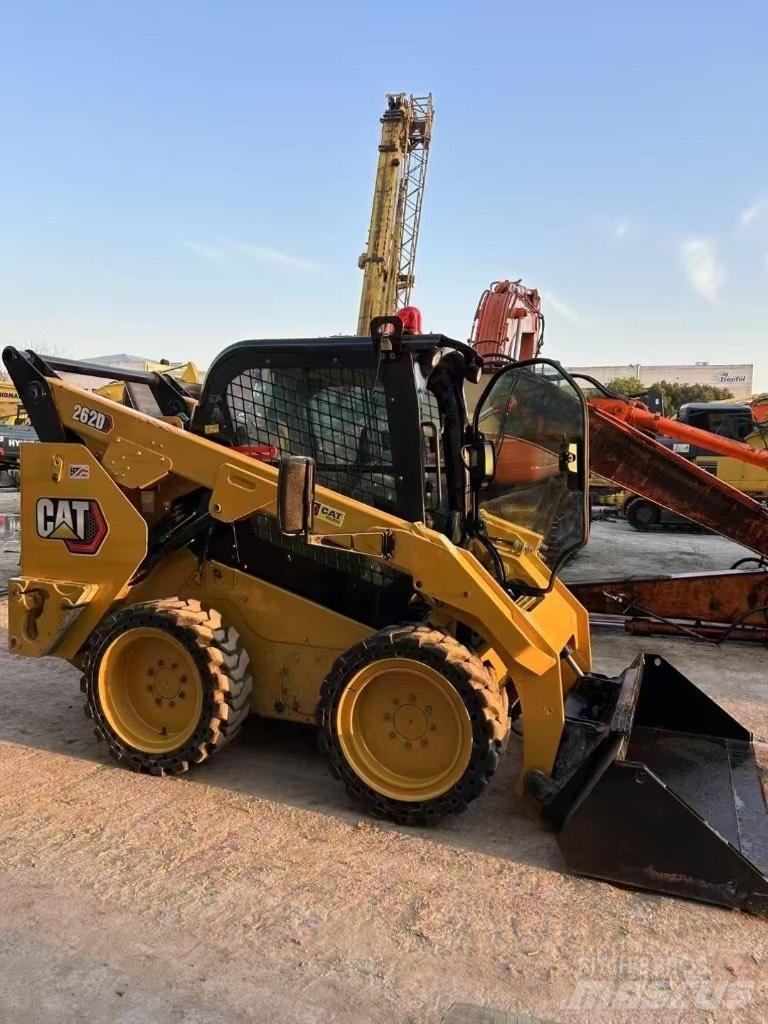

CAT 262 D

Caterpillar CAT ® The detailed parameters of the 262D skid steer loader are as follows: Technical parameters: Suspension length of bumper behind rear axle: 1083.0 mm Extension distance at maximum lifting and unloading position: 786.0 mm Gap at maximum lifting and unloading position: 2380.0 mm Rear inclination angle at maximum height: 84 ° The height of the bucket connecting pin at the transport position is 200.0 mm Maximum unloading angle: 51 ° Maximum total height: 4008.0 mm Bucket connection pin height at maximum lifting height: 3172.0 mm Extension distance of bucket connecting pin at maximum lifting height: 393.0 mm Departure angle: 26 ° Ground clearance: 226.0 mm Maximum extension distance when the arm is parallel to the ground: 1293.0 mm Steering radius from center to rear of machine: 1805.0 mm Turning radius from center to connector: 1401.0 mm Steering radius from center to bucket: 2181.0 mm Height to the top of the cab: 2110.0 mm Vehicle width (including tires): 1676.0 mm Wheelbase: 1249.0 mm Length of bucket when placed on the ground: 3714.0 mm Length (excluding bucket): 2995.0 mm Hydraulic system parameters: Hydraulic flow rate (standard): 33.0 kW Loader hydraulic pressure: 23000.0 kPa Hydraulic flow rate of loader: 86.0 l/min High flow XPS hydraulic flow rate (standard): 57.0 kW High flow XPS maximum loader hydraulic pressure: 28000.0 kPa High flow XPS maximum loader hydraulic flow: 121.0 l/min Cabin parameters: Compliant with ROPS ISO 3471:2008 and FOPS ISO 3449:2005 Level I standards Power transmission system parameters: Driving speed (forward or reverse, single speed): 12.5 km/h Driving speed (forward or reverse, dual speed option): 17.7 km/h Maintenance and refueling capacity: Cooling system: 14.0 l Engine crankcase: 11.0 l Fuel tank: 94.0 liters Hydraulic system: 52.0 l Hydraulic oil tank: 39.0 l Each side chain transmission box: 12.7
