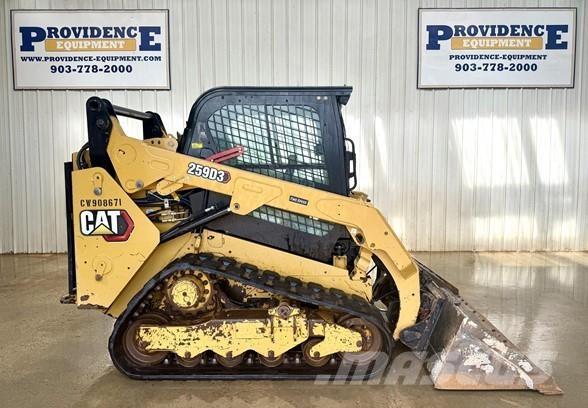

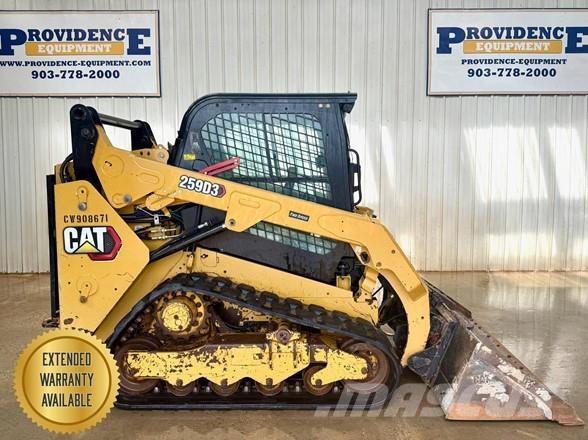

CAT 259D3

Description: Machine Highlights Year: 2020 Make: Caterpillar Model: 259D3 Cab Standard Flow Hydraulic Quick Attach Joystick Controls 2 Speed Tipping Load: 5,745lb Operating Weight: 8,987lb Hours: 3277 Serial Number: CAT0259DTCW908671 Warranty Emissions warranty until 12/22/2025 or 3,000 hours EXTENDED WARRANTY AVAILABLE FOR PURCHASE Ask one of our salesman for more information! Engine Make: CAT Model: C3.3B DIT (turbo) Displacement: 203.00 in³ Gross Power: 74.30HP Net Power: 73.20HP Bore: 3.70 in Stroke: 4.70 in Operating Specifications Tipping Load: 5,745lb Breakout Force - Tilt Cylinder: 4,965lb Ground Contact Area: 12.6 in Track: 1483.00 in² Ground Pressure: 12.6 in Track: 6.10 psi Travel Speed L/H- 5.9 / 8.5mph Weights Operating weight: 8987lb Dimensions Length - Track on Ground: 59.00 in Overall Length – Track: 78.70 in Height - Top of Cab: 83.10 in Ground Clearance: 8.90 in Departure Angle: 35° Maximum Dump Angle: 52° Bucket Pin Height - Carry Position: 7.80 in Vehicle Width (400 mm/15.7 in tracks): 69.00 in Turning Radius from Center – Coupler: 54.80 in Bucket Pin Reach - Maximum Lift: 9.40 in Vehicle Width (320 mm/12.6 in tracks): 66.00 in Maximum Reach - With Arms Parallel to Ground: 51.40 in Maximum Overall Height: 154.10 in Turning Radius from Center – Bucket: 86.00 in Bucket Pin Height - Maximum Lift: 121.00 in Length - Without Bucket: 108.90 in Rack Back Angle - Maximum Height: 87° Hydraulic System Hydraulic Flow - Standard - Loader Hydraulic Pressure: 3335.00 psi Hydraulic Flow - Standard - Loader Hydraulic Flow: 20.00 gal/min Hydraulic Flow - Standard - Hydraulic Power (Calculated): 39.00 HP 2020 CATERPILLAR 259D3 STANDARD FLOW CAB TRACK SKID STEER LOADER, WITH HYDRAULIC QUICK ATTACH, JOYSTICK CONTROLS, A/C/HEAT. EMISSIONS WARRANTY UNTIL 12/22/2025 OR 3,000 HOURS. EXTENDED WARRANTY AVAILABLE FOR PURCHASE. ASK ONE OF OUR SALESMAN FOR MORE INFORMATION! SE HABLA ESPAÑOL! FINANCING AVAILABLE! PLEASE CALL US WITH ANY QUESTIONS! ASK ABOUT OUR REASONABLE SHIPPING RATES! Airconditioning: 1 Coupler: 1 Enginemake: CAT Enginemodel: : C3.3B DIT Fueltype: Diesel Heater: 1 Height: 154 Length: 108.9 Ropstype: Enclosed Width: 66 Tracktype: Rubber Shippinglength: 137.3 Shippingwidth: 78 Quickattach: 0 Breakoutforce: 4965 Bucket: 1 Camera: 0 Shippingheight: 154 Shippingweight: 8987 Tipload: 5745 Counterweight: 0 Cruisespeed: 5.9 Turbo: 1
