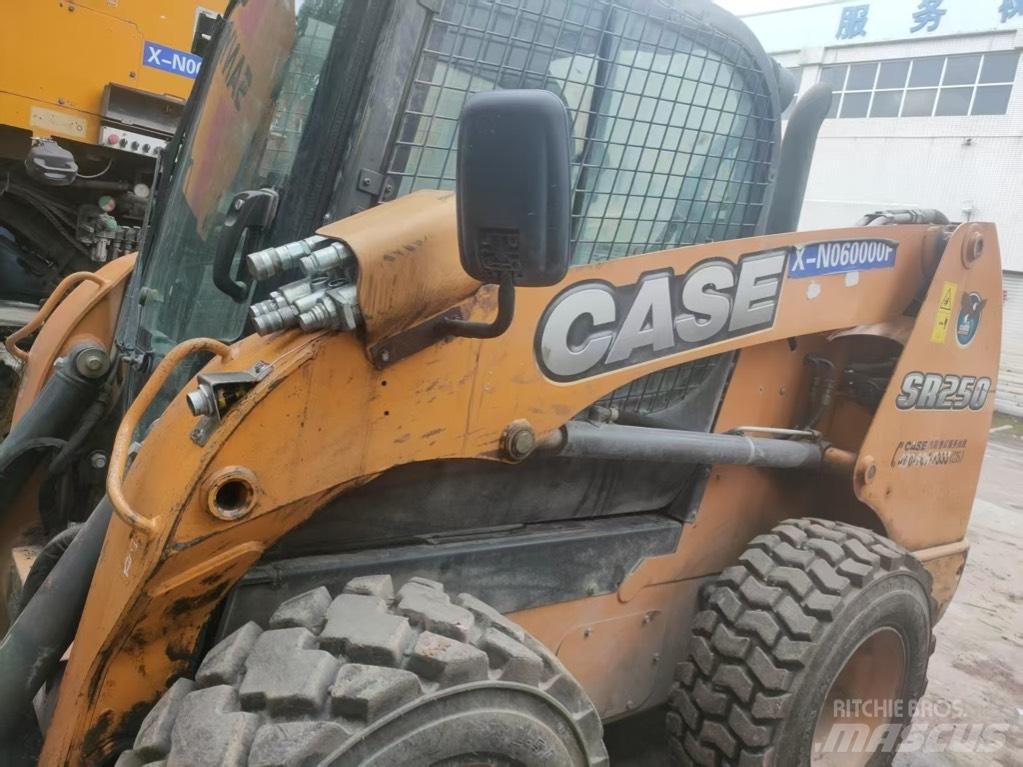

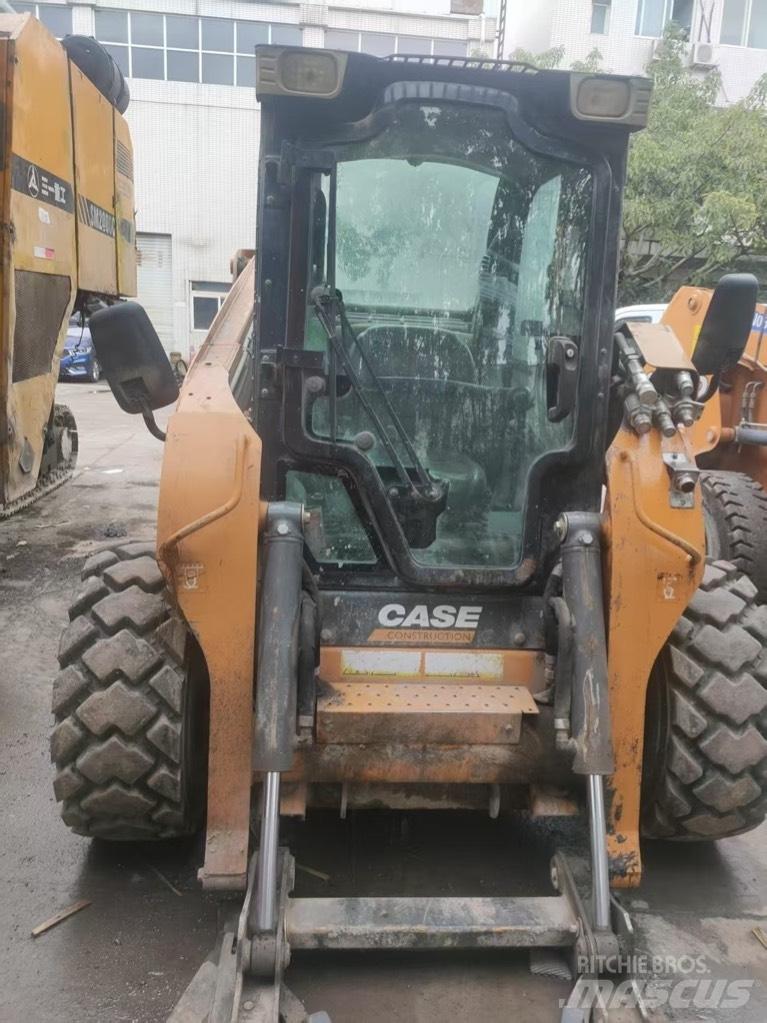

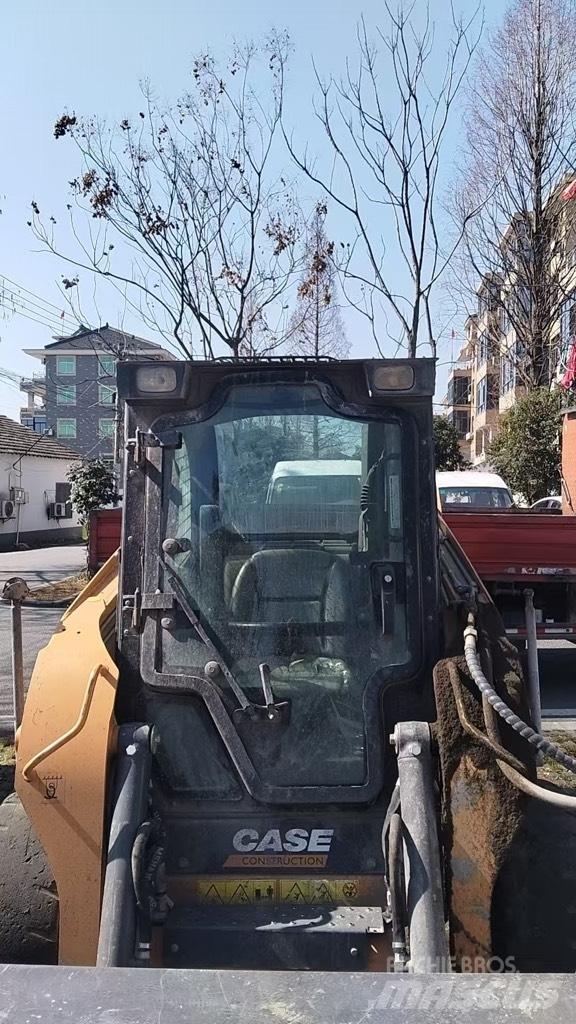

케이스 SR 250

Basic parameters: Rated loading capacity: 1224 kg Overturning load: 2448 kg Whole machine weight: 3662 kg Bucket lifting force: 38.2 kN Lifting force of boom: 27.2 kN Standard bucket capacity: 0.41-0.55 m ³ Engine parameters: Engine model: Case 432T/M3 Type: Diesel Direct Injection Rated power: 90 hp/67 kW/2500 rpm Maximum torque: 340 N · m/1400 rpm Displacement: 3.2 liters Hydraulic system: Rated flow rate of the system: 85 L/min System safety pressure: 21 MPa Transmission system: Maximum driving speed (forward/backward): 7.2 km/h/11.9 km/h Maximum driving speed: 19 km/h Scope of assignment: Maximum unloading height: 2600 mm Unloading distance (at maximum height): 500 mm/520 mm Maximum height of bucket hinge pin: 3200 mm Other parameters: Wheelbase: 1300 mm Minimum ground clearance: 200 mm Tire size: 12 × 16.5 Fuel tank capacity: Fuel tank 96.5 L, hydraulic tank 22.4 L, engine oil 10 L
