케이스 SR 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

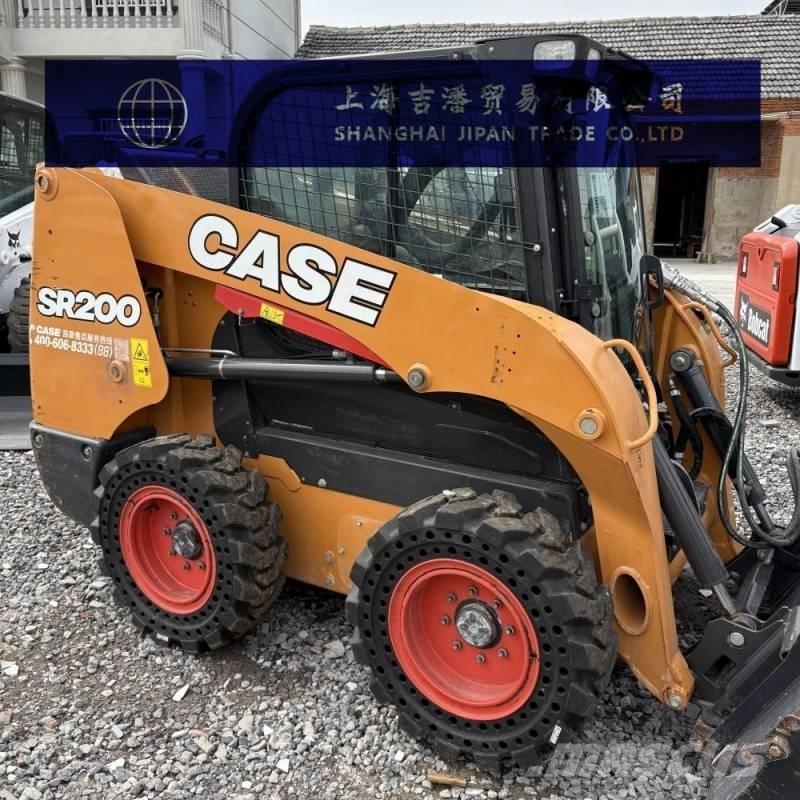

Parameter configuration of Case SR200 skid steer loader Basic performance Rated loading capacity (kg):952 Overturning load (kg)1905 The overall weight of the machine (kg) is 3,212 The form of the lifting mechanism is radial lifting Bucket lifting force (N)31.8 Load capacity (ton):0.8-1 ton Engine Engine model: Case 432T/M3 Rated power (kw/rpm):74/2500 Maximum torque (N.m)275/1400 Displacement (L)3.2 Number of cylinders:4 Through performance Maximum driving speed (km/h):11.6 Tire size:10*16.5 Departure Angle (°):25 Hydraulic system System safety pressure (bar)210 System rated flow rate (L/min):85 Oil capacity Fuel tank (L)75.5 Scope of work Maximum unloading height (mm):2500 Unloading distance (at the maximum height) (mm)520 The maximum height (mm) of the bucket hinge pin is 3120 Overall machine specification Total length (with bucket) (mm):3400 Total length (without accessories) (mm):2670 Full width (tire edge) (mm)1627 Full height (up to the top of the cab) (mm)2000 Wheelbase (mm):1130 Minimum ground clearance (mm):200 Full width (bucket edge) (mm):1829
