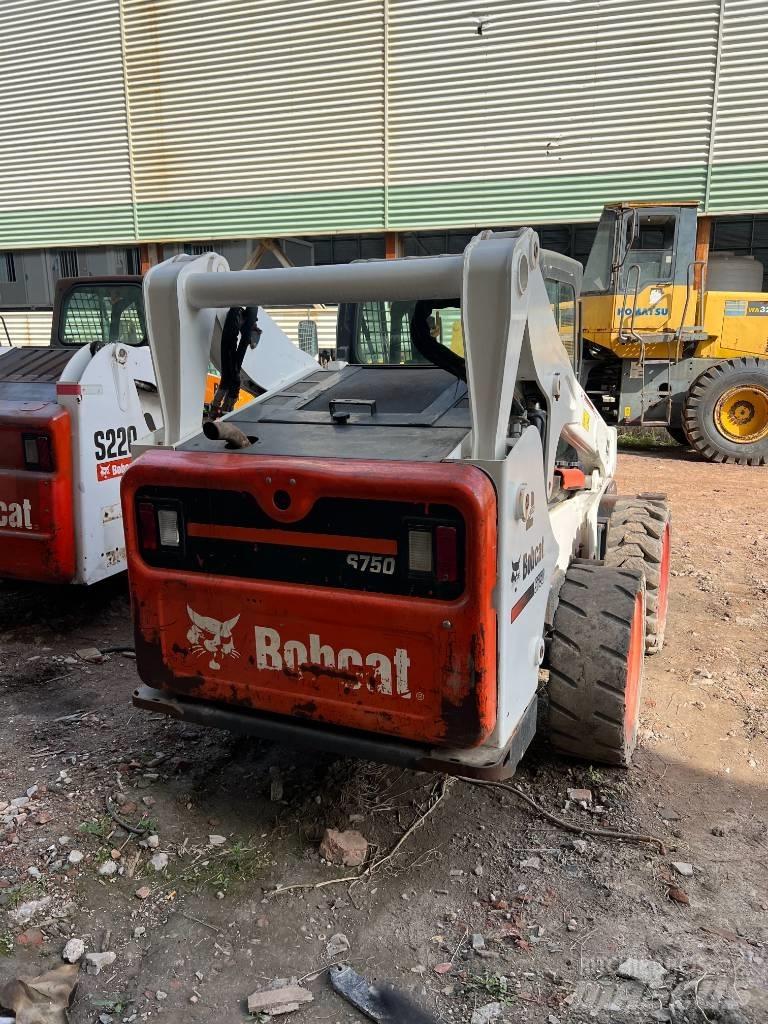

바브캣 S 750

Rated Operating Capacity (ROC): 1,750 lbs (794 kg) at 50% tipping load Operating Weight: 6,775 lbs (3,073 kg) Engine: 1. Basic Parameters Rated Operating Capacity (ROC): 1,750 lbs (794 kg) at 50% tipping load Operating Weight: 6,775 lbs (3,073 kg) Engine: Kubota V2203-M-DI (Tier 4 Final) Power: 74 hp (55 kW) Torque: 195 lb-ft (264 Nm) Fuel Tank Capacity: 22.5 gal (85 L) 2. Performance Data Lift Height: 122 in (3,100 mm) – Vertical Lift Dump Height: 93 in (2,362 mm) Breakout Force: Bucket: 4,050 lbs (1,837 kg) Lift Arm: 3,500 lbs (1,588 kg) Travel Speed: 10 mph (16 km/h) 3. Hydraulic System Flow Rate: 18.5 gpm (70 L/min) System Pressure: 3,100 psi (214 bar) Auxiliary Hydraulics: Standard high-flow (optional) 4. Dimensions Length: 122 in (3,100 mm) Width: 72 in (1,829 mm) Height: 84 in (2,134 mm) (with cab) Ground Clearance: 8.2 in (208 mm)
