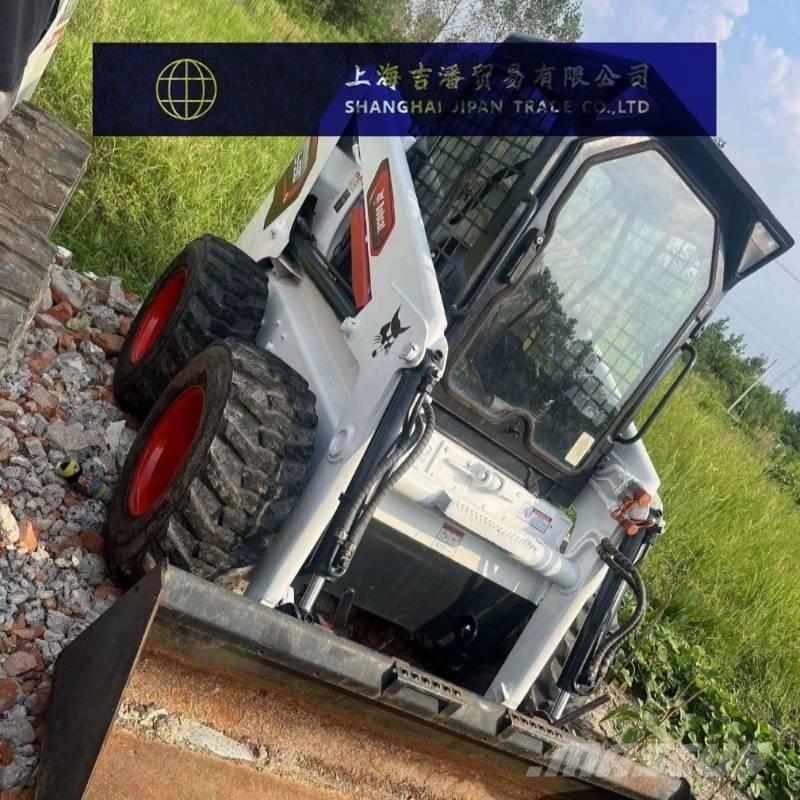

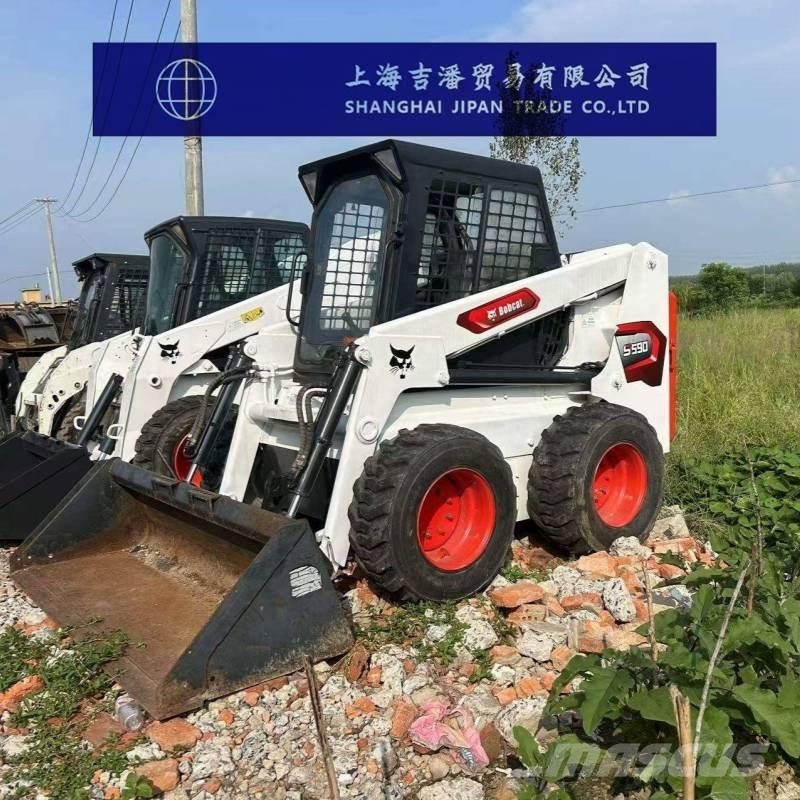

바브캣 S 590

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Basic performance parameters Rated loading capacity:953kg Overall weight:3,069 kg Bucket lifting force:21.28kN Boom lifting force:20.67kN Walking mode: Tire type Tonnage range:0.8-1 ton Engine parameters Engine model:Doosan/D24 (National IV Emission Standard) Type: Water-cooled, turbocharged diesel engine Rated power:50.7kW Maximum torque: 252N·m Total displacement:2.4L Parameters of the hydraulic system Flow rate (at rated speed):64.7L/min High-flow hydraulic volume:101.1L/min Rated working pressure:23.8-24.5MPa Parameters of the transmission system Maximum driving speed (forward/backward):11.2/18.4km/h (single speed/dual speed) Oil quantity parameter Fuel tank capacity:93.7 liters Overall machine size parameters The total length of the machine (including the bucket) is 3378mm The total length of the machine (without accessories) is 2657mm Overall width of the machine (tire edge):1643mm Overall width of the machine (edge of the bucket):1727mm Overall height of the machine:1972mm Wheelbase:1082mm Track: 1374mm Minimum ground clearance:228mm Operation scope parameters Maximum unloading height:2319mm Unloading distance (at maximum height):818mm The maximum height of the bucket hinge pin is 3023mm Forward turning radius (with bucket):2032mm Departure Angle:24.2° The tipping Angle of the bucket on the ground:30° Unloading Angle at the maximum unloading height:42° The maximum turning Angle of the bucket:97°
