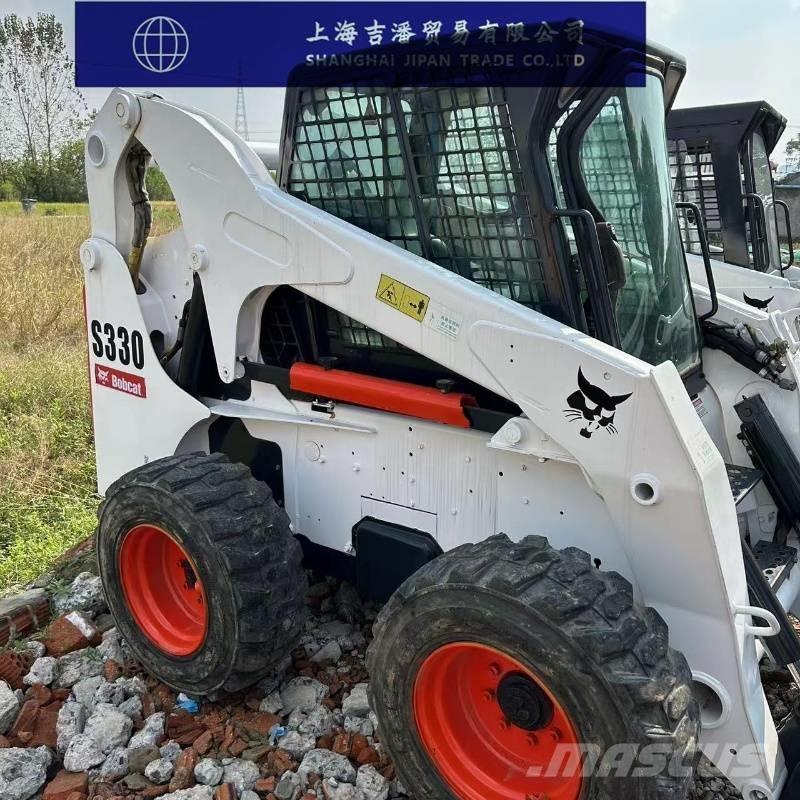

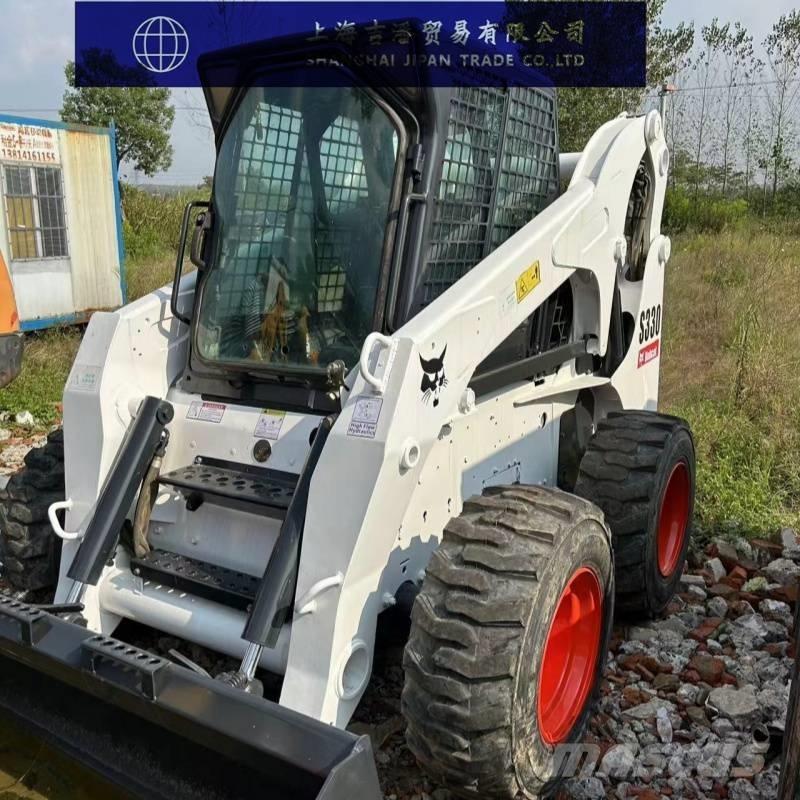

바브캣 S 330

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Performance: Rated operating capacity of 1,524 kg, tipping load of 3,048 kg, overall machine weight of 4,166 kg (standard configuration) / 4,186 kg (high-flow configuration), and vertical lift linkage design. Engine: Equipped with a Kubota V3800-DI-T turbocharged, direct-injection diesel engine. It delivers a rated power of 62.5 kW (85 hp), maximum torque of 305.4 N·m at 1,400 rpm, with a displacement of 3.7 liters and 4 cylinders. Mobility: Maximum travel speed of 11.1 km/h (standard); optional two-speed system offers a speed of 19.3 km/h. Tire size is 14×17.5. Front turning radius (with bucket) is 2,189 mm, and departure angle is 29°. Hydraulic System: System relief pressure of 228 bar. Rated hydraulic flow is 78.4 liters per minute (standard); 151 liters per minute (optional high-flow configuration). Working Range: Maximum dump height of 2,601 mm; dump reach at maximum height of 792 mm. Maximum height of bucket hinge pin is 3,305 mm; dump angle at maximum height is 40.2°. Overall Dimensions: Length without attachment: 2,921 mm; length with bucket: 3,642 mm. Width over tire edges: 1,861 mm; width over bucket edges: 2,032 mm. Height to top of cab: 2,088 mm. Wheelbase: 1,227 mm; track width: 1,511 mm. Minimum ground clearance: 247 mm.
