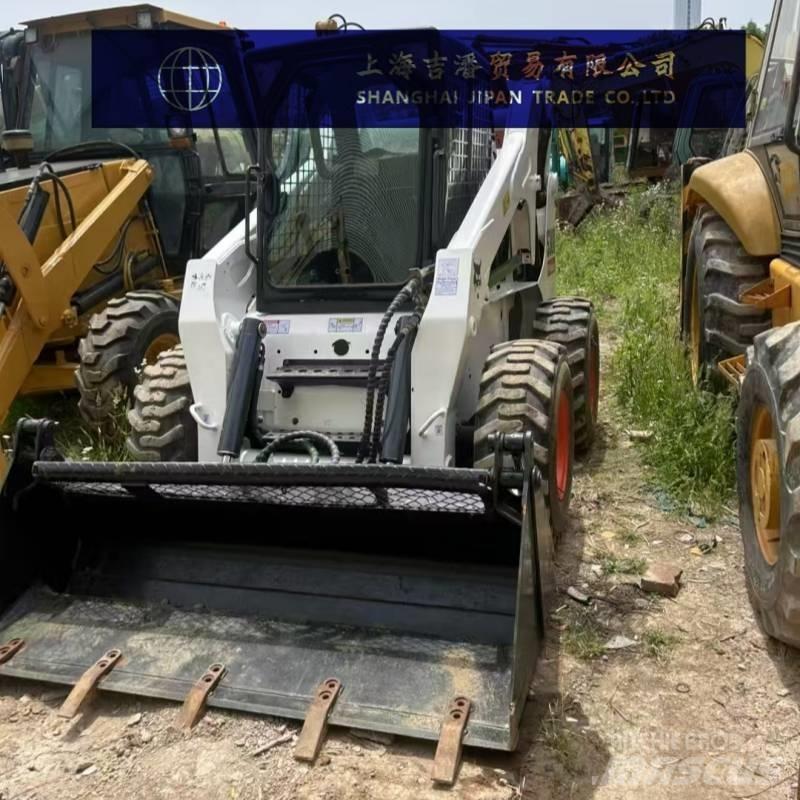

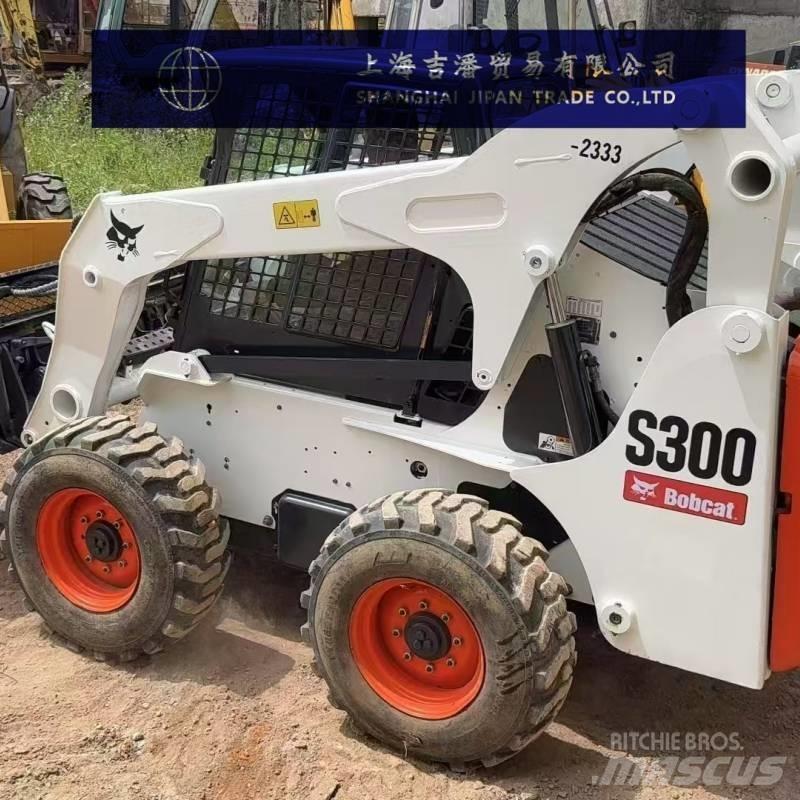

바브캣 S 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Basic performance parameters Rated loading capacity: 1386kg Overturning load: 2772kg Overall weight: 3750kg (standard configuration) /3770kg (high flow configuration) Lifting mechanism form: Vertical lifting Engine parameters Engine model: Kubota V3800-DI-TE3 Engine type: Turbocharged, diesel direct injection Rated power: 60kW (81HP) Maximum torque: 295N·m/1600rpm Displacement: 3.7L Number of cylinders: 4 Through performance parameters Maximum driving speed: 11.1km/h (single speed) /19.1km/h (dual speed optional) Tire size: 12×16.5 Forward turning radius (with bucket) : 2139mm Departure Angle: 26° Hydraulic system parameters System safety pressure: 228bar System rated flow rate: 78.4L/min (standard configuration) /140L/min (high flow configuration, optional) Oil capacity parameters Fuel tank: 87.1L Engine coolant: 16L Crankcase: 13L (oil change volume) Operation scope parameters Maximum unloading height: 2586mm Unloading distance (at the maximum height) : 864mm The maximum height of the bucket hinge pin is 3272mm The unloading Angle at the maximum unloading height: 41.9° The retraction Angle of the bucket at its highest point: 96.1° The retraction Angle of the bucket on the ground: 30° Whole machine specification parameters Total length (without attachments) : 2934mm Total length (with bucket) : 3630mm Full width (tire edge) : 1819mm Full width (edge of the bucket) : 2032mm Total height (up to the top of the cab) : 2055mm Wheelbase: 1227mm Minimum ground clearance: 213mm
