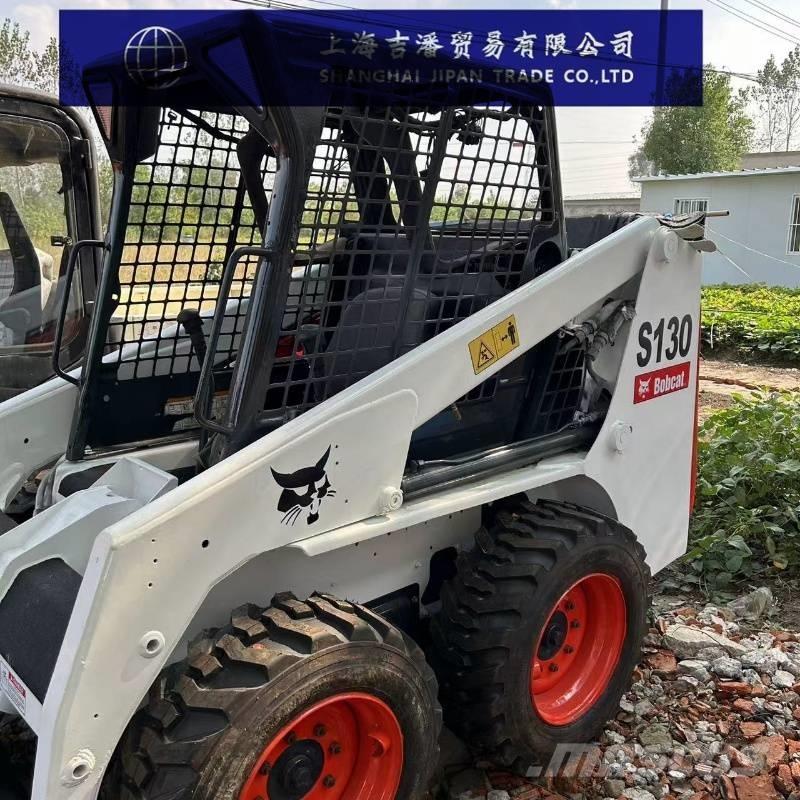

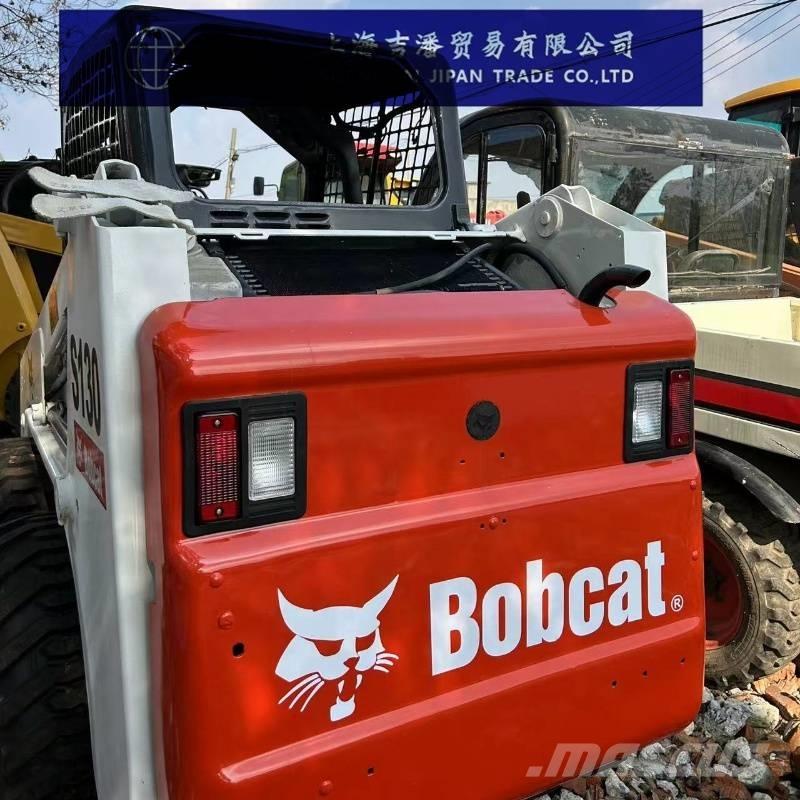

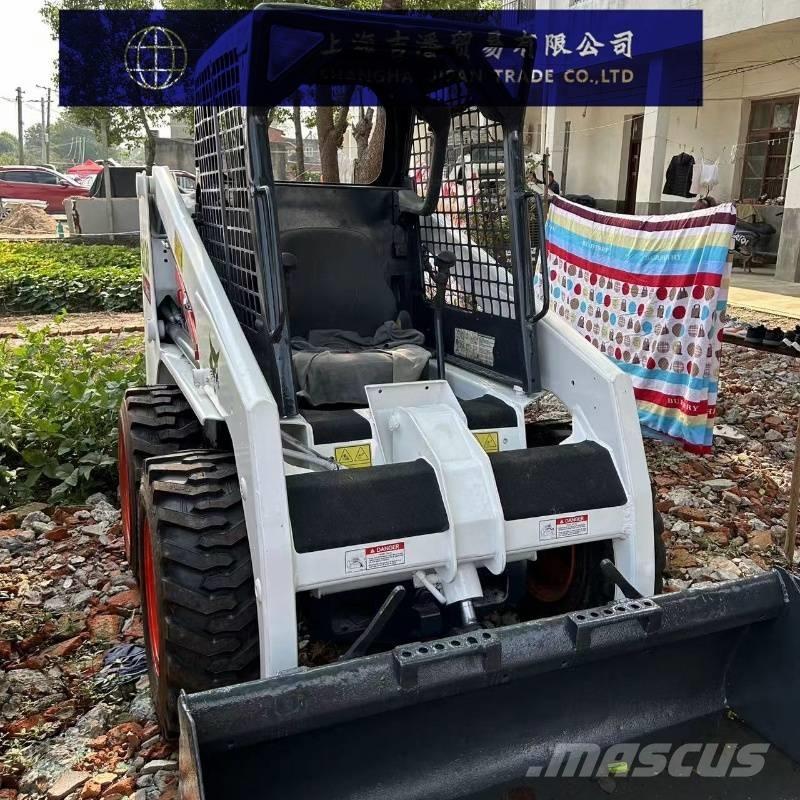

바브캣 S 130

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 17756597429 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Bobcat S130 skid steer loader parameter configuration Basic performance Rated loading capacity (kg) 597 Overturning load (kg) 1195 The weight of the whole machine (kg) is 2465 The lifting mechanism is radial lifting Load (tons) less than 0.8 tons motor Engine modelKubota V2203-M-DI-E2B-BC-3 Rated power (kw/rpm) 34.3/2400 Maximum torque (N.m) 150 Displacement (L) 2.2 Number of cylinders 4 Through performance Maximum travel speed (km/h) 11.8 Tire size 10×16.5 Front turning radius (with bucket) (mm) 1745 Departure angle (°) 23 Hydraulic system System safety pressure (bar) 182.7–189.6 The rated flow rate of the system (L/min) is 64 Oil capacity Fuel tank (L) 50.3 Scope of work Maximum unloading height (mm) 2100 Unloading distance (at maximum height) (mm) 575 Maximum height of bucket hinge pin (mm) 2781 Discharge angle at maximum unloading height (°) 40 The bucket retraction angle on the ground (°) 25 The bucket retraction angle (°) at the highest point is 96 Specifications of the whole machine Overall length (with bucket) (mm) 3152 Total length (without attachments) (mm) 2432 Full width (tire edge) (mm) 1365 Full height (to the top of the cab) (mm) 1964 Wheelbase (mm) 900 Full width (bucket edge) (mm) 1398
