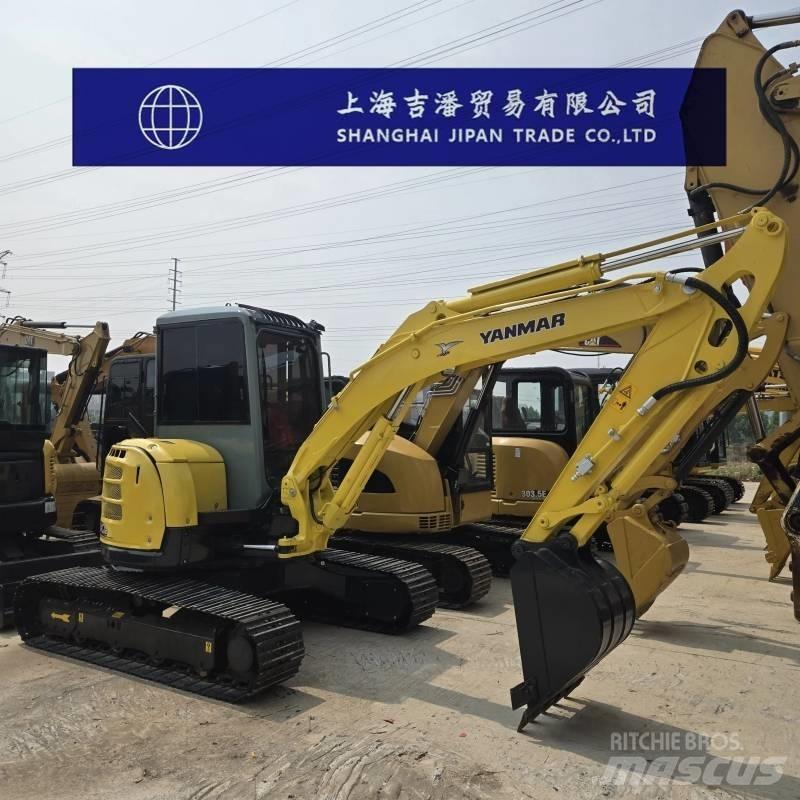

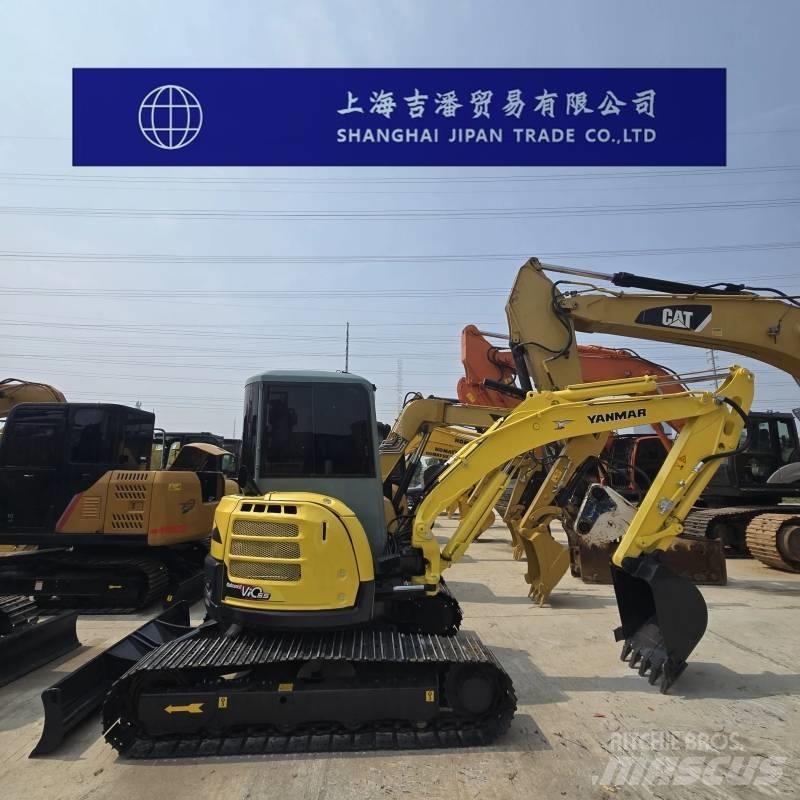

얀마 Vio 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

洋马Vio55挖掘机参数配置 规格 整机工作重量(kg)5320 铲斗容量(m³)0.16 原产地日本福冈 吨位(吨)5 厂商合资/进口 动力传统动力 铲斗反铲 厂商合资/进口 动力传统动力 性能 回转速度(rpm)10 行走速度(km/h)4.4/2.3 接地比压(Kpa)28.8 铲斗挖掘力(kN)33.8 斗杆挖掘力(kN)22.5 动力系统 发动机型号洋马Yanmar 4TNV88-PBVB 额定功率(kw/rpm)28.8/2400 冷却方式水冷 工作形式水冷型直接喷射式柴油机 液压系统 主溢流设定压力(Mpa)24.5 主泵最大流量(l/min)40.3×2+40.3+11.7 液压破碎管路是否标配否 油类容量 燃油箱(L)64 主体尺寸 运输总长度(mm)5560 运输总宽度(mm)1990 运输总高度(mm)2620 驾驶室全高(mm)2620 履带总长度(mm)2620 履带板宽度(mm)400（橡胶或钢制） 最小离地间隙(mm )360 前段工作装置最小回转半径(mm)2320 后端回转半径(mm )995 作业范围 最大挖掘半径(mm)4160 最大挖掘深度(mm)3980 最大挖掘高度(mm)6440 最大卸载高度(mm)4400 最大垂直挖掘深度(mm)2900 动臂回转角度(左/右°)70/70 推土板宽度×高度(mm)1970×400
