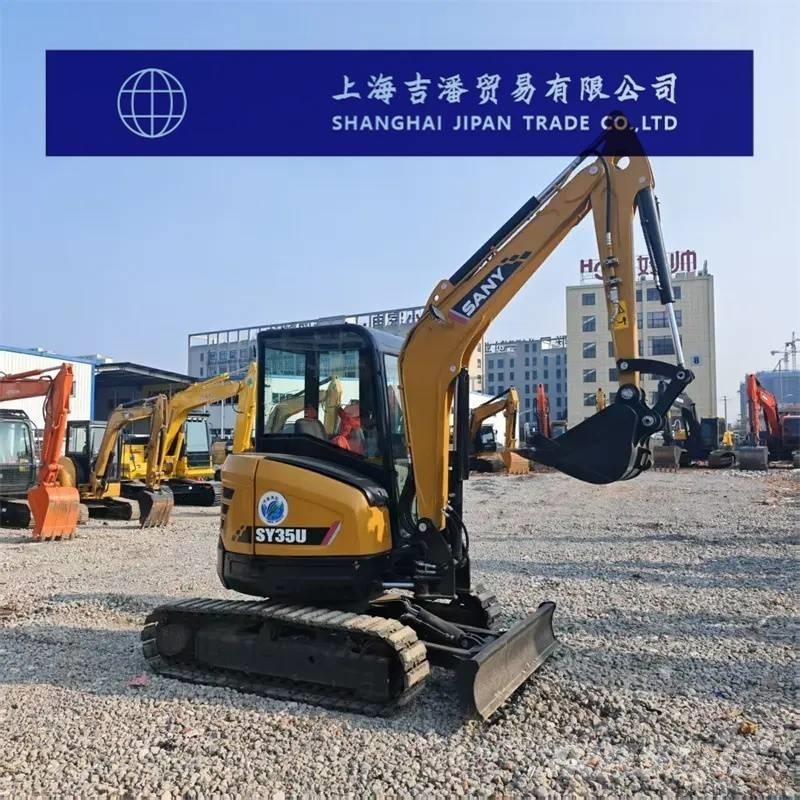

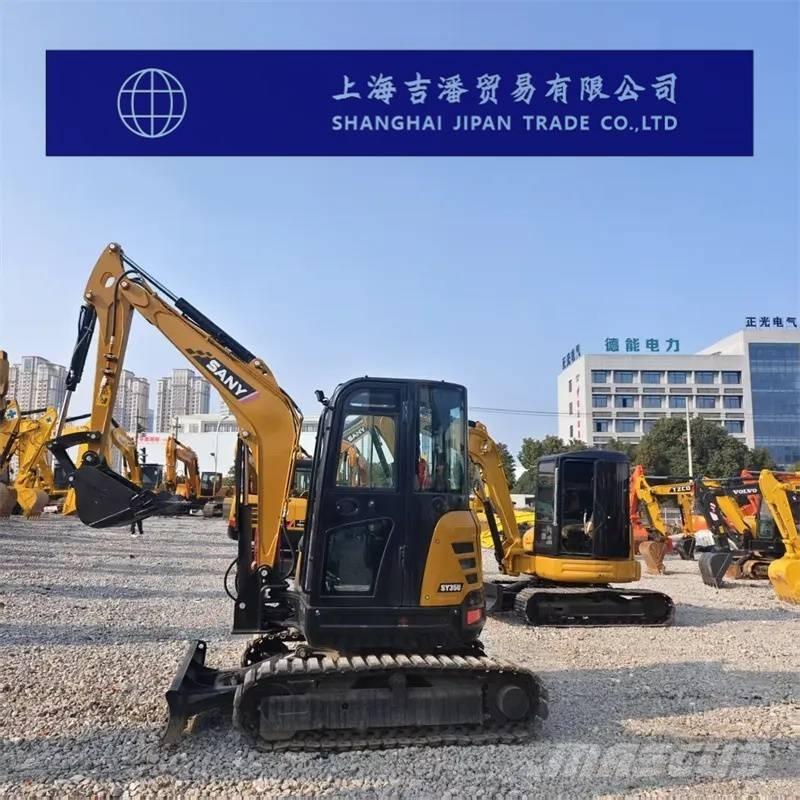

새니 SY 35 U
부가세 제외가격
출력
INFO
제품군
소형 굴삭기 7톤 미만
제작사/모델
새니 SY 35 U
제작년도
2023
사용시간
842 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
7F54FFC5
가격
화폐 선택
세부정보
재고번호
1
제조번호
1
동력 형식
디젤
최근검사
2025-10-16
기존 차주 수
1

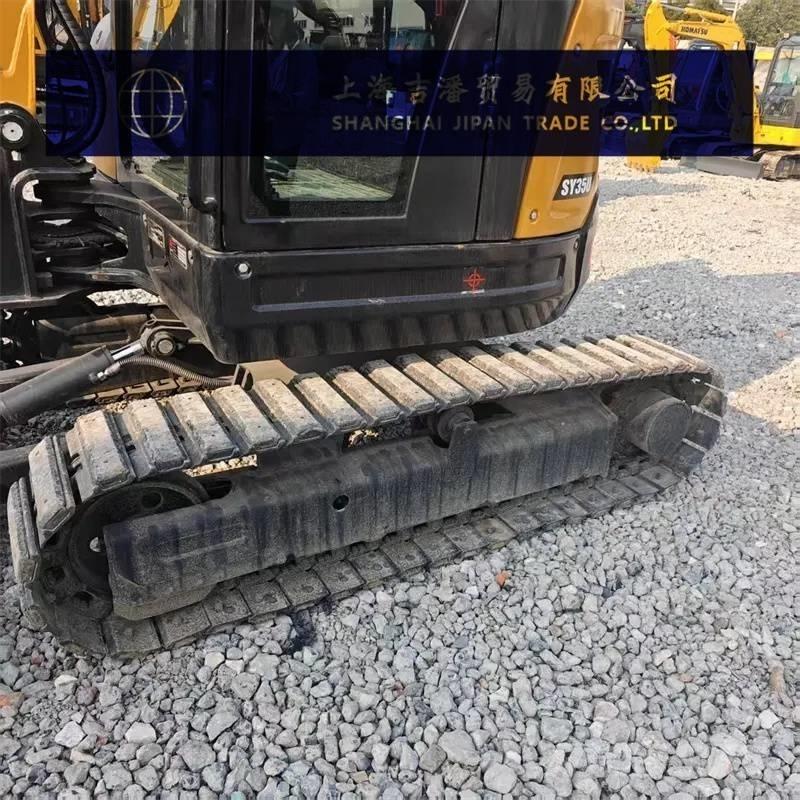

하부 구성품 상태
good condition
총 중량
3780 kg
등록번호
1
매연 등급
Stage V / Tier V
트랙 폭
300 mm
버켓 용량
0.15 m3
장비크기
4915 x 1720 x 2515 mm
오리지널 컬러
Yellow
엔진
Diesel
엔진 출력
20.4 kW (27.7 마력)
엔진 제조사
Yanmar
타이어 브랜드
Original
상태 정보/보증
1 year
제품 국가
중국
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 13696501072
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
부속품
냉/난방 조절
퀵 커플러
고무트랙
Engine pre-filter
스켈레톤 버킷
회전 비컨
추가 장비
조이스틱 컨트롤
표준 굴착 버켓
기타 정보
SANY SY35U excavator parameter configuration
specification
Power: Traditional power
Manufacturer domestic
Bucket backhoe
Tonnage (tons) 3
The working weight of the whole machine (kg) is 3780
Bucket Capacity (m³) 0.06-0.15 (0.12)
performance
Rotational speed (rpm) 9
Travel speed (km/h) 4.4/2.4
Climbing ability (%) 58
Grounding specific pressure (Kpa) 32
Bucket digging force (kN) 30.4
Stick digging force (kN) 18.2
dynamical system
Engine model: Yanmar 3TNV88 Stages3A EPA int4
Rated power (kw/rpm) 20.4/2200
Maximum torque (N.m) 107/1300
Displacement (L) 1.642
Cooling method: Water cooling
Oil capacity
Fuel tank (L) 40
Hydraulic Tank (L) 40
Engine oil change volume (L) 6
Body size
Total length of transport (mm) 4915
Total width of transport (mm) 1720
Total height of transport (mm) 2515
Track grounding length (mm) 1670
Total track length (mm) 2155
Track shoe width (mm) 300
Track gauge (mm) 1420
Minimum ground clearance (mm) 295
Rear end slewing radius (mm) 860
Number of support wheels (one side) (pcs) 1
Number of support wheels (unilateral) (units) 4
Scope of work
Maximum digging radius (mm) 5465
Maximum digging depth (mm) 3105
Maximum digging height (mm) 4855
Maximum unloading height (mm) 3460
Maximum vertical digging depth (mm) 2700
Dozer shovel lifting or pushing depth (mm) 375/370
