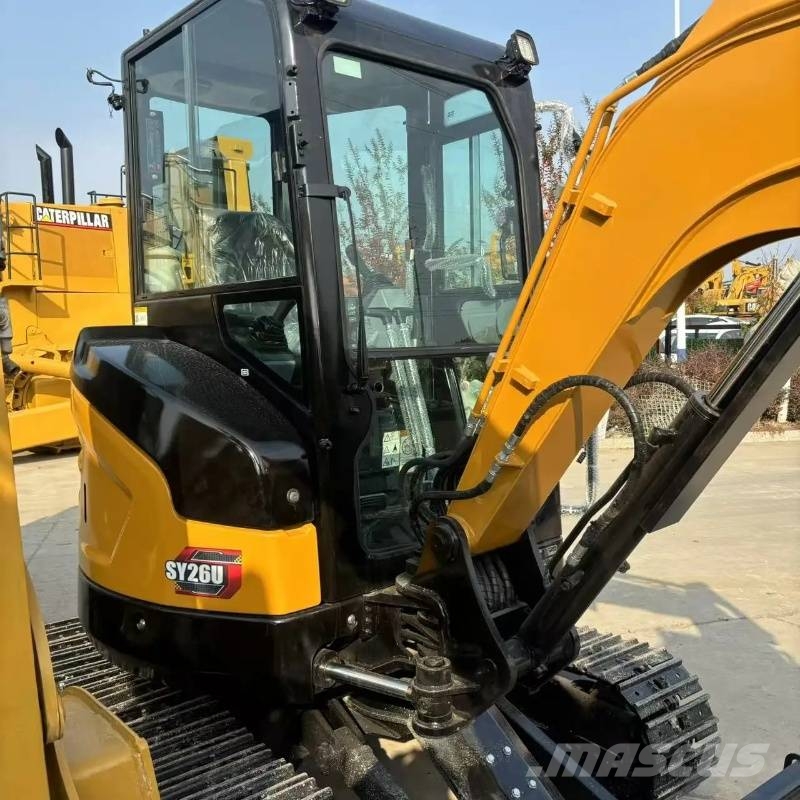

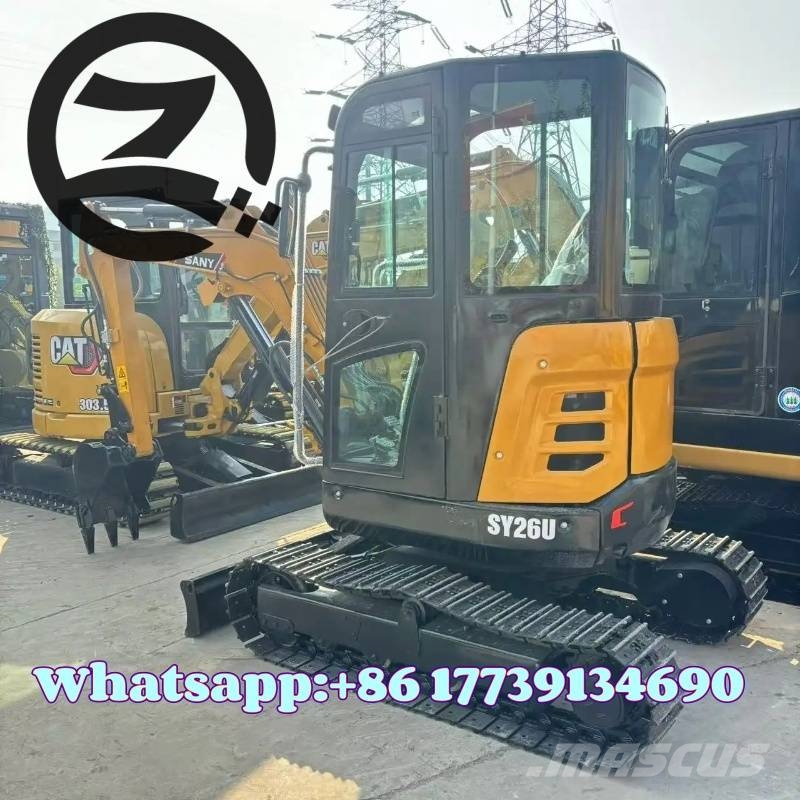

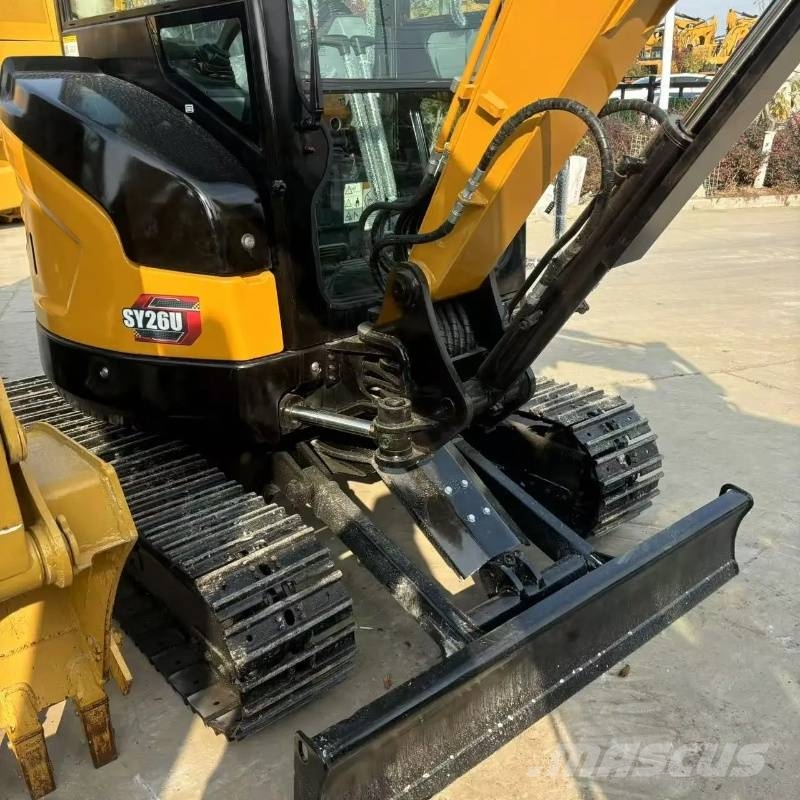

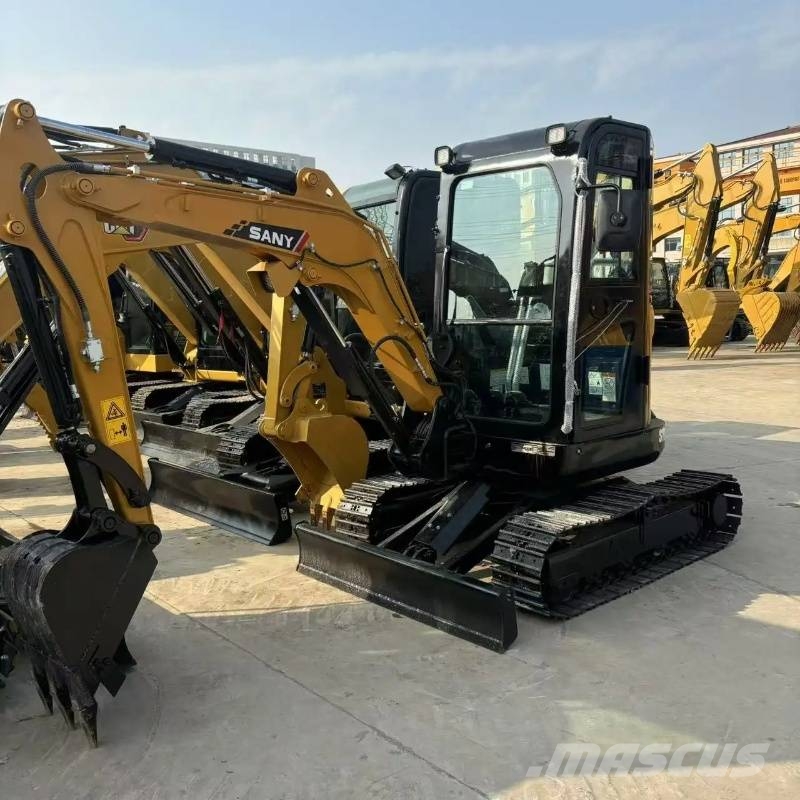

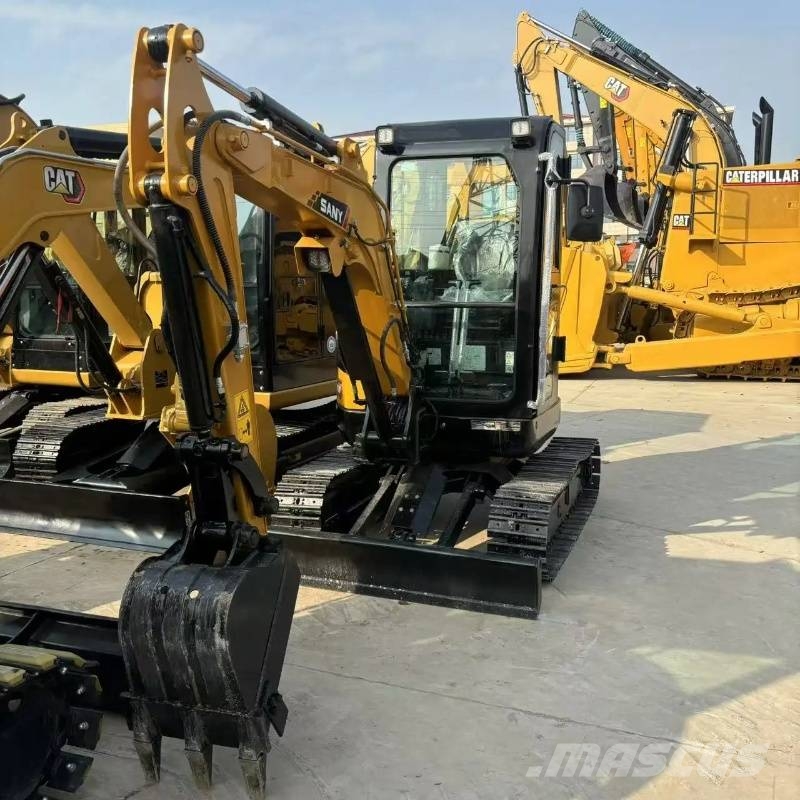

새니 SY 26 U

# SANY SY26U Crawler Excavator Specifications Model: SANY SY26U Operating Weight: 2660 kg Bucket Capacity: 0.07 m³ Transport Dimensions (L×W×H): 4285 × 1550 × 2430 mm Track Shoe Width: 300 mm Travel Speed (High/Low): 4.5 / 2.6 km/h Swing Speed: 10 rpm Bucket Digging Force: 27.9 kN Arm Digging Force: 14.2 kN Max Digging Depth: 2810 mm Max Digging Radius: 4850 mm Max Dumping Height: 3120 mm Max Digging Height: 4350 mm Ground Clearance: 220 mm Ground Pressure: 25.6 kPa Engine Engine Model: Yanmar 3TNV80F Rated Power: 14.6 kW / 2400 rpm Displacement: 1.267 L Cylinders: 3-cylinder, water-cooled, turbocharged Fuel Tank Capacity: 34 L Hydraulic System Main Pump: Variable piston pump ×1 Relief Pressure: 24.5 MPa Swing Motor: Fixed piston motor Travel Motor: Variable piston motor ×2
