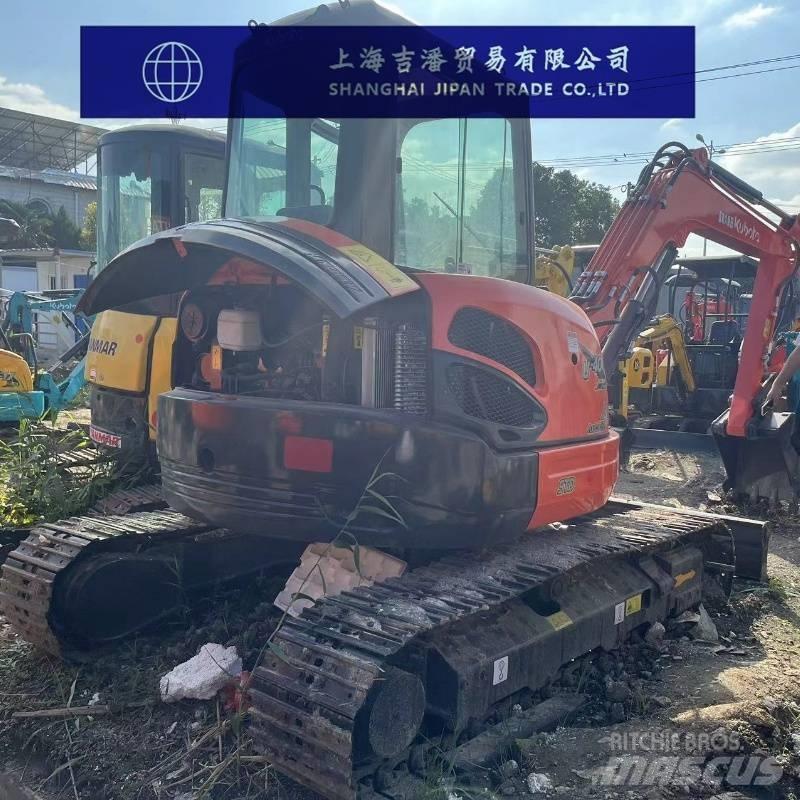

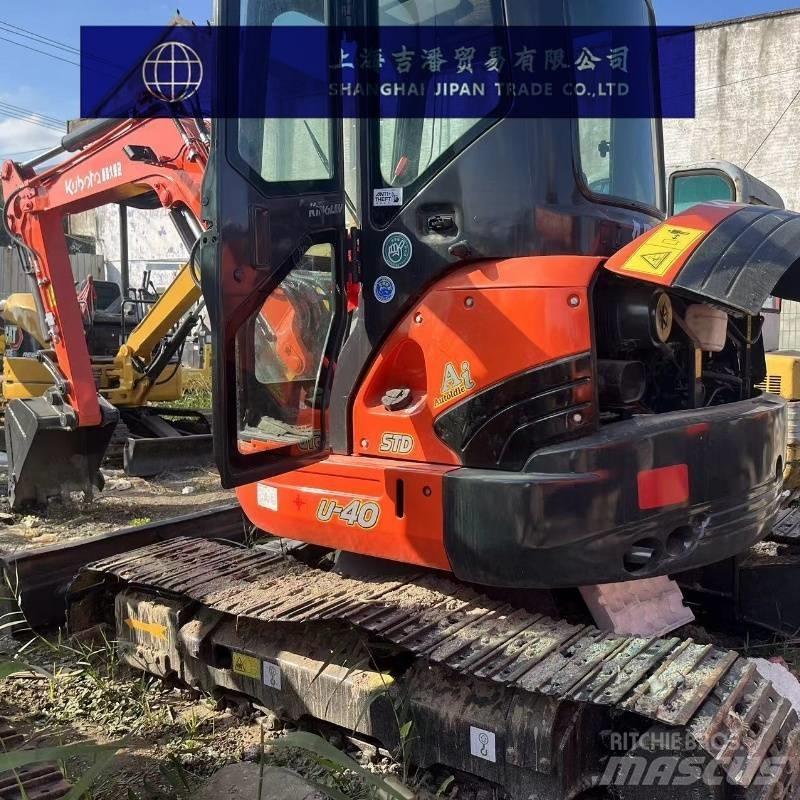

구보다 U 40

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Kubota U-40 excavator Specification Bucket capacity (m³) : 0.14m ³ The length of the bucket pole (mm) is 600/550mm The working weight of the entire machine (kg) is 4,440 [4,510] kg Tonnage (tons)4 Joint venture/import by manufacturers Power, traditional power Bucket backhoe Joint venture/import by manufacturers Power, traditional power Performance Walking speed (km/h) : 2.8/4.9km/h Climbing ability (%)30° Bucket digging force (kN)33.0kN (3,360kgf) Power system Working form: V2607-DI-E3-BH-2 Rated power (kw/rpm)31.2kW (42.4PS) /2,200rpm Displacement (L)2.615L (2,615cc) Engine model: ボタ Water-cooled 4-cylinder vertical V2607-DI Oil capacity Fuel tank (L) : 68L Main body size The total length of the track (mm) is 2,500mm Minimum ground clearance (mm) : 310mm The rear end rotation radius (mm) is 990mm The minimum turning radius (mm) of the front-end working device is 2,390mm (1,960mm) Total transportation length (mm) : 5,315mm Total transportation width (mm) : 1,960mm The total transportation height (mm) is 2,490 [2,540] mm Scope of work The maximum vertical excavation depth (mm) is 2,665mm Maximum unloading height (mm) : 3,800mm The maximum excavation height (mm) is 5,465mm Maximum excavation depth (mm) : 3,385mm Maximum excavation radius (mm) : 5,850mm Width × height (mm) of the push plate: 1,960mmx405mm The boom offset (left/right °) is 815mm/610mm
