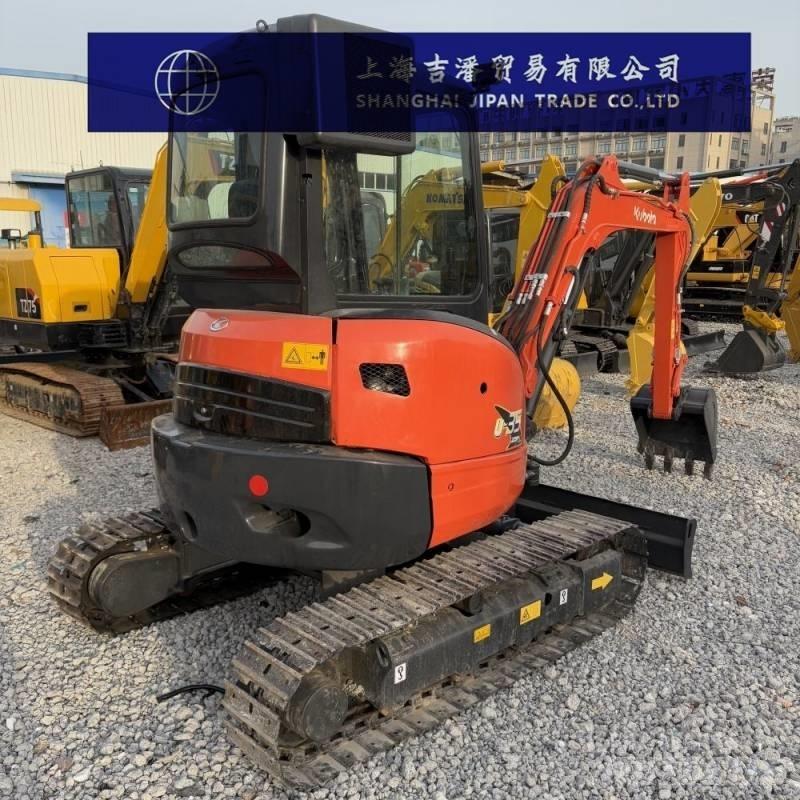

구보다 U 35

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power, traditional power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)3 The overall working weight of the machine (kg) is 3867 Bucket width (mm) : 600/550 Bucket capacity (m³)0.1 Performance Rotational speed (rpm)9 Walking speed (km/h) 3.0/4.6 Climbing ability (%)30° The bucket digging force (kN) is 29.5 Power system Engine model D1703-E4 Rated power (kw/rpm)18.5/2200 Displacement (L) : 1.647 Hydraulic system The main pump type is variable pump * 2+ gear pump * 2 The type of walking hydraulic motor is a 2-speed piston hydraulic motor Rotary hydraulic motor type plunger hydraulic motor Oil capacity Fuel tank (L)45.1 Main body size Total transportation length (mm) : 4754 Total transportation width (mm)1700 Total transportation height (mm) : 2476 Total track length (mm) : 2081 Track plate width (mm)300 Minimum ground clearance (mm)287 The minimum turning radius (mm) of the front-end working device is
