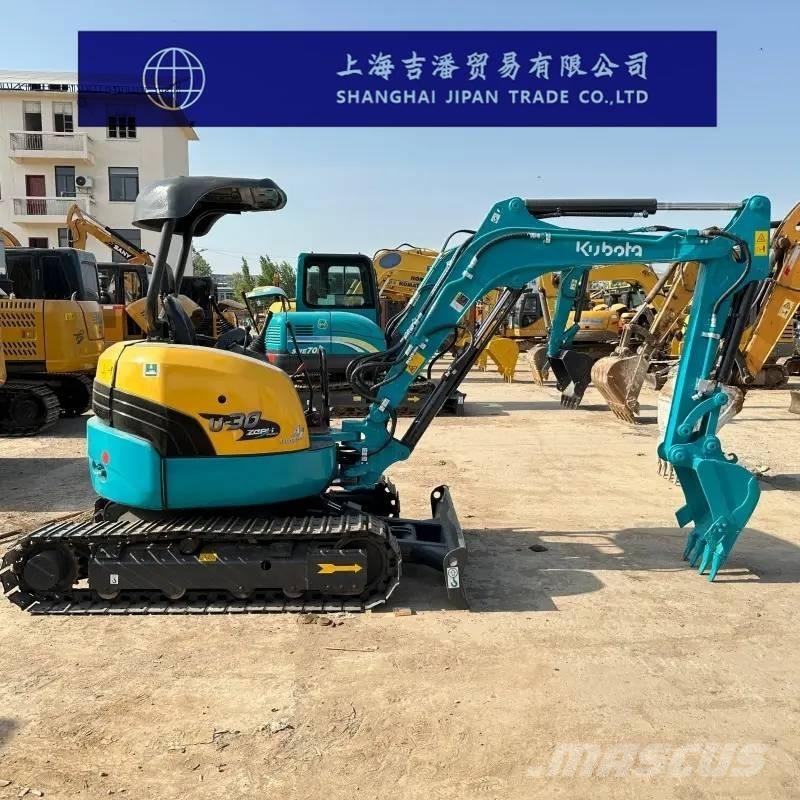

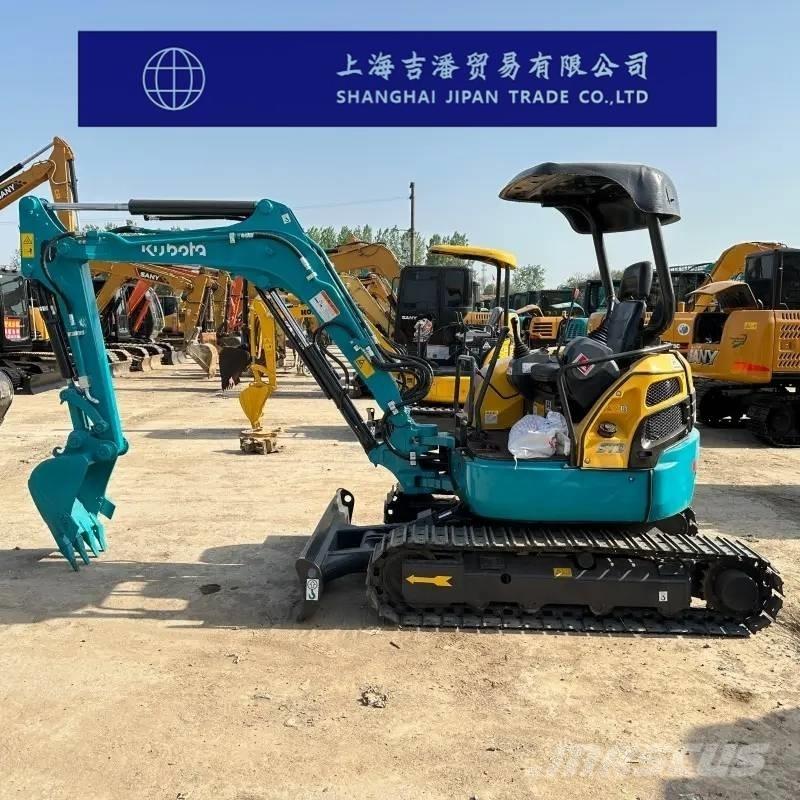

구보다 U 30

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameters The overall working weight of the machine is 3648kg Bucket capacity:0.08m³ Bucket width:520/470mm Tonnage:3 tons Engine parameters Engine model:D1703-E4 Rated power:18.5kW/2200rpm Displacement:1.647L Performance parameters Rotational speed: 9rpm Walking speed:3.0/4.6km/h Climbing ability:30° Bucket digging force:29.5kN Hydraulic system parameters Main pump type:2 variable pumps + 2 gear pumps Walking hydraulic motor type:2-speed plunger hydraulic motor Rotary hydraulic motor type: Plunger hydraulic motor Oil capacity Fuel tank:45.1L Main body size parameters Total transportation length:4,573mm Total transportation width:1550mm Total transportation height:2482mm Total track length:2081mm Track plate width:300mm Minimum ground clearance:287mm Minimum turning radius of the front working device: 2164mm Rear end turning radius:900mm Operation scope parameters Maximum excavation radius:4,951mm Maximum excavation depth:2825mm Maximum excavation height:4,558mm Maximum unloading height:3141mm Maximum vertical excavation depth:1988mm The width × height of the bulldozer board is 1550×341mm Bulldozer lift or depth push:366/375mm
