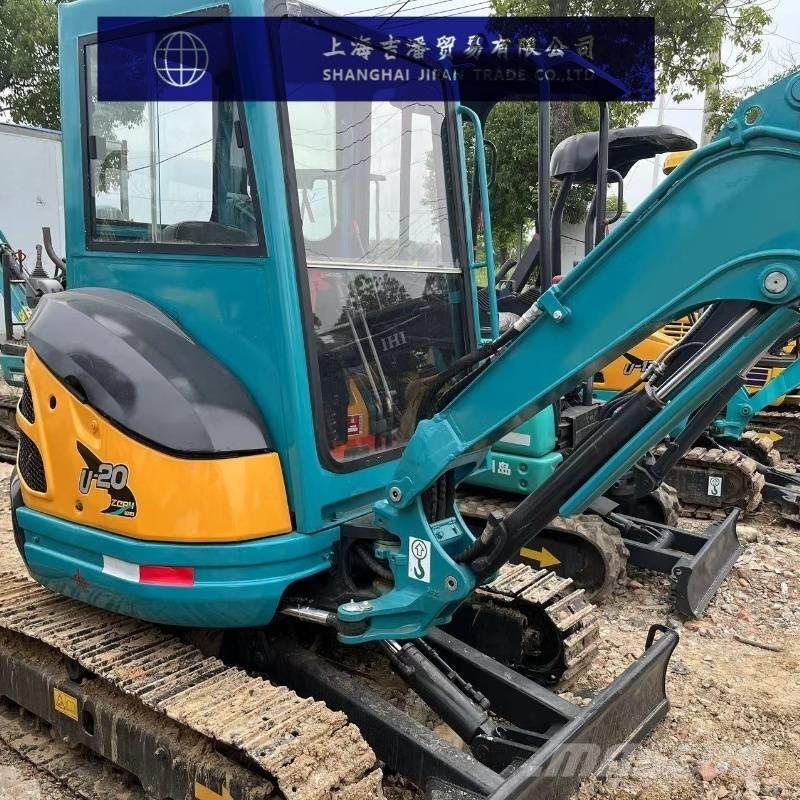

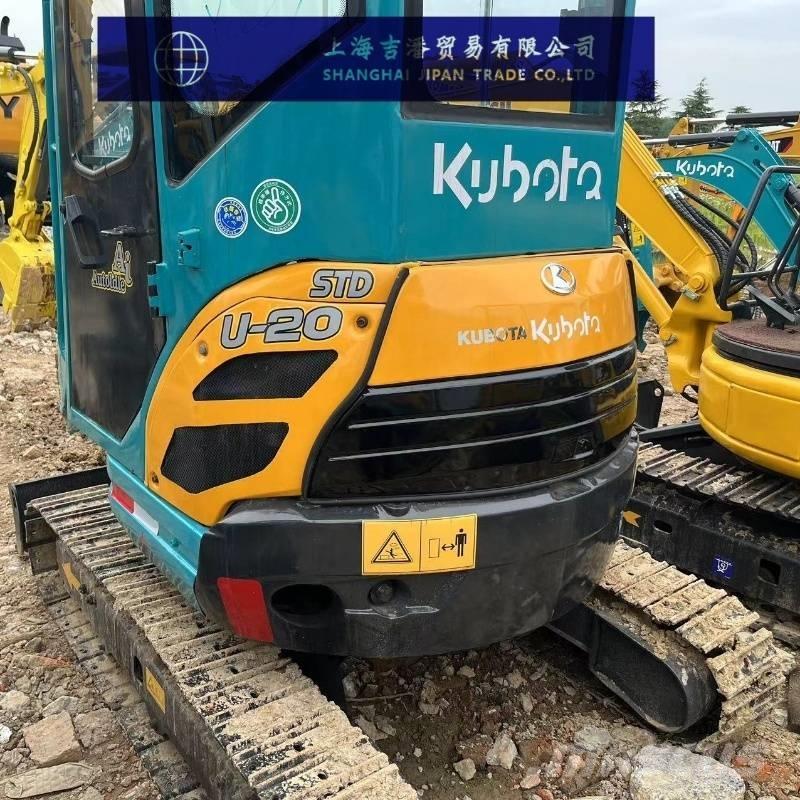

구보다 U 20

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Item Parameter Bucket Capacity 0.054 cubic meters Standard Bucket Width (with/without side teeth) 450/400 mm Operating Weight 2365 kg Overall Length of Machine 3850 mm Overall Height of Machine 2380 mm Overall Width of Machine 1300/1500 mm Minimum Ground Clearance 170 mm Engine Model D1105-E4 Total Displacement 1123 ml Rated Output Power 19 PS (14 kW) / 2200 rpm Maximum Digging Height 3880 mm Maximum Dumping Height 2550 mm Maximum Digging Depth 2320 mm Maximum Vertical Digging Depth 1900 mm Maximum Digging Radius 4140 mm Boom Offset (Left/Right) 620/590 mm Minimum Front Swing Radius (when swinging) 1850 (1430) mm Minimum Rear Swing Radius 710 mm Maximum Digging Force (Bucket) 18.4 kN (1880 kgf) Track Type Steel Track Track Width 250 mm Total Track Length 1860 mm Wheelbase 1475 mm Track Center Distance 1050/1250 mm Travel Speed (Low/High) 2.1/4.0 km/h Climbing Ability 30 degrees Swing Speed 9.6 rpm Dozer Blade (Width) 1300/1500 mm Dozer Blade (Height) 292 mm Dozer Blade Lifting Distance (Above/Below GL) 340/270 mm Hydraulic Pump Type Variable Displacement Pump *2 + Gear Pump *2 Swing Motor Type Gerotor Motor Travel Motor Type 2-Speed Piston Hydraulic Motor Fuel Tank Capacity 28 liters
