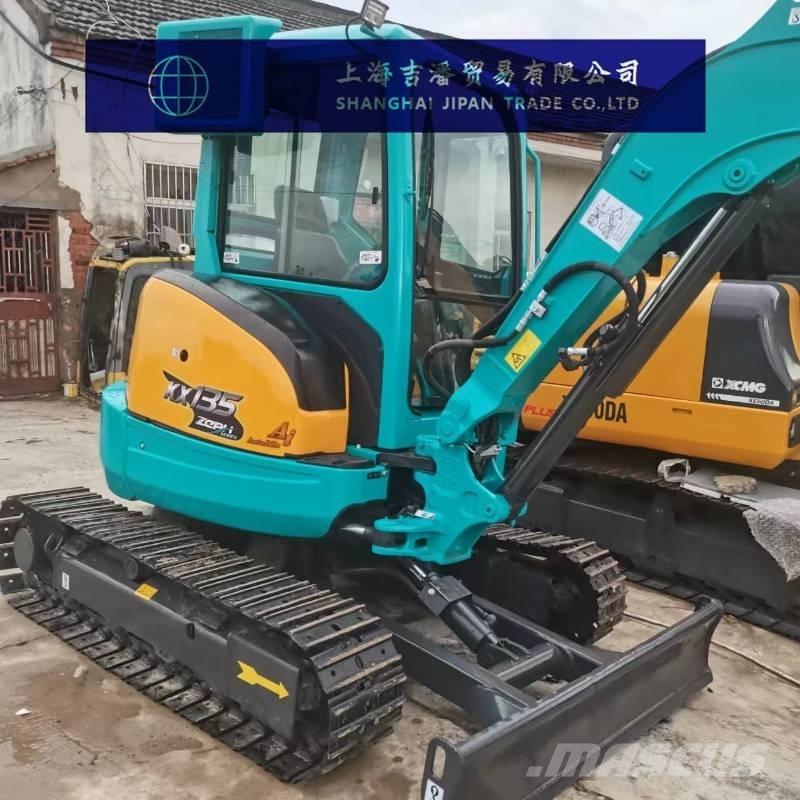

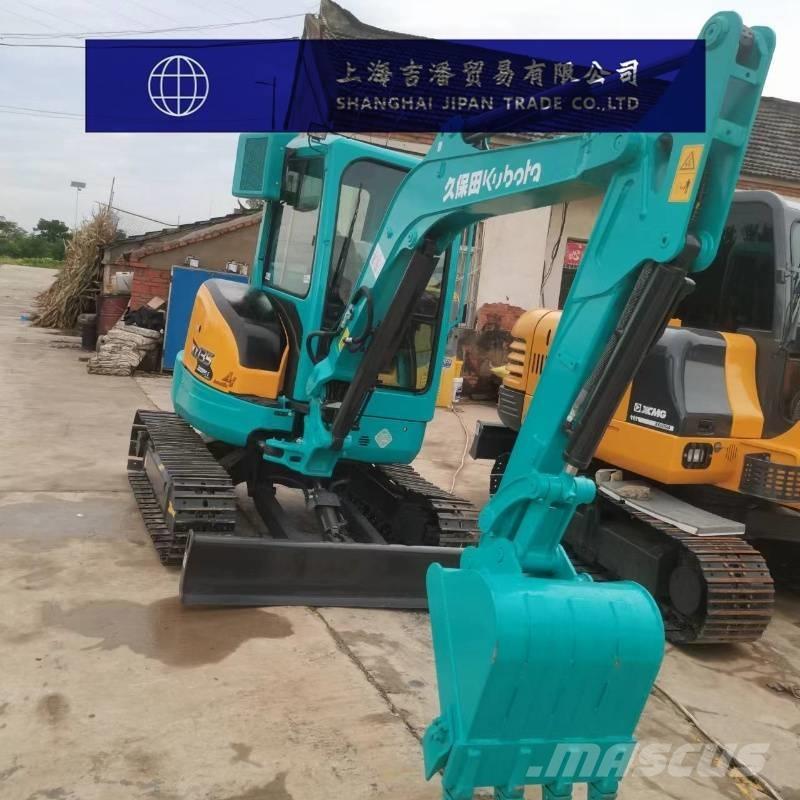

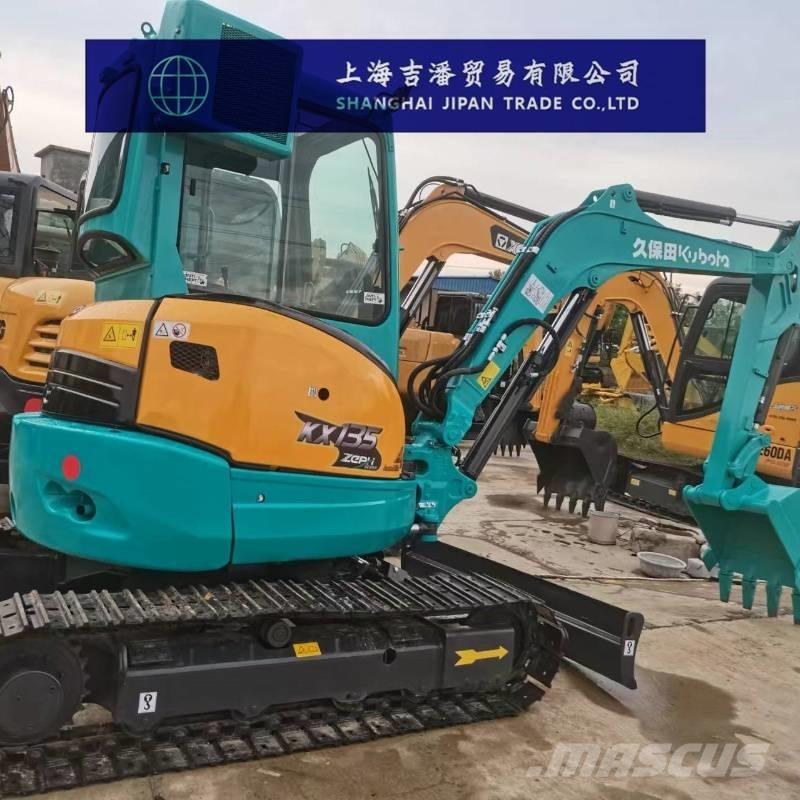

구보다 KX 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Operating Weight: 3515-3590kg. Bucket Capacity: 0.11m³. Machine Dimensions (During Transportation): Total length 4665mm, total width 1700mm, total height 2440mm. Minimum Ground Clearance: 290mm. Power System Engine Model: D1703-E2. Total Displacement: 1.647L. Rated Output Power: 28.6PS (21.0kW) / 2250rpm. Excavation Performance Maximum Digging Height: 4730mm. Maximum Dumping Height: 3320mm. Maximum Digging Depth: 3135mm. Maximum Vertical Digging Depth: 2510mm. Maximum Digging Radius: 5265mm. Boom Offset (Left/Right): 600/635mm. Minimum Front Swing Radius (When Swinging): 1960 (1570) mm. Minimum Rear Swing Radius: 850mm. Maximum Digging Force (Bucket): 27.6 (2810) KN. Travel Section Track Type: Steel track. Track Width: 300mm. Total Track Length: 2100mm. Wheelbase: 1665mm. Track Gauge: 1400mm. Travel Speed (Low/High): 3.0/4.6km/h. Climbing Capacity: 30°. Swing Speed: 8.9 rpm. Hydraulic System Hydraulic Pump Type: Variable displacement pump × 2 + Gear pump × 1. Swing Motor Type: Piston hydraulic motor. Travel Motor Type: 2-speed piston hydraulic motor. Other Parameters Dozer Blade (Width): 1700mm. Dozer Blade (Height): 335mm. Lifting Distance (Above/Below Ground Level): 370/370mm. Fuel Tank Capacity: 40L. Standard Bucket Width: With/Without Side Teeth: 600/550mm.
