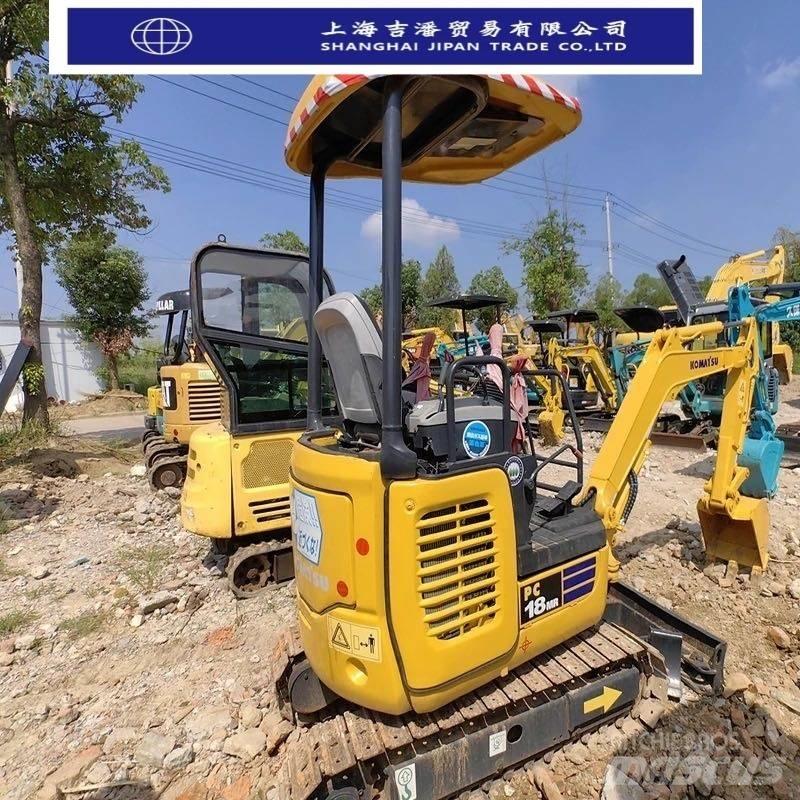

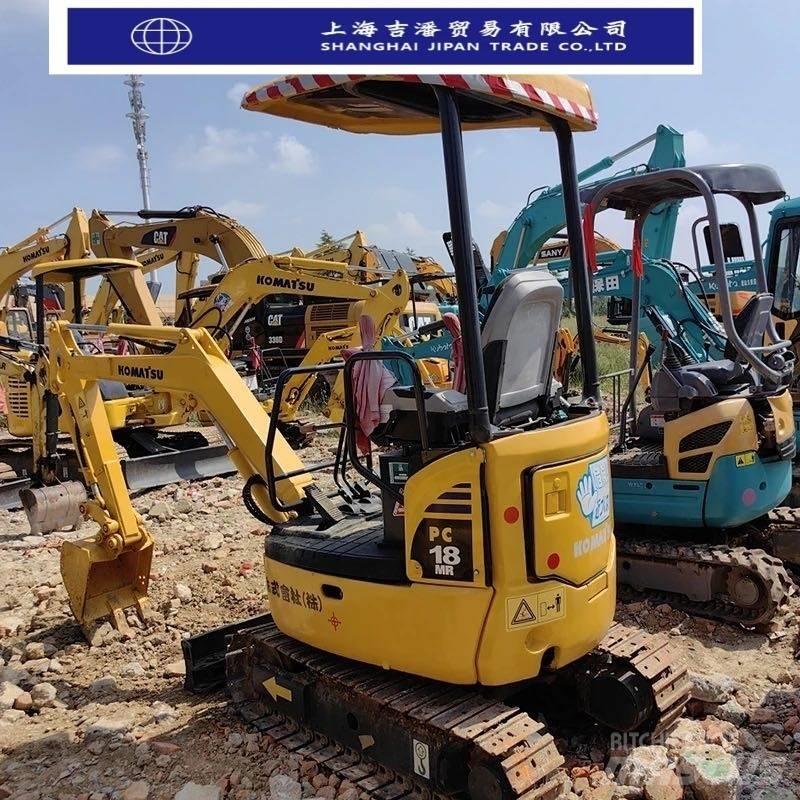

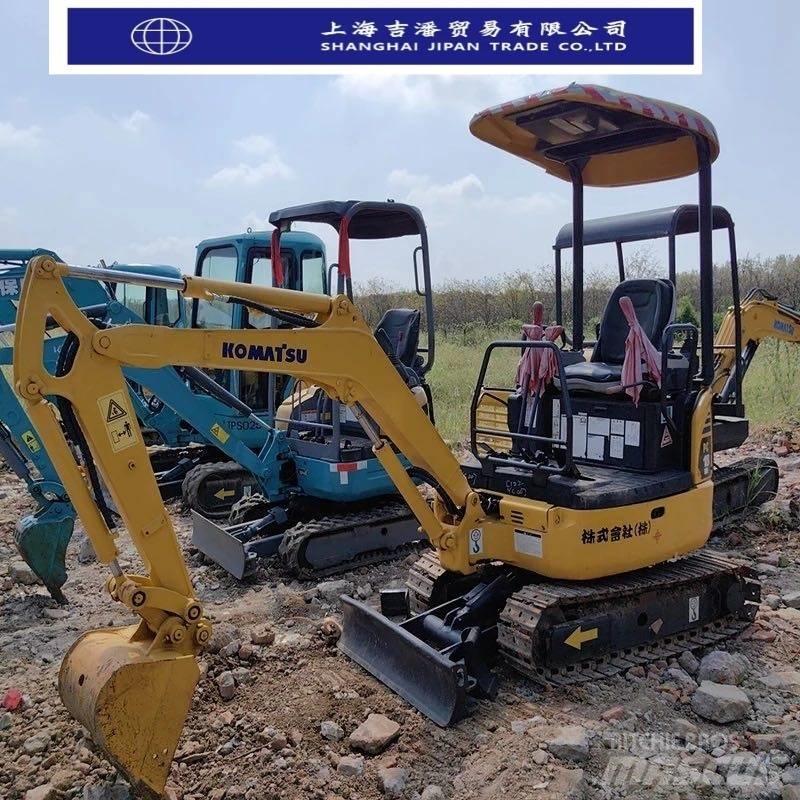

코마츠 PC 18 MR

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)1 整机工作重量(kg)1865 铲斗宽度(mm)400 铲斗容量(m³)0.044 动臂长度(mm)1760 斗杆长度(mm)965 性能 回转速度(rpm)8.9 行走速度(km/h)4.3/2.3 接地比压(Kpa)27.8 铲斗挖掘力(kN)15.9 动力系统 发动机型号小松Komatsu 3D67E-2 额定功率(kw/rpm)11.2/2600 排量(L)0.778 冷却方式水冷 液压系统 工作液压油路(Mpa)23 油类容量 燃油箱(L)19 液压油箱(L)23.8 发动机油更换量(L)3.3 冷却液(L )3.1 主体尺寸 运输总长度(mm)3650 运输总宽度(mm)1280/990 运输总高度(mm)2410 履带总长度(mm)1555 履带板宽度(mm)230 履带轨距(mm)750 前段工作装置最小回转半径(mm)1755 后端回转半径(mm )715 作业范围 最大挖掘半径(mm)4025 停机面最大挖掘半径(mm)3935 最大挖掘深度(mm)2610 最大挖掘高度(mm)3465 最大卸载高度(mm)2435 最大垂直挖掘深度(mm)1785 动臂偏移量(左/右°)70/50 推土板宽度×高度(mm)990/1280*250
