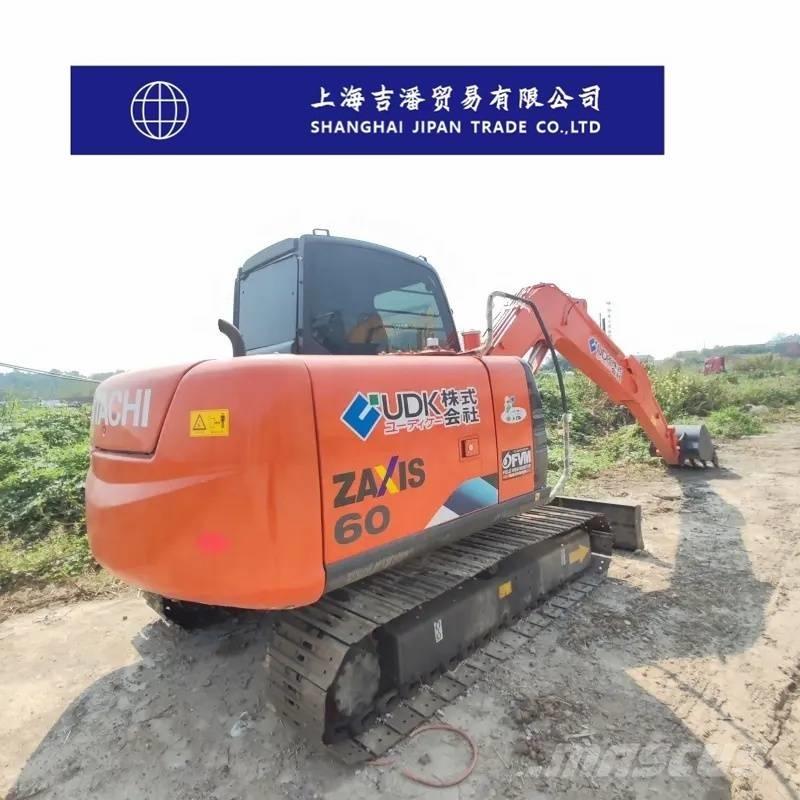

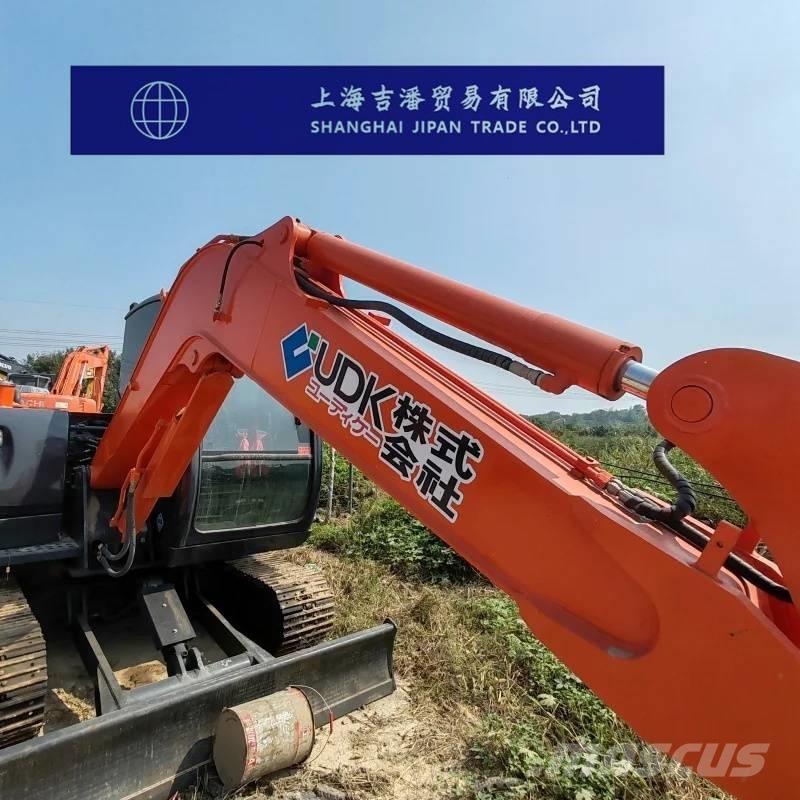

히타치 ZX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Tonnage (tons)6 The overall working weight of the machine (kg) is 5960 Bucket capacity (m³)0.24 Performance Rotational speed (rpm):9.1 Rotational torque (Nm)10 Walking speed (km/h):0-4.5/0-2.5 high/low Climbing ability (%)70%,35° Grounding specific pressure (Kpa)31 Bucket digging force (kN)41.4 The digging force of the boom (kN) is 28.4 Maximum traction force (kN)38.5 Power system Engine model: 4TNV98 Rated power (kw/rpm)42.4/2100 Maximum torque (N.m)236/1350 Displacement (L):3.318 Number of cylinders:4 Bore × stroke (mm):98×110 The cooling method is water cooling Working mode:4-stroke, water-cooled, direct injection type Hydraulic system There are three types of main pumps: variable axial piston pumps The rotary hydraulic motor type is one axial piston motor The type of walking hydraulic motor is a 2-variable axial piston motor The maximum flow rate of the main pump (l/min) is 2×52.5 Pilot pump flow rate (L/min)9.5 Pilot oil circuit (MPa)3.9 Working hydraulic oil circuit (Mpa)24.5 Walking hydraulic circuit (Mpa)24.5 Rotary hydraulic circuit (Mpa)17.6 Boom cylinder - Number × cylinder bore × stroke (mm)1×105×60 Bucket rod cylinder - Number × cylinder bore × stroke (mm)1×85×55 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×80×50 Oil capacity Fuel tank (L)120 Hydraulic oil tank (L)60 Hydraulic System (L)93 Engine oil change rate (L)12.3 Coolant (L)8 Main body size Total transportation length (mm)6060 Total transportation width (mm):2060 Total transportation height (mm):2085 The total height of the cab (mm) is 2475 The width of the vehicle (mm) is 2060 Track plate width (mm)400 Track gauge (mm):1600 Counterweight ground clearance (mm):620 Minimum ground clearance (mm)310 The minimum turning radius (mm) of the front-end working device is 2510 The rear end rotation radius (mm) is 1650 Number of sprocket rollers (single side) (pieces)1 Number of track plates (single side) (pieces)39 Number of supporting wheels (single side) (pieces)5 Scope of work Maximum excavation radius (mm):6250 The maximum excavation radius (mm) of the shutdown surface is 6130 Maximum excavation depth (mm):3850 Maximum excavation height (mm):5800 Maximum unloading height (mm):4080 The maximum vertical excavation depth (mm) is 3440 The width × height (mm) of the push board is 2000×400 The lifting or pushing depth of the earthmoving shovel (mm) is 430×400
