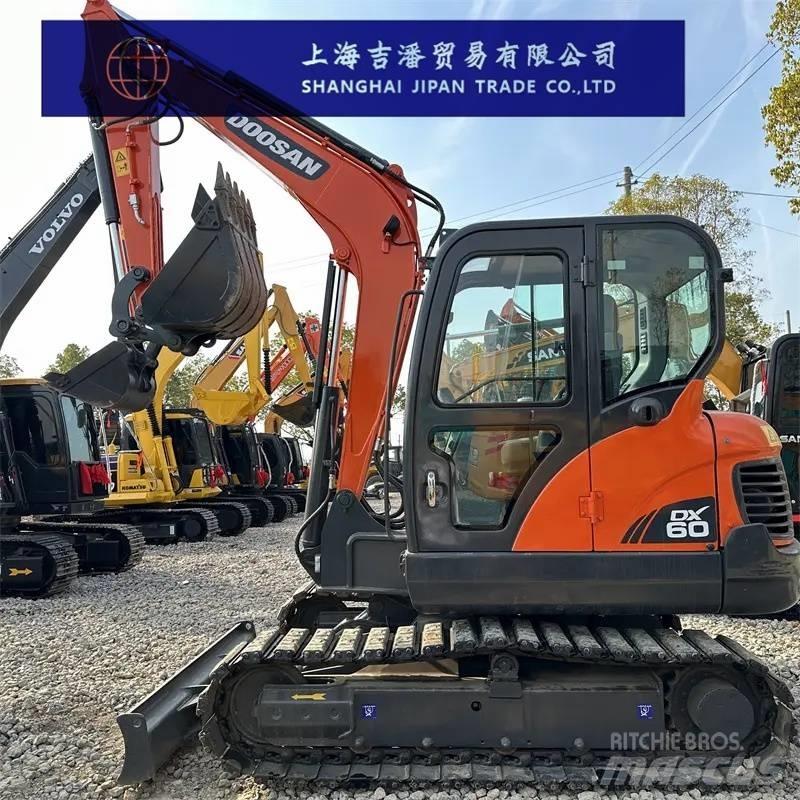

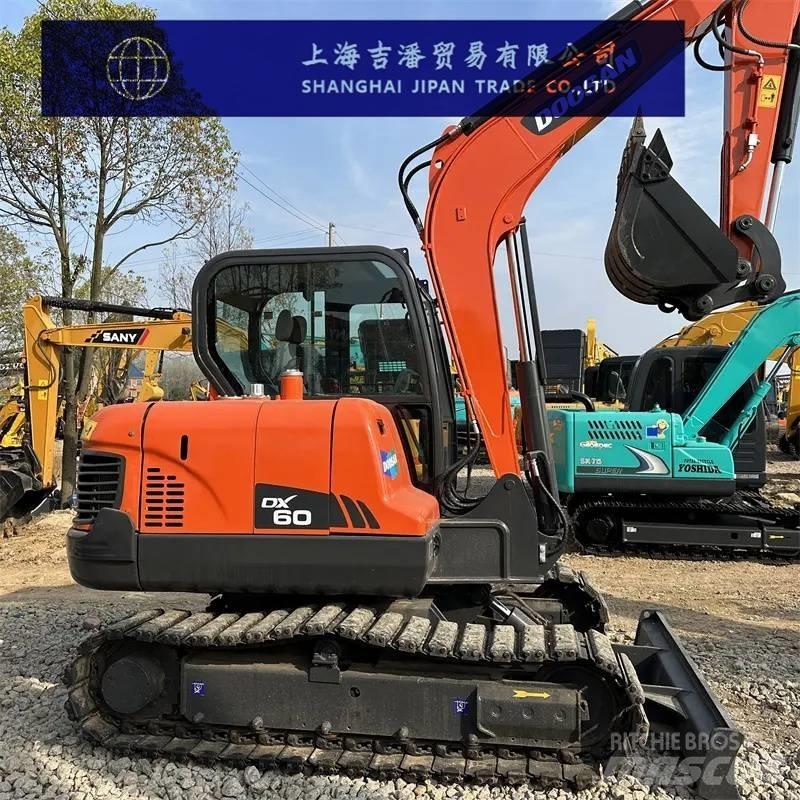

두산 DX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)6 整机工作重量(kg)5700 铲斗容量(m³)0.21 动臂长度(mm)3000 斗杆长度(mm)1600 原产地韩国 性能 回转速度(rpm)9.5 回转扭矩(Nm)20 ~ 22 行走速度(km/h)4.1 / 3.0 爬坡能力(%)78/30度 铲斗挖掘力(kN)44 斗杆挖掘力(kN)28 最大牵引力(kN)58 动力系统 发动机型号洋马YANMAR 4TNV94L 额定功率(kw/rpm)39.7 / 2200 最大扭矩(N.m)20-22/1100 液压系统 主泵最大流量(l/min)60.5×2+36 工作液压油路(Mpa)21.6 行走液压回路(Mpa)21.6 油类容量 燃油箱(L)115 主体尺寸 运输总长度(mm)5850 运输总宽度(mm)2000 运输总高度(mm)2575(至驾驶室顶部) 履带总长度(mm)2540 最小离地间隙(mm )400 后端回转半径(mm )1650 作业范围 最大挖掘半径(mm)6150 最大挖掘深度(mm)3805 最大挖掘高度(mm)5790 最大卸载高度(mm)4065 最大垂直挖掘深度(mm)3038 推土板宽度×高度(mm)2000×350
