두산 DH 60-7
부가세 제외가격
7
즐겨찾기
공유
검색 저장출력
INFO
제품군
소형 굴삭기 7톤 미만
제작사/모델

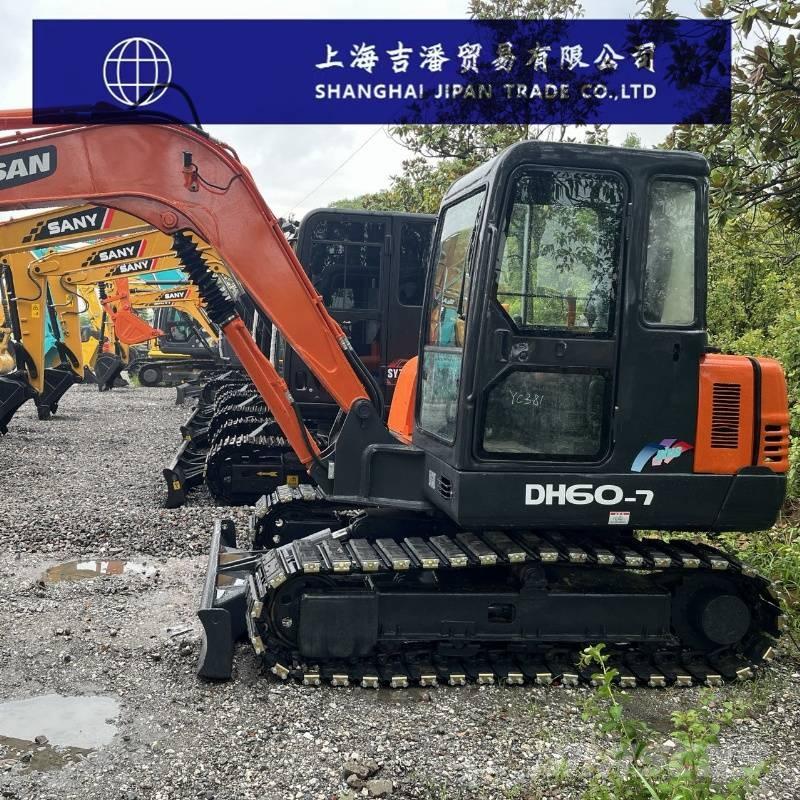

두산 DH 60-7
제작년도
2023
사용시간
854 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
7A3A5A5C
가격
화폐 선택
세부정보
동력 형식
디젤
최근검사
2025-12-04
기존 차주 수
1
하부 구성품 상태
98%
총 중량
5550 kg
매연 등급
Stage V / Tier V
트랙 폭
600 mm
버켓 용량
0.20 m3
장비크기
5850 x 1880 x 2575 mm
오리지널 컬러
original
엔진
original
엔진 출력
38.1 kW (51.8 마력)
엔진 제조사
original
상태 정보/보증
1 year
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours,24 hours, holidays and Sundays
Address: Shanghai City, China
Contact: Nina
Whatsapp: +86 18055199047
Mobile:+86 18055199047
Wechat:18055199047
Email:
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs
부속품
냉/난방 조절
스켈레톤 버킷
조이스틱 컨트롤
표준 굴착 버켓
기타 정보
Parameter Item Specific Value
Operating Weight 5550kg
Bucket Capacity 0.09 - 0.2m³
Boom Length 3000mm
Arm Length 1600mm
Overall Transport Dimensions (L×W×H) 5850×1880×2575mm
Upper Structure Width 1885mm
Cab Width 1030mm
Tail Swing Radius 1650mm
Minimum Ground Clearance 350mm
Track Contact Length 1990mm
Total Track Length 2540mm
Track Shoe Width 400mm
Track Gauge 1480mm
2. Engine Parameters
This model is equipped with a Yanmar 4TNV94L water-cooled 4-cylinder engine, with a rated output power of 38.1kW at 2200rpm. The water-cooled cooling system ensures stable temperature control during engine operation, suitable for long-hour small-scale operation requirements.
3. Hydraulic System Parameters
Parameter Item Specific Value
Main Pump Type Variable Displacement Axial Piston Pump × 2
Maximum Main Pump Flow 55×2L/min
Pilot Pump Type Gear Pump
Maximum Pilot Pump Flow 9.9L/min
Main Relief Valve Pressure (Boom/Arm/Bucket) 210kgf/cm²
Travel Hydraulic Circuit Pressure 210kgf/cm²
Swing Hydraulic Circuit Pressure 21600kPa
4. Performance Parameters
Parameter Item Specific Value
Bucket Digging Force (ISO) 37.7kN
Arm Digging Force (ISO) 28.4kN
Maximum Digging Radius 6150mm
Maximum Digging Depth 3820mm
Maximum Digging Height 5760mm
Maximum Dumping Height 4030mm
