두산 DH 55

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

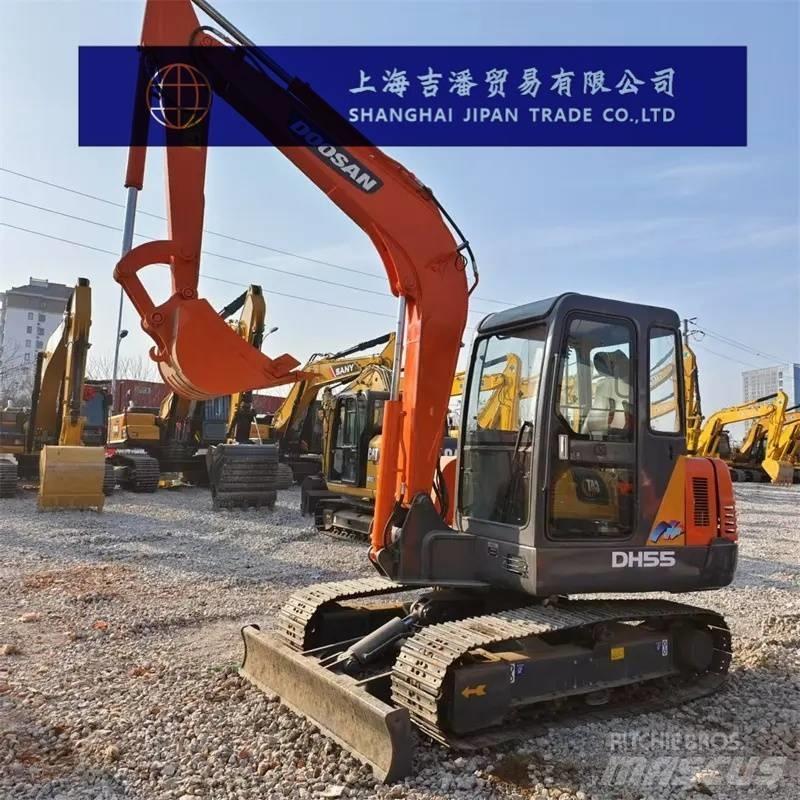

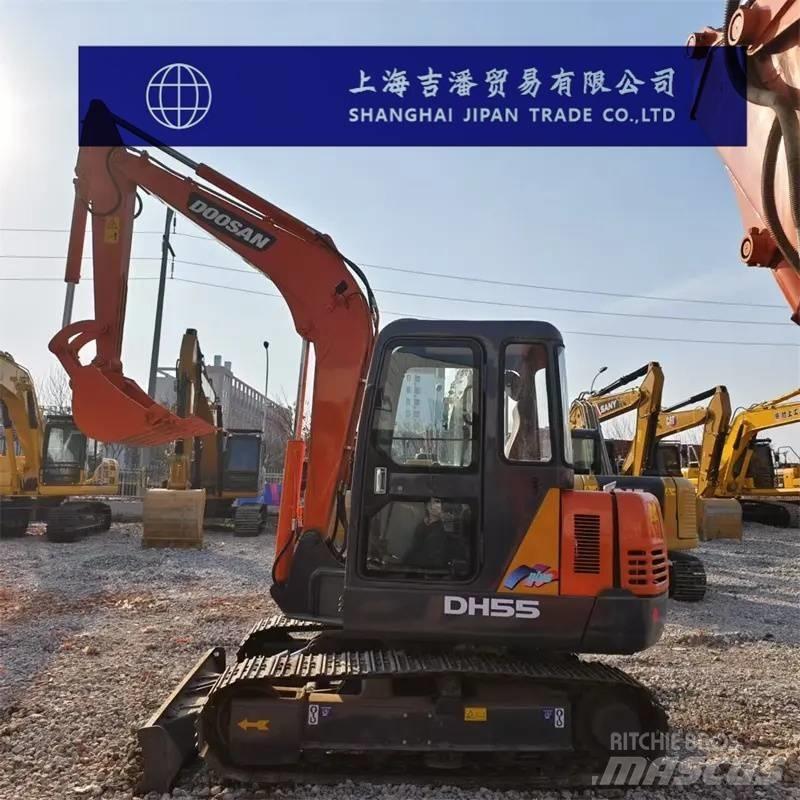

Parameter configuration of Doosan DH55 excavator Specification The working weight of the entire machine (kg) is 5250 Bucket capacity (m³) : 0.13-0.175 Tonnage (tons)5 Bucket backhoe Power Traditional Power Bucket backhoe Joint venture with manufacturers & import Power Traditional Power Performance Rotational speed (rpm) : 0-9.0 Walking speed (km/h)3.8/2.1 Climbing ability (%) : 30 Bucket digging force (kN)3.71 The digging force of the bucket arm (kN) is 2.66 The maximum traction force (kN) is 4800 Power system The engine model is original Isuzu 4JG1 Rated power (kw/rpm) : 134940.5 Displacement (L)2.771 Number of cylinders (4) Hydraulic system Main pump type: Kawasaki The maximum flow rate of the main pump (l/min) is 2-55 Walking hydraulic circuit (Mpa)210 Rotary hydraulic circuit (Mpa)220 Oil capacity Fuel tank (L)115 Hydraulic oil tank (L)80 Engine oil change volume (L) : 9.7 Coolant (L)10 Main body size The total transportation length (mm) is 5940 The total transportation width (mm) is 2420 The total length of the track (mm) is 2546 The total width of the track (mm) is 1880 Track gauge (mm) : 1408 Minimum ground clearance (mm) : 350 Scope of work Maximum excavation radius (mm) : 6100 Maximum excavation depth (mm) : 3890 Maximum excavation height (mm) : 5330 Maximum vertical excavation depth (mm) : 3025
