바우어 MBF10
부가세 제외가격
POA
18
즐겨찾기
공유
검색 저장출력
INFO
제품군
말뚝설치기
제작사/모델
바우어 MBF10
제작년도
2007
사용시간
6750 시간
장비위치
Middlesbrough, Cleveland
국가
영국
일반 등급
1
2
3
4
5
마스쿠스 ID
0A3DF58C
세부정보
재고번호
PF 40524
상태 정보/보증
All of our machines are checked and tested to ensure they are in full working condition when they reach your site – that is the Sigma guarantee.
제품 국가
미국
기타 정보

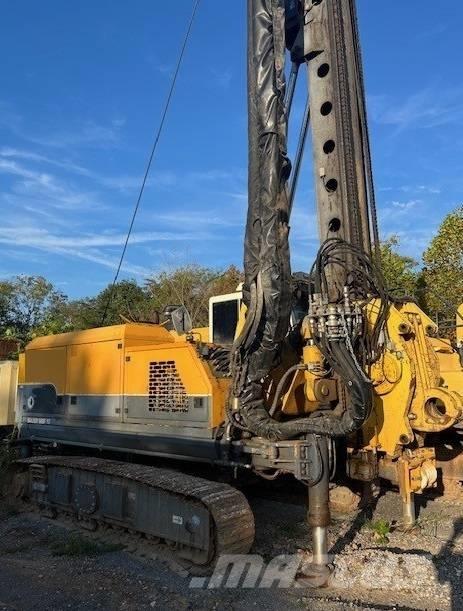

Bottom feed stone column vibro machine with 6750 operating hours
Bauer MBF10 carrier with UW25 undercarriage
Bauer B tronic data logging system
Side dump bucket for CTL
overall height 16m
floor plate width 500mm
overall width 2500-3300mm
crawler length 4200mm
width of track shoes 500mm
traction force (effective) 210kN
Cummins diesel engine (201kW @ 2000rpm, Tier lll)

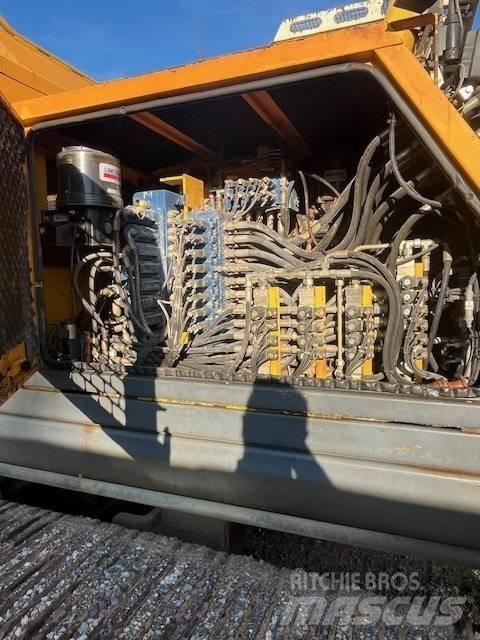

Hydraulic system – hydraulic power output 146kW
oil flow 2 x 150 + 1 x 120L/min
operating pressure 300bar
hydraulic tank 400L

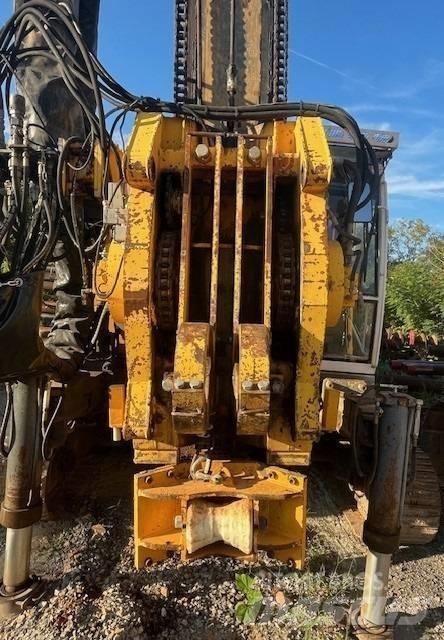

2 x TR17 vibro – max depth 10.1m, centrifugal force 193kN, eccentric moment 1.7kgm, frequency 53Hz
operating weight 39.5T
main winch 125kN (rope diameter 20mm)
auxiliary winch 75kN (rope diameter 16mm)
Ingersoll rand 375/150 air compressor - output 93kW, delivery rate 10.3 cubic metres per minute, delivery pressure 10bar Crowd system – crowd force (push/pull) 125/125kN
Total pull (winch & chain) 225kN.
2 x TR17 vibro lances with hoppers
SIGMA PLANTFINDER LIMITED
Middlesbrough Road TS6 6LZ Middlesbrough Cleveland 영국
