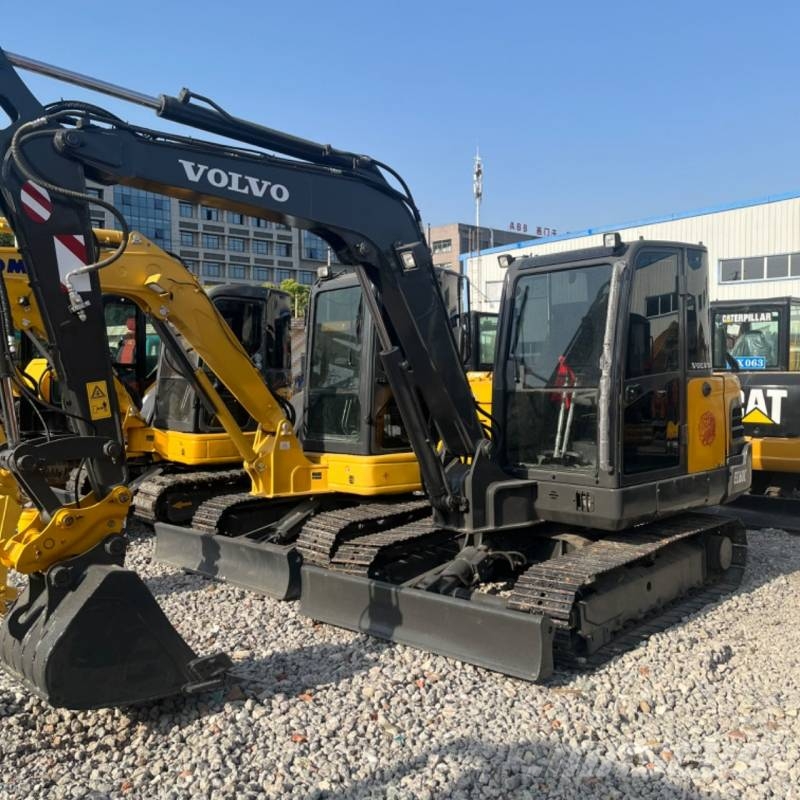

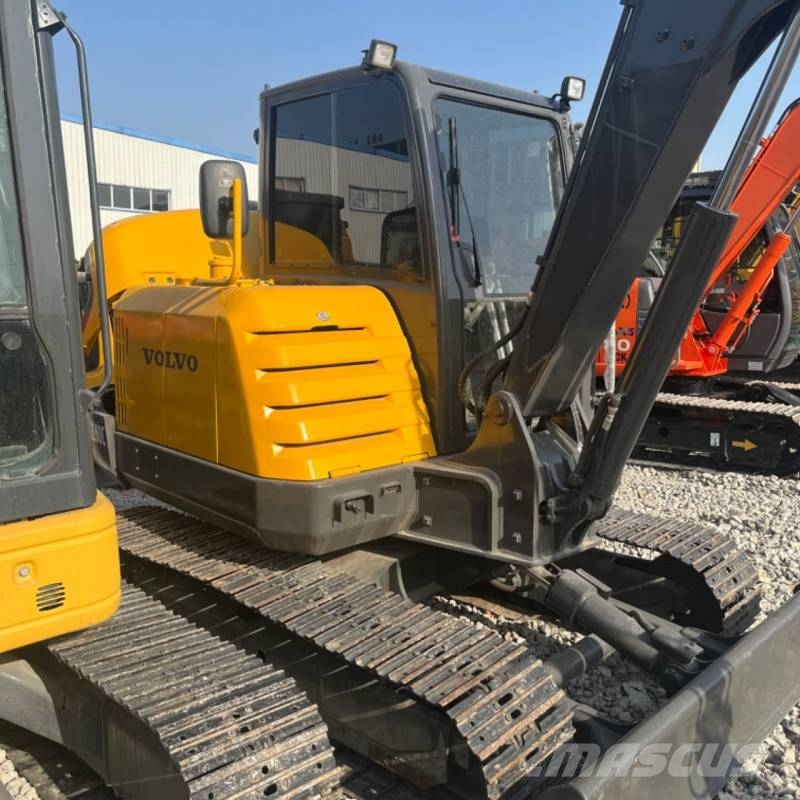

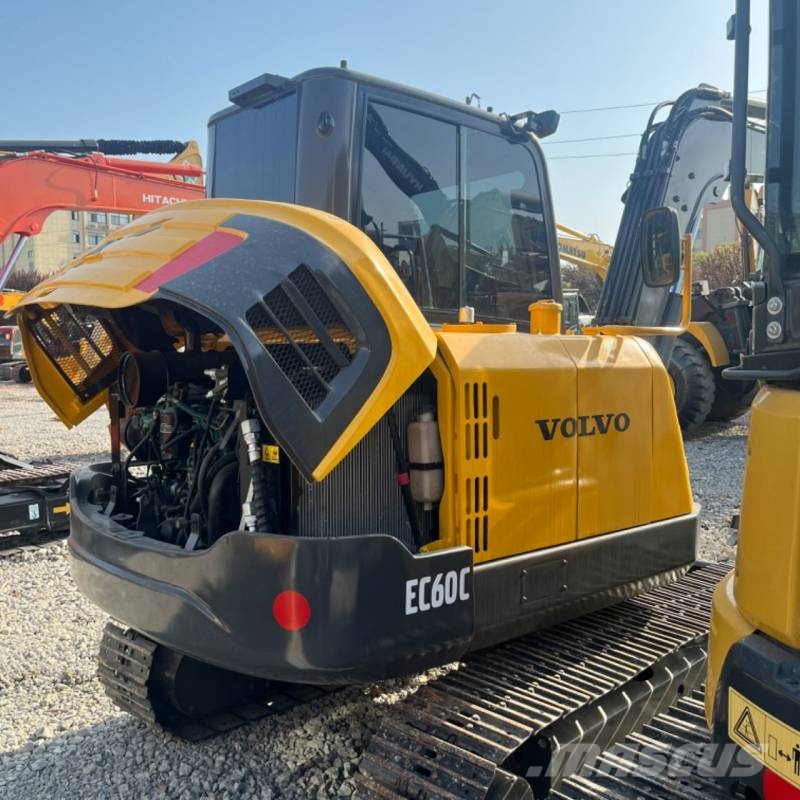

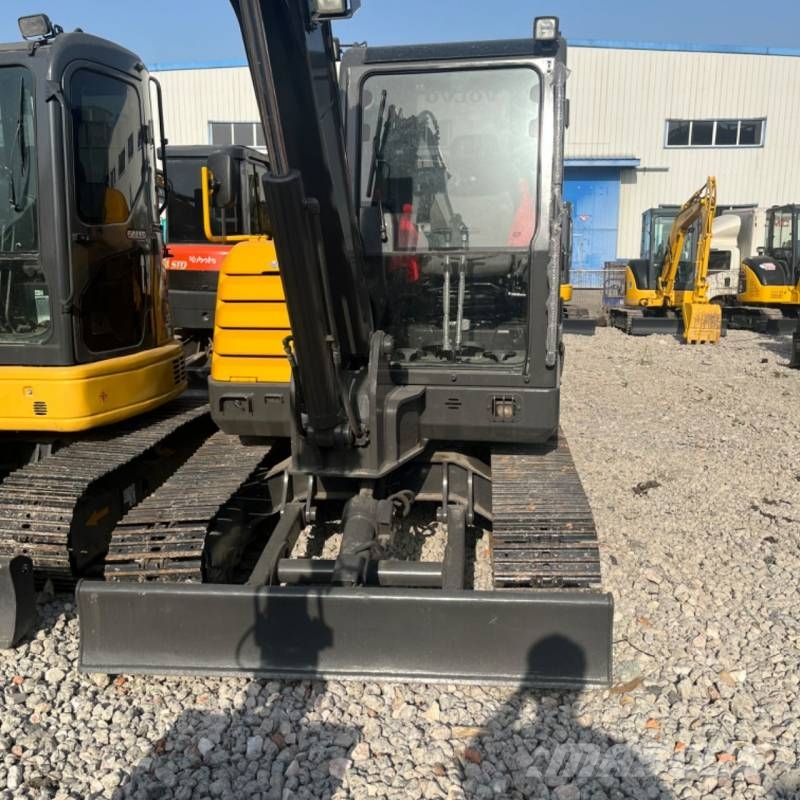

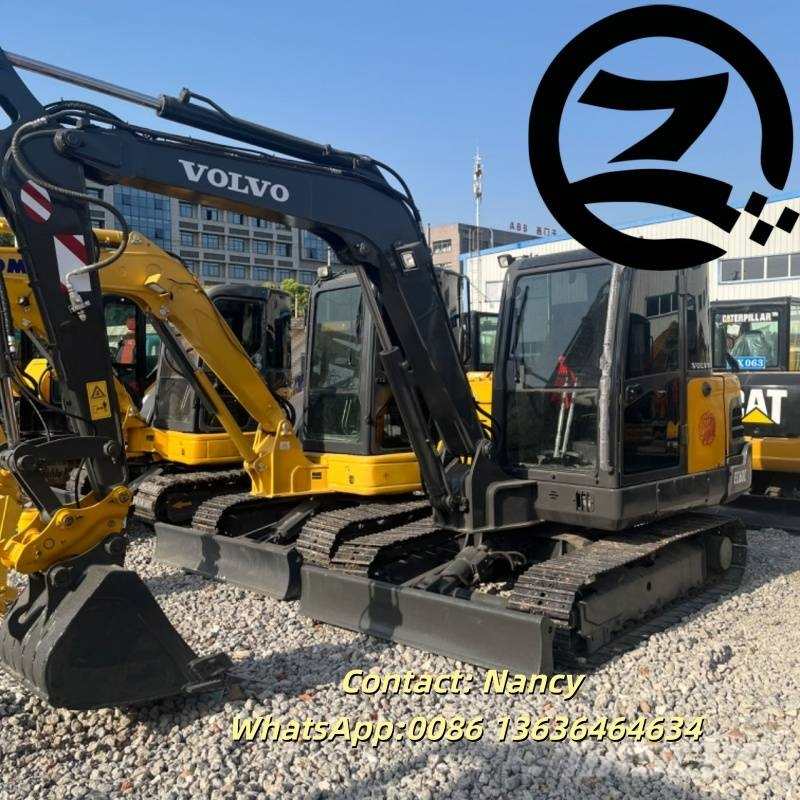

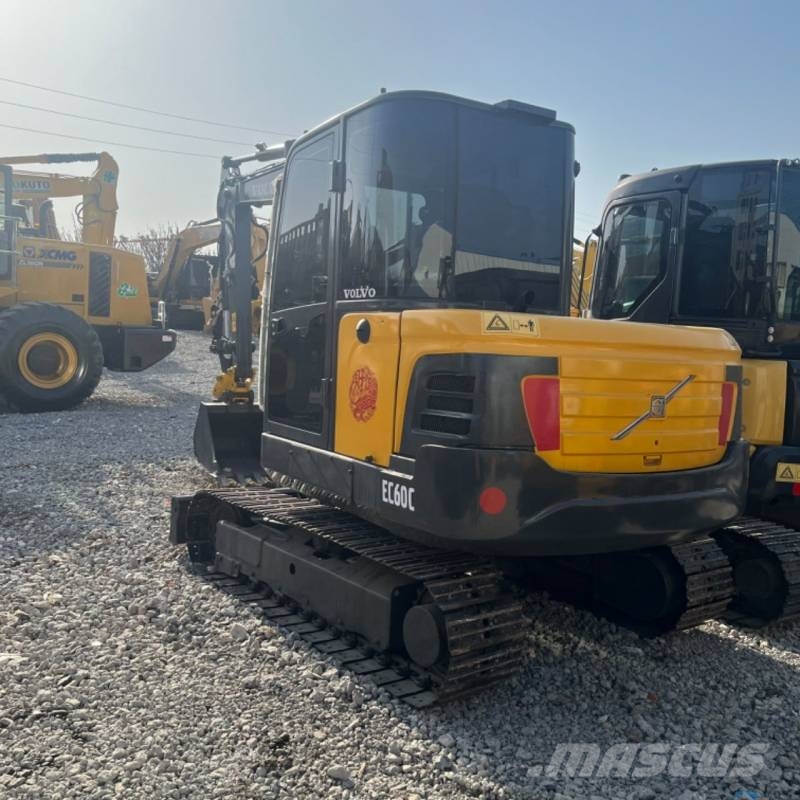

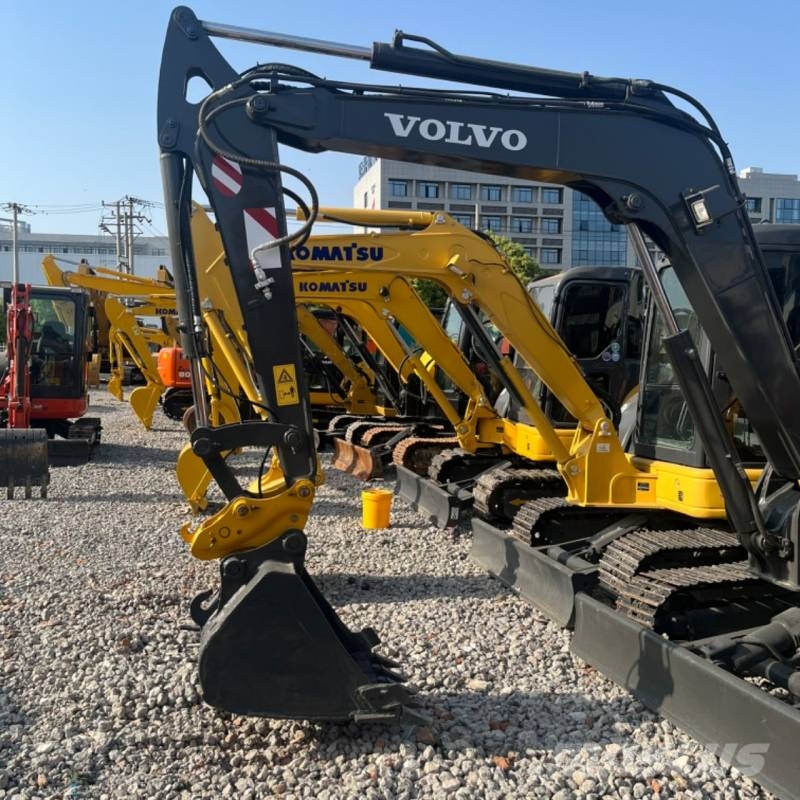

볼보 EC 60 C

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

# Volvo EC60C ## Engine - Model: Volvo D3.4D (Overseas version) / D3.1D (China version), 4-cylinder, water-cooled, direct injection diesel engine - Gross power: 39 kW (53 hp) @2200 rpm; Net power: 37.5 kW - Displacement: D3.4D = 3.319 L; D3.1D = 3.054 L - Max torque: 209 N·m @1650 rpm - Emission standard: EU Stage IIIA, CE certified ## Machine & Working Specifications - Operating weight: 5820 kg (5790 kg for China version) - Standard bucket capacity: 0.23 m³ (0.30 m³ standard for China) - Boom length: 3000 mm; Arm length: 1600 mm - Bucket digging force: 42.2 kN; Arm digging force: 27.6 kN - Swing speed: 8.8 rpm - Travel speed: Low 2.4 km/h, High 4.5 km/h - Max traction force: 44.1 kN ## Hydraulic System - Main pump: 2 × variable displacement piston pumps, main pump flow: 2 × 57.8 L/min - Main system pressure: 21.6 MPa - Pilot pump flow: 13.7 L/min, pilot pressure: 3.2 MPa - Auxiliary hydraulic line factory pre-installed for breaker, grapple and other attachments ## Transport Dimensions - Overall length: 5872 mm - Overall width: 1920 mm - Overall height (top of cab): 2560 mm Compact size, can be transported on flatbed truck without counterweight removal ## Fluid Capacities - Fuel tank: 110 L - Hydraulic tank: 84 L; Total hydraulic system volume: 134 L - Engine oil: 11.5 L - Coolant: 16 L ## Counterweight - Counterweight mass: approx. 1120 kg, one-piece cast iron counterweight ## Fuel Consumption Reference - Normal earthwork: 4.5～6 L/h (depends on working load) - Heavy load with hydraulic breaker: 6～7.5 L/h
