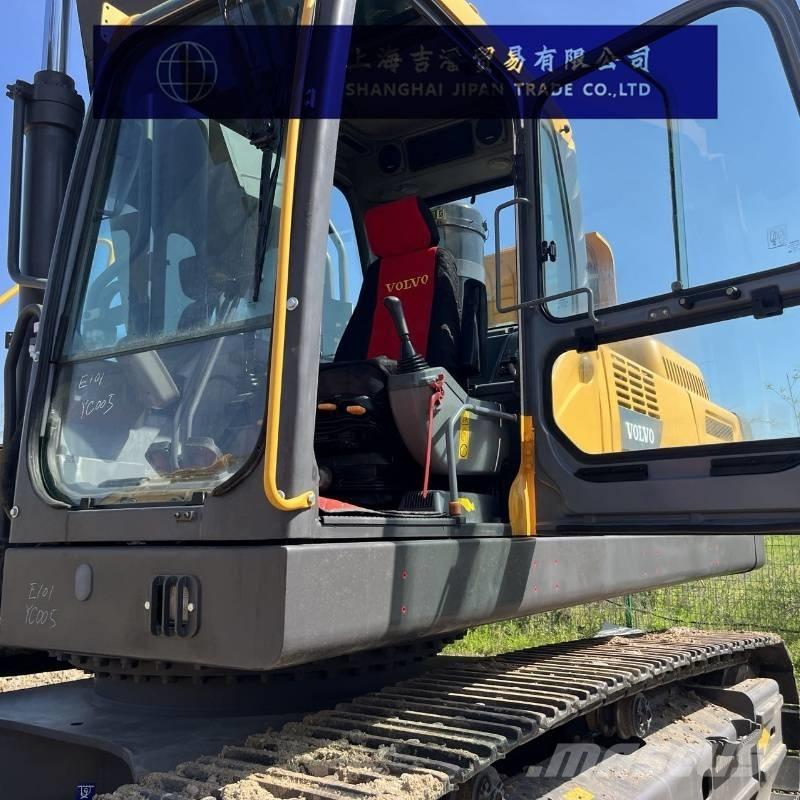

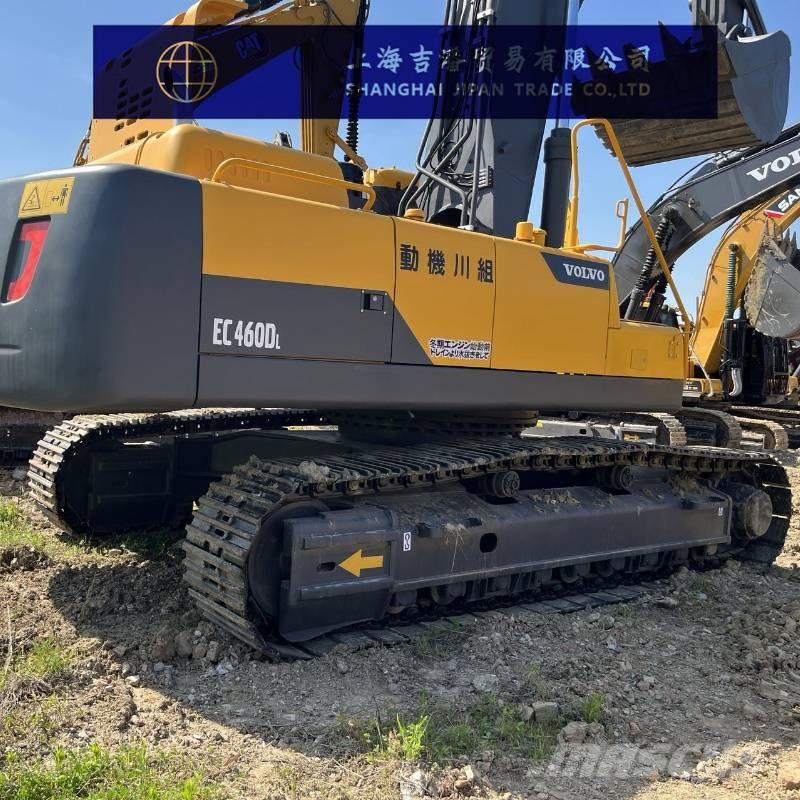

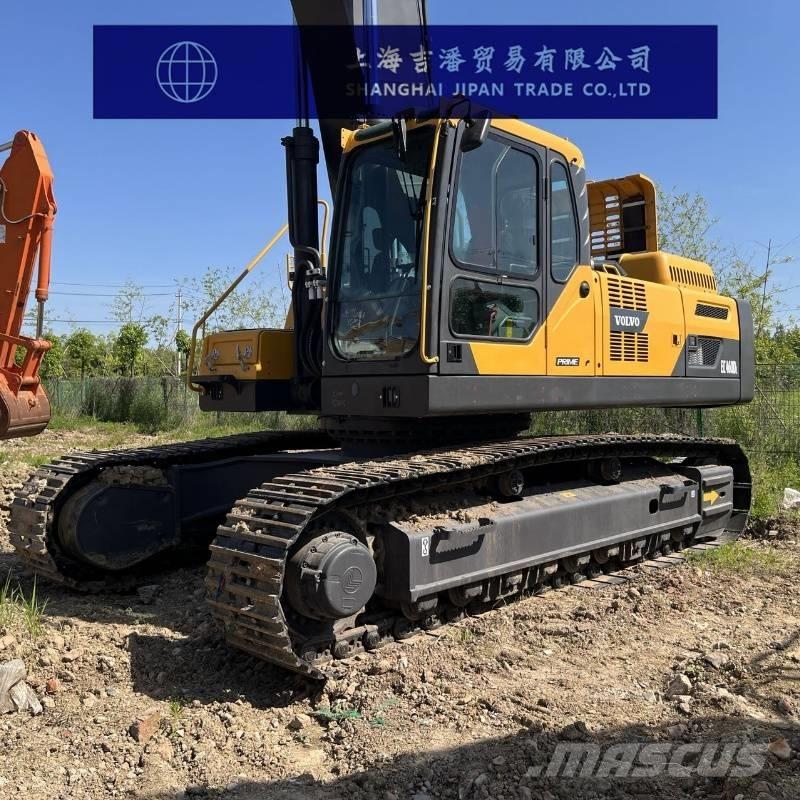

볼보 EC 460

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Overall Machine ParametersOperating Weight: 44,500 kgBucket Capacity: 1.8-3.73 m³Boom Length: 7,000 mmArm Length: 3,350 mmCountry of Origin: Shanghai, China Power SystemEngine Model: Volvo D12DRated Power: 245 kW / 1,800 rpmDisplacement: 12.1 LNumber of Cylinders: 6Bore × Stroke: 131 × 150 mmCooling System: Water-cooledMaximum Torque: 1,720 N·m / 1,350 rpm Hydraulic SystemMain Pump Type: Variable Displacement Axial Piston Pump × 2 + Gear PumpMaximum Main Pump Flow: 345 × 2 + 31 L/minTravel Hydraulic Motor Type: Variable Displacement Axial Piston MotorSwing Hydraulic Motor Type: Axial Piston Hydraulic MotorWorking Hydraulic Circuit Pressure: 31.4 / 34.3 MPaTravel Hydraulic Circuit Pressure: 31.4 MPaSwing Hydraulic Circuit Pressure: 24.5 MPaControl Hydraulic Circuit Pressure: 3.9 MPaBoom Cylinder (Qty. × Bore × Stroke): 2 × 165 × 1,590 mmArm Cylinder (Qty. × Bore × Stroke): 1 × 190 × 1,850 mmBucket Cylinder (Qty. × Bore × Stroke): 1 × 165 × 1,335 mm PerformanceSwing Speed: 8.5 rpmTravel Speed: 2.9 / 4.8 km/hGradeability: 70%Ground Pressure: 77.5 kPaBucket Digging Force: 253.0 kN (Standard) / 276.5 kN (Boost)Arm Digging Force: 195.1 kN (Standard) / 213.8 kN (Boost) Fuel & TanksFuel Tank Capacity: 685 LHydraulic Oil Tank Capacity: 270 LTotal Hydraulic System Capacity: 525 LEngine Oil Capacity (Change): 42 LCoolant Capacity: 60 L DimensionsTransport Length: 12,070 mmTransport Width: 3,340 mmTransport Height: 3,650 mmCab Height: 3,250 mmCounterweight Ground Clearance: 1,275 mmTrack Contact Length: 4,370 mmTotal Track Length: 5,370 mmTrack Shoe Width: 600 mmTotal Track Width: 3,340 mmTrack Gauge: 2,740 mmMinimum Ground Clearance: 550 mmMinimum Front Swing Radius: 5,090 mmRear Swing Radius: 3,730 mm
