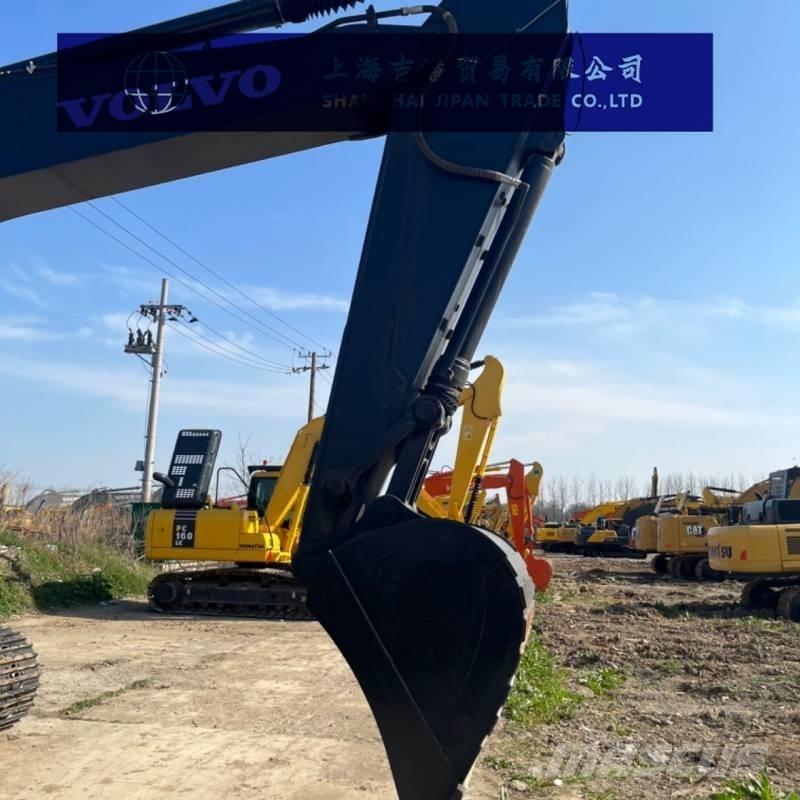

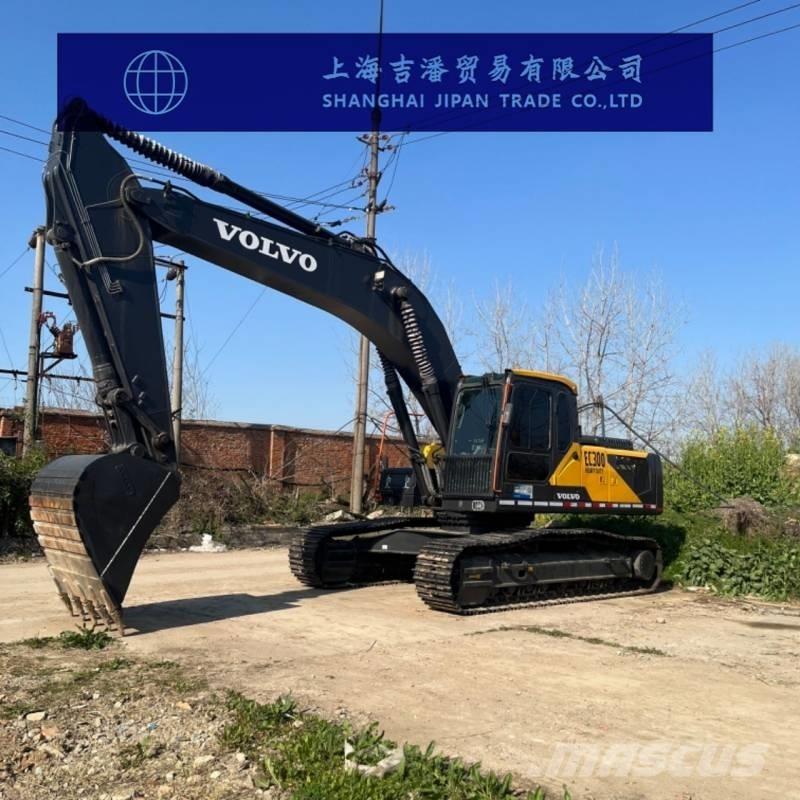

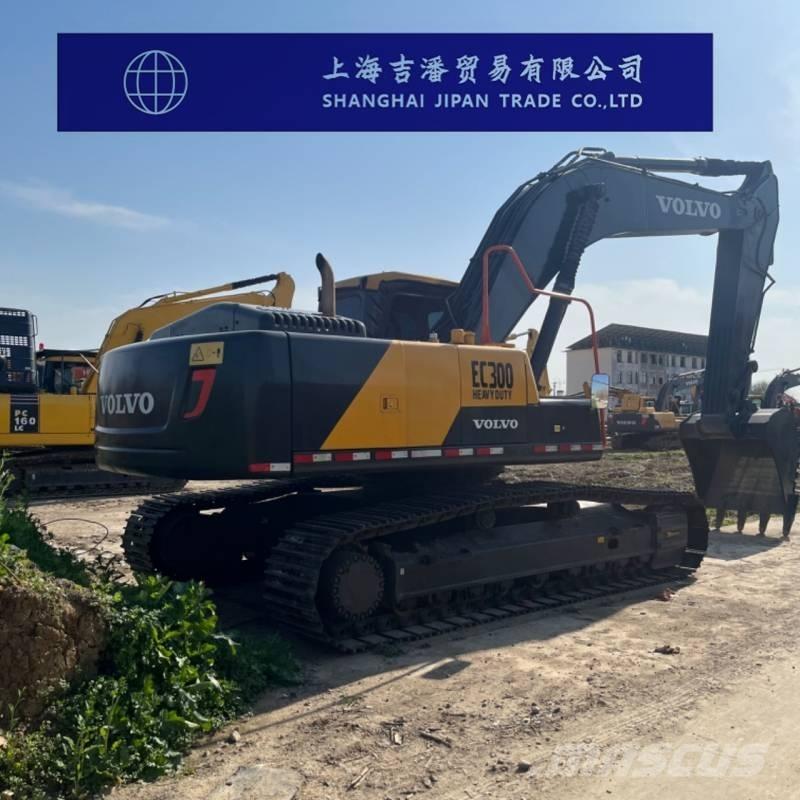

볼보 EC 300

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck mounted cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Specification Tonnage (tons)30 The working weight of the entire machine (kg) is 30040 Bucket capacity (m³)1.4 Boom length (mm)6430 The length of the boom (mm) is 3710 Performance Rotational speed (rpm):10.7 The rotary torque (Nm) is 110.9 Walking speed (km/h):3.4/5.4 Climbing ability:35° Maximum traction force (kN)247 Power system Engine model: D7E Rated power (kw/rpm)169/1800 Maximum torque (N.m):1080/1350 Displacement (L)7.1 Number of cylinders:6 units Cylinder diameter × stroke (mm)108×130 Working form: turbocharged,4-stroke, water-cooled, direct injection type Hydraulic system The maximum flow rate of the main pump (l/min) is 2×263 Working hydraulic circuit (Mpa)33.3/36.3 Walking hydraulic circuit (Mpa)36.3 Rotary hydraulic circuit (Mpa)27.9 Boom cylinders - Number × cylinder diameter × stroke (mm)2×140×1480 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1×150×1745 Bucket cylinder - Number × cylinder diameter × stroke (mm)1×140×1140 Oil capacity Fuel tank (L)470 Hydraulic oil tank (L)195 Hydraulic system (L)400 Coolant (L)41 Main body size The total length of transportation (mm) is 10,640 The total transportation width (mm) is 3190 The total transportation height (mm) is 3090 The total height of the cab (mm) is 3090 The width of the vehicle (mm) is 890 The total length of the tracks (mm) is 4870 Track plate width (mm):600 Minimum ground clearance (mm):480 The ground clearance of the counterweight (mm) is 1135 Scope of work Maximum excavation radius (mm):10190 The maximum excavation radius (mm) of the shutdown face is 9980 Maximum excavation depth (mm):6850 Maximum excavation height (mm):9660 Maximum unloading height (mm):6670 Maximum vertical excavation depth (mm):5730 Maximum effective excavation depth (mm):6610
