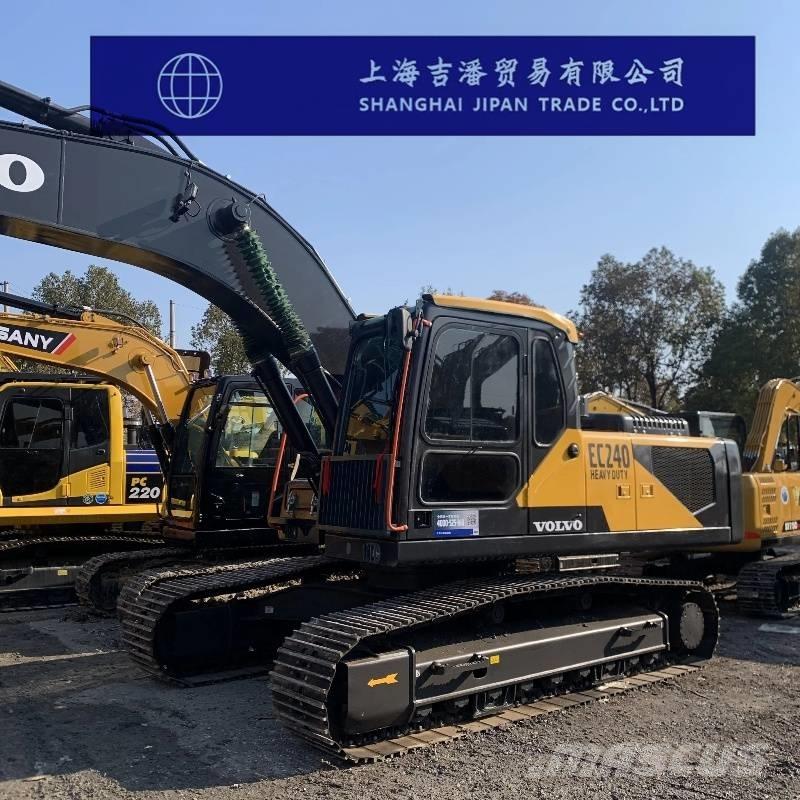

볼보 EC 240

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Specifications Power Type: Traditional Power Manufacturer: Joint Venture/Imported Bucket Type: Backhoe Operating Weight (kg): 24300 Bucket Capacity (m³): 1.05-1.98 Boom Length (mm): 6000 Stick Length (mm): 2970 Ton Class (ton): 24 Performance Swing Speed (rpm): 11.4 Travel Speed (km/h): 3.2/5.5 Gradeability (%): 70 Ground Pressure (Kpa): 50 Bucket Digging Force (kN): 160.8 (Standard Mode) / 175.5 (Boost Mode) Stick Digging Force (kN): 111.1 (Standard Mode) / 121.6 (Boost Mode) Power System Engine Model: Volvo D7D Rated Power (kw/rpm): 134/2000 Displacement (L): 7.1 Number of Cylinders: 6 Bore × Stroke (mm): 108×130 Cooling System: Water-cooled Operation Mode: Maximum torque: 750N.m/1400rpm, Turbocharged Hydraulic System Main Pump Type: Variable Displacement Axial Piston Pump × 2 + Gear Pump Travel Hydraulic Motor Type: Variable Displacement Axial Piston Motor Swing Hydraulic Motor Type: Axial Piston Hydraulic Motor Maximum Main Pump Flow (l/min): 230×2 + 20 Working Hydraulic Circuit Pressure (Mpa): 31.4/34.3 Travel Hydraulic Circuit Pressure (Mpa): 34.3 Swing Hydraulic Circuit Pressure (Mpa): 26.5 Control Hydraulic Circuit Pressure (Mpa): 3.9 Boom Cylinder - Quantity × Bore × Stroke (mm): 2-135×1345 Stick Cylinder - Quantity × Bore × Stroke (mm): 1-140×1665 Bucket Cylinder - Quantity × Bore × Stroke (mm): 1-130×1150 Fluid Capacities Fuel Tank (L): 380 Hydraulic Oil Tank (L): 190 Hydraulic System (L): 320 Engine Oil Replacement Capacity (L): 32 Coolant (L): 44 Dimensions Overall Transport Length (mm): 10020 Overall Transport Width (mm): 2990 Overall Transport Height (mm): 3040 Overall Cab Height (mm): 2990 Track Contact Length (mm): 3660 Total Track Length (mm): 4460 Track Shoe Width (mm): 600 Total Track Width (mm): 2990 Track Gauge (mm): 2390 Minimum Ground Clearance (mm): 470 Counterweight Ground Clearance (mm): 1080 Minimum Swing Radius of Front Attachment (mm): 3890 Rear Swing Radius (mm): 2940 Working Range Maximum Digging Radius (mm): 10260 Maximum Digging Radius at Ground Level (mm): 10080 Maximum Digging Depth (mm): 6980 Maximum Digging Height (mm): 9690 Maximum Dumping Height (mm): 6800 Maximum Vertical Digging Depth (mm): 5970 Maximum Effective Digging Depth (mm): 6740
