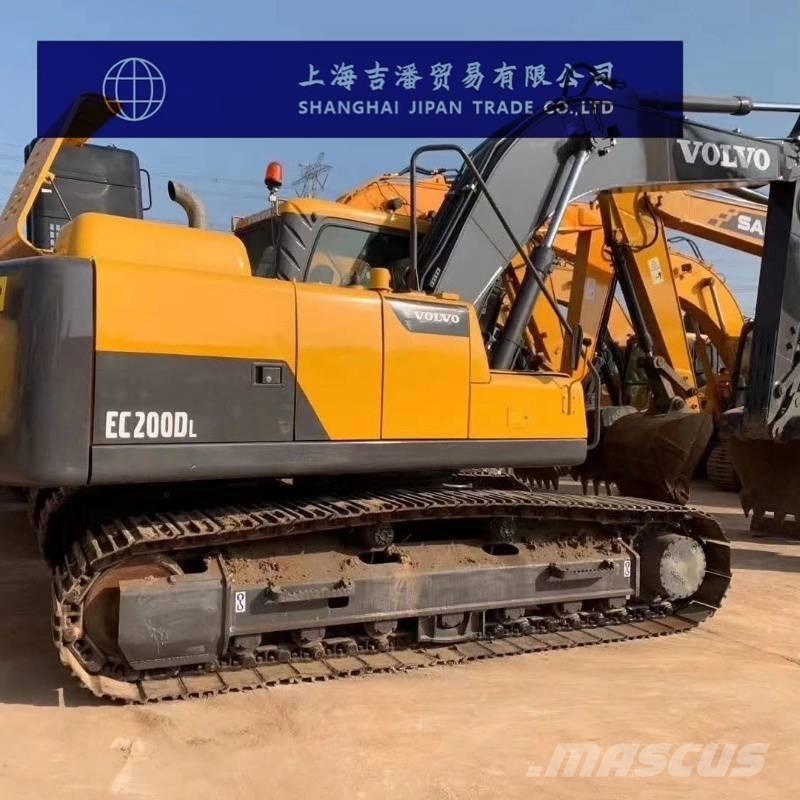

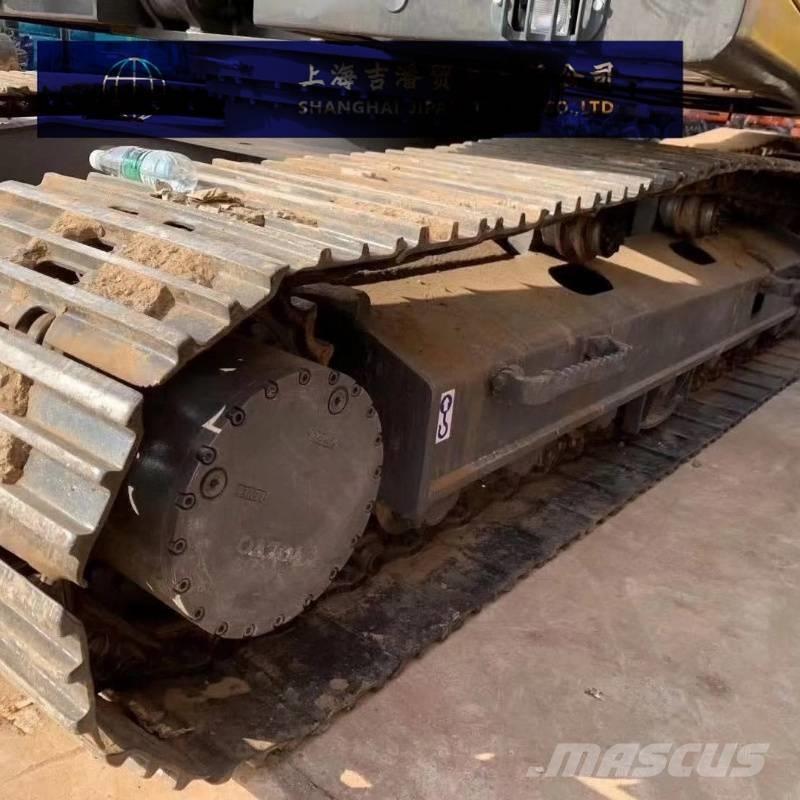

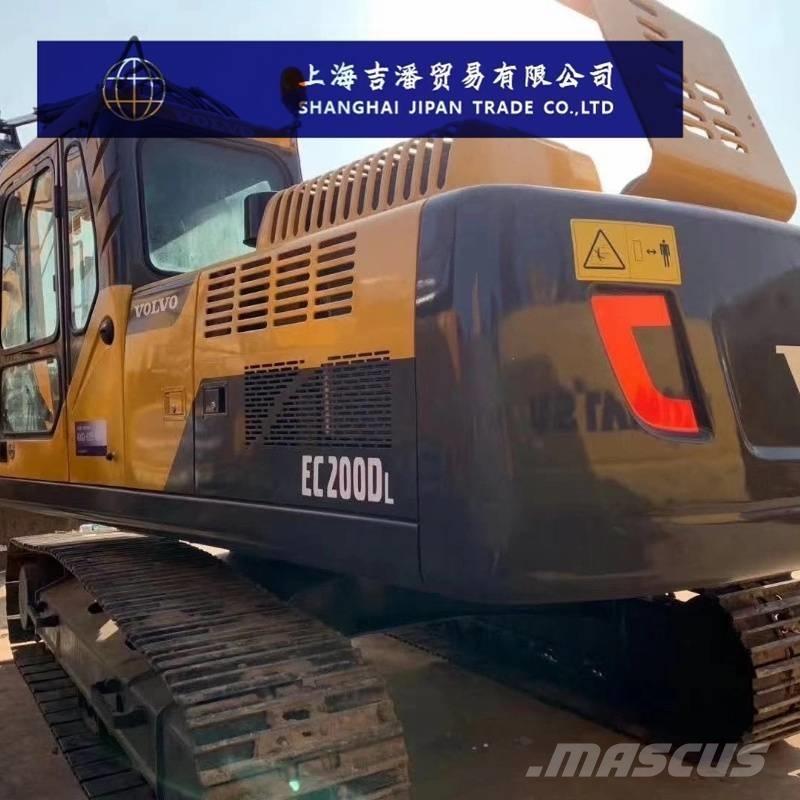

볼보 EC 200

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Information: Overall operating weight: 20,500 kg; Bucket capacity: 0.85 m³; Boom length: 5,700 mm; Arm length: 2,900 mm. Performance Parameters: Swing speed: 11.6 rpm; Travel speed: 3.2/5.5 km/h; Ground pressure: 42.2 Kpa; Bucket digging force: 136.3 kN (standard)/147.1 kN (boost); Arm digging force: 98.2 kN (standard)/104.9 kN (boost); Maximum traction force: 183 kN. Engine Parameters: Displacement: 5.7 L; Number of cylinders: 6; Bore × stroke: 98×126 mm; Cooling system: Water-cooled; Technology: Common rail direct injection, turbocharging; Equipped with auto-idle function. Hydraulic System: Main pump type: Variable displacement axial piston pump ×2; Maximum main pump flow: 2×200 L/min; Travel hydraulic motor: Variable displacement axial piston motor (with mechanical brake); Swing hydraulic motor: Axial piston motor (with mechanical brake); Working hydraulic circuit pressure: 32.4/34.3 MPa; Travel hydraulic circuit pressure: 34.3 MPa; Swing hydraulic circuit pressure: 27.9 MPa; Pilot circuit pressure: 3.9 MPa. Fluid Capacities: Fuel tank: 350 L; Hydraulic oil tank: 160 L; Hydraulic system total capacity: 295 L; Engine oil change capacity: 25 L; Coolant capacity: 32 L. Dimensions: Transport length: 9,700 mm; Transport width: 2,800 mm; Transport height: 2,940 mm; Cab height: 2,940 mm; Counterweight ground clearance: 1,032 mm; Track length: 4,170 mm; Track shoe width: 600 mm; Track gauge: 2,200 mm; Minimum ground clearance: 460 mm; Minimum swing radius of front attachment: 3,650 mm; Tail swing radius: 2,860 mm. Working Range: Maximum digging radius at ground level: 9,750 mm; Maximum digging depth: 6,730 mm; Maximum dumping height: 6,650 mm; Maximum vertical digging depth: 5,830 mm; Maximum digging depth (at 2.5 m horizontal): 6,510 mm.
