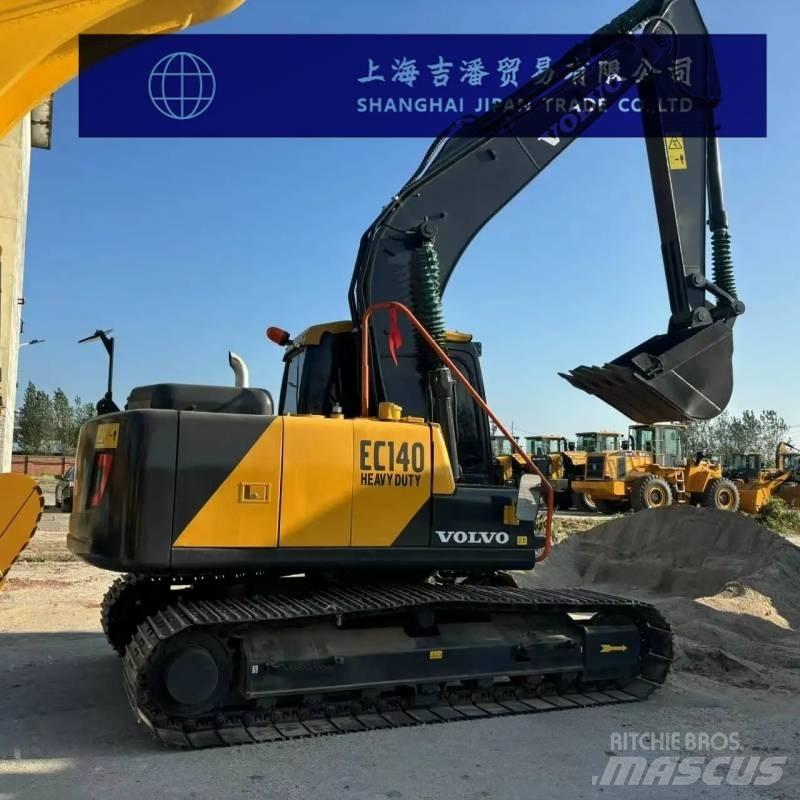

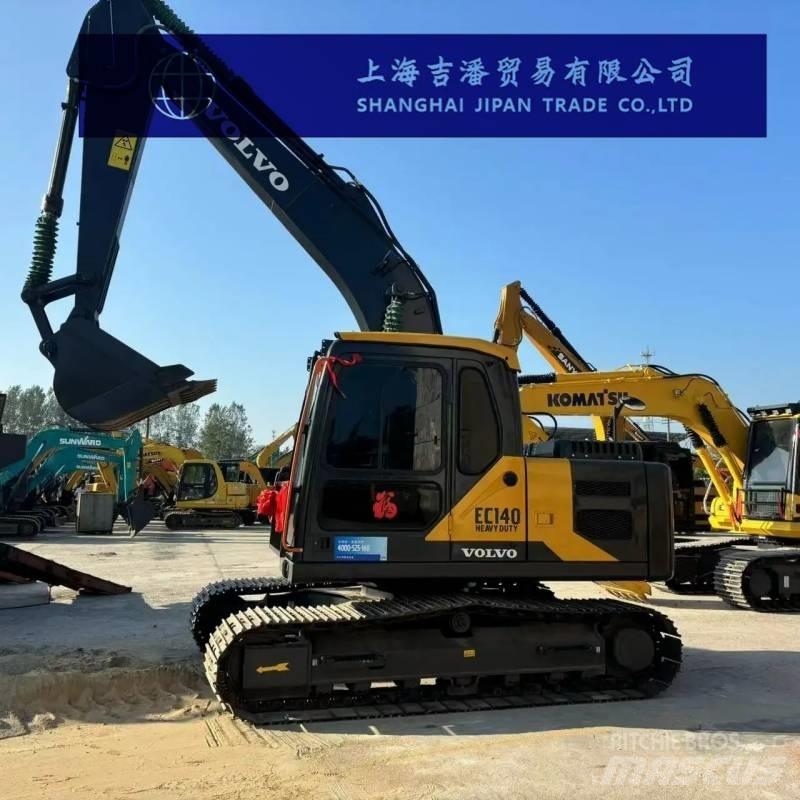

볼보 EC 140

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Bucket capacity (m³) : 0.55-0.93 The length of the boom (mm) is 2500 Boom length (mm) : 4600 The working weight of the entire machine (kg) is 13,800 Tonnage (tons)14 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance The digging force of the bucket arm (kN) is 63.7/67.7 The ground pressure (Kpa) is 34.6 Rotational speed (rpm)11 Walking speed (km/h)5.5/3.2 Climbing ability (%)70% Bucket digging force (kN)93.2/98.1 Power system Rated power (kw/rpm)73/2100 Displacement (L)4 Engine model: Volvo D4D Cylinder diameter × stroke (mm)101×126 Number of cylinders (4) Hydraulic system The maximum flow rate of the main pump (l/min) is 118*2+21 Boom cylinders - number × cylinder diameter × stroke (mm)105×980 Bucket rod cylinder - number × cylinder diameter × stroke (mm)120×1045 Bucket cylinder - Number × cylinder diameter × stroke (mm)100×865 Main pump type variable: Axial piston pump ×2+ gear pump Oil capacity Coolant (L)20.3 Engine oil change volume (L) : 15.5 Hydraulic oil tank (L)100 Fuel tank (L)260 Main body size The total width of the tracks (mm) is 2590 Track gauge (mm)1990 The ground clearance of the counterweight (mm) is 900 Track grounding length (mm) : 3000 Minimum ground clearance (mm) : 430 The total height of the cab (mm) is 2830 Rear end turning radius (mm)2200 The total length of transportation (mm) is 7,700 The total transportation width (mm) is 2590 The total transportation height (mm) is 2830
