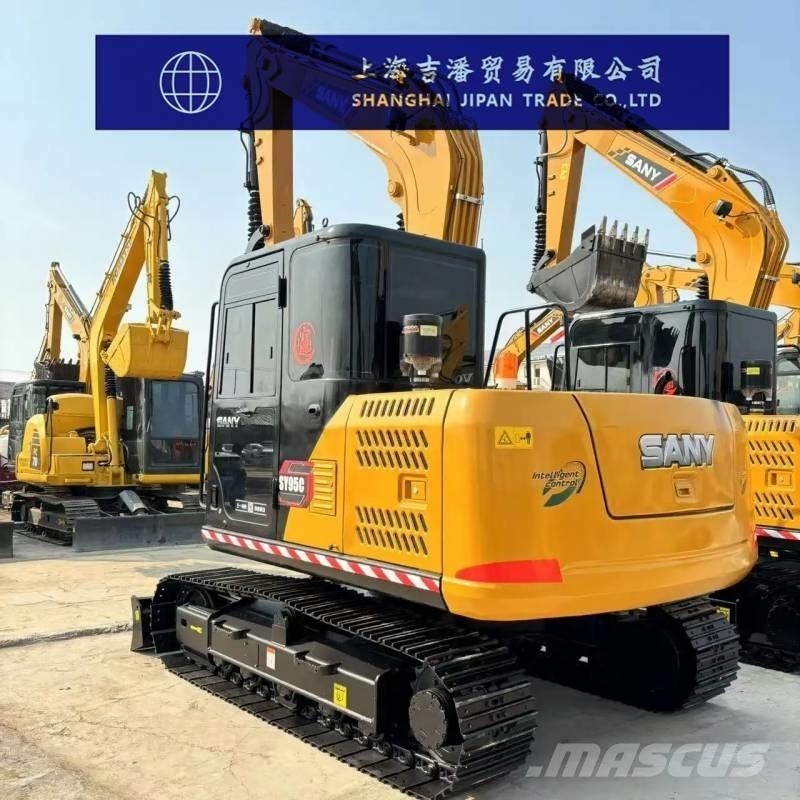

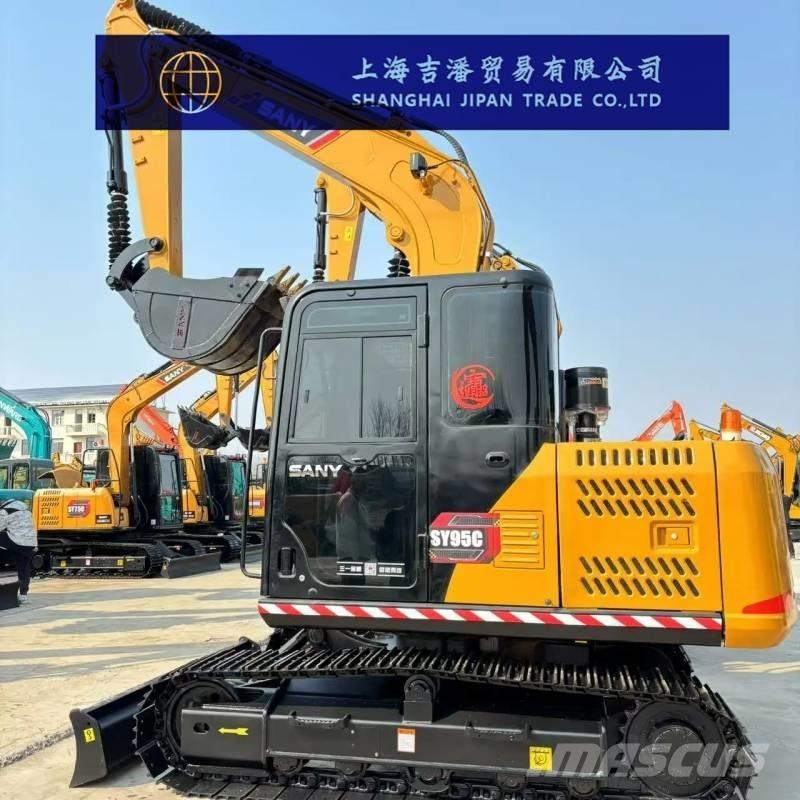

새니 SY 95 C

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Specification Power: Traditional power Manufacturer: Domestic Bucket: Backhoe Tonnage (tons)9 The working weight of the entire machine (kg) is 9180 Bucket capacity (m³)0.2-0.45 (0.39) Performance Rotational speed (rpm) : 11.2 Walking speed (km/h)5.0/2.9 Climbing ability (%)70% (35°) Ground pressure (Kpa) : 38.6 Bucket digging force (kN)63.6 The digging force of the bucket arm (kN) is 46.8 Power system Engine model: Kubota V3800DI-T-E3B Rated power (kw/rpm) : 60.7/2200 Maximum torque (N.m) : 305.4/1600 Displacement (L)3.769 Number of cylinders (4) The cooling method is water cooling Oil capacity Fuel tank (L)160 Hydraulic oil tank (L)120 Engine oil change volume (L)12 Main body size The total transportation length (mm) is 6560 The total transportation width (mm) is 2260 The total transportation height (mm) is 2650 The width of the vehicle (mm) is 2160 The total length of the track (mm) is 2980 Track plate width (mm) : 450 Track gauge (mm) : 1810 Minimum ground clearance (mm) : 360 The minimum turning radius (mm) of the front working device is 1990 Rear end turning radius (mm)1885 The maximum height (mm) at the minimum turning radius is 5700 Number of idler wheels (single side) (units)1 Number of track plates (single side) (pieces)41 Number of idler wheels (on one side) (5 Scope of work Maximum excavation radius (mm) : 6660 Maximum excavation depth (mm) : 4330 Maximum excavation height (mm) : 7260 Maximum unloading height (mm) : 5210 Maximum vertical excavation depth (mm) : 3080 Width × height of the bulldozer board (mm)420 (height) The bulldozer shovel lifts or deepens (mm)330/330
