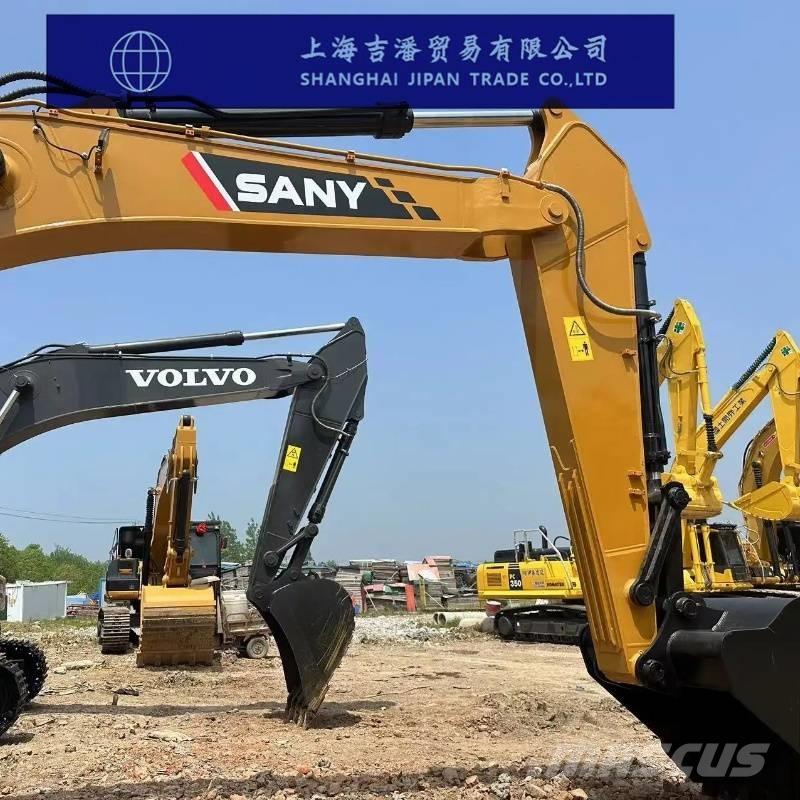

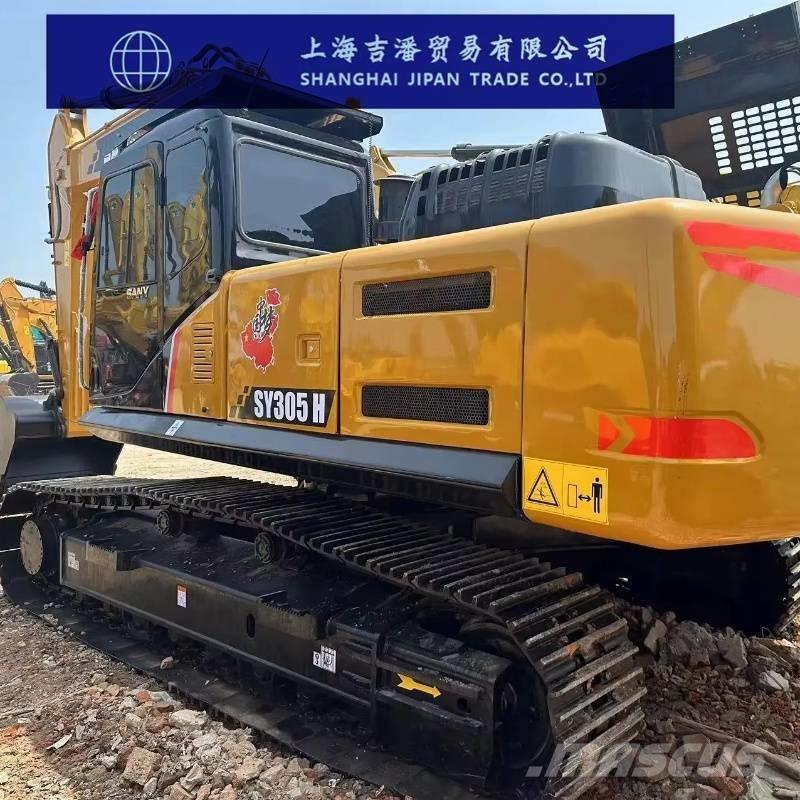

새니 sy 305

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Nina Whatsapp: +86 18055199047 Mobile:+86 18055199047 Wechat:18055199047 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs

Basic Parameters Overall Dimensions: Transportation length 10,667mm, transportation width 3,190mm, transportation height 3,470mm. Weight: Operating weight 32,265kg. Engine: Manufactured by Cummins, model QSL 9-C280 (6-cylinder). Rated power 209kW, maximum torque 1472N·m, displacement 6.7L, emission standard Stage V. Tracks: Overall length 4,840mm, track gauge 2,590mm, track height 1,025mm. Standard track shoe width 700mm, optional 600/800mm. Working Range Parameters Maximum Digging Depth: 6,815mm. Maximum Digging Height: 10,497mm. Maximum Digging Radius: 10,870mm. Arm Length: 3,200mm. Stick Digging Force: 153kN. Bucket Digging Force: 204kN. Hydraulic System Parameters Main Pump Type: Generally equipped with high-performance hydraulic pumps from brands like Kawasaki, with a maximum flow rate of 2×280L/min. Hydraulic Oil Tank Capacity: 300L. Electrical System Parameters Battery: Typically uses a large-capacity lead-acid battery to meet the needs of starting and electrical system operation. Display Screen: Equipped with a 10-inch touchscreen, which can display various machine parameters, working modes, fault diagnosis information, etc., as well as images from rear and side-view cameras. Comfort and Safety Parameters Cab: ROPS/FOPS certified cab, equipped with an ergonomic adjustable and heated seat, providing good support and comfort. Visibility: Equipped with rear and side view cameras for panoramic visibility, offering all-round viewing angles. Alarm Devices: Equipped with a travel alarm, green safety belt, and rotating warning light to improve visibility, draw attention, and ensure safety. Work Lights: LED work lights provide maximum visibility in low-light conditions. Other Parameters Fuel Tank Capacity: 540L. Radiator Capacity: 36L. Bucket Capacity: 1.7m³.
