새니 35 U

Company name:LONG WAY TRADING CO.,LTD Address:1898th Zaoxiang road ,Anyang City ,Henan province,China Contact: Nancy Tel : +8617739124690 WhatsApp:0086 13636464634 Wechat:17739124690 Email:

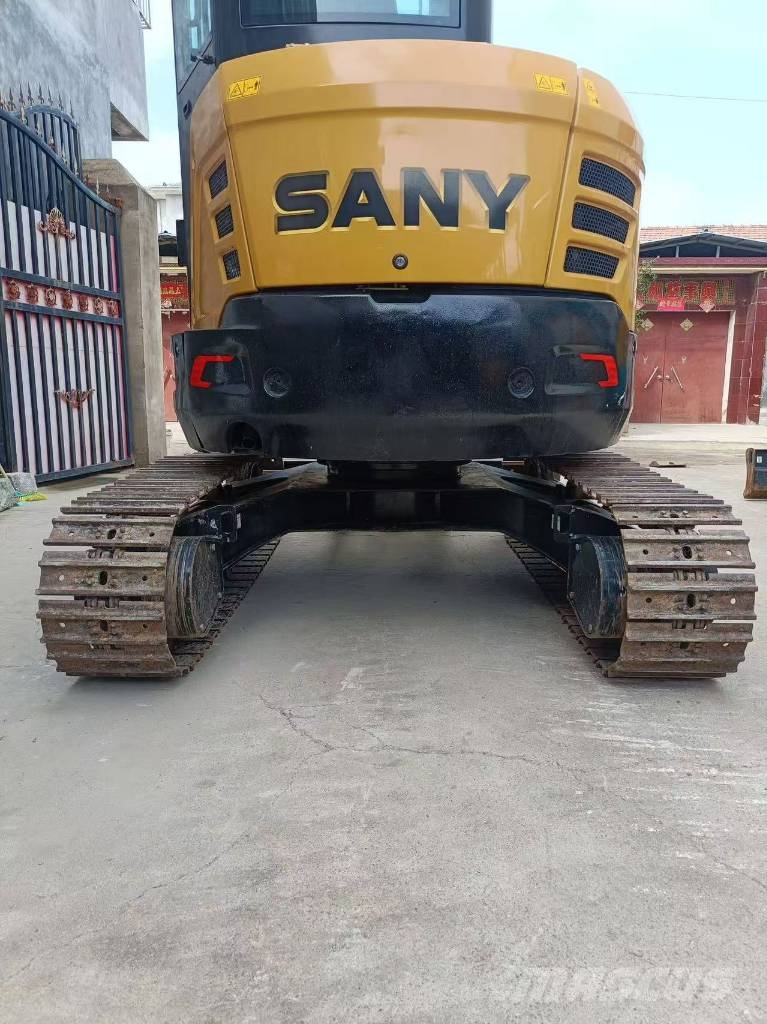

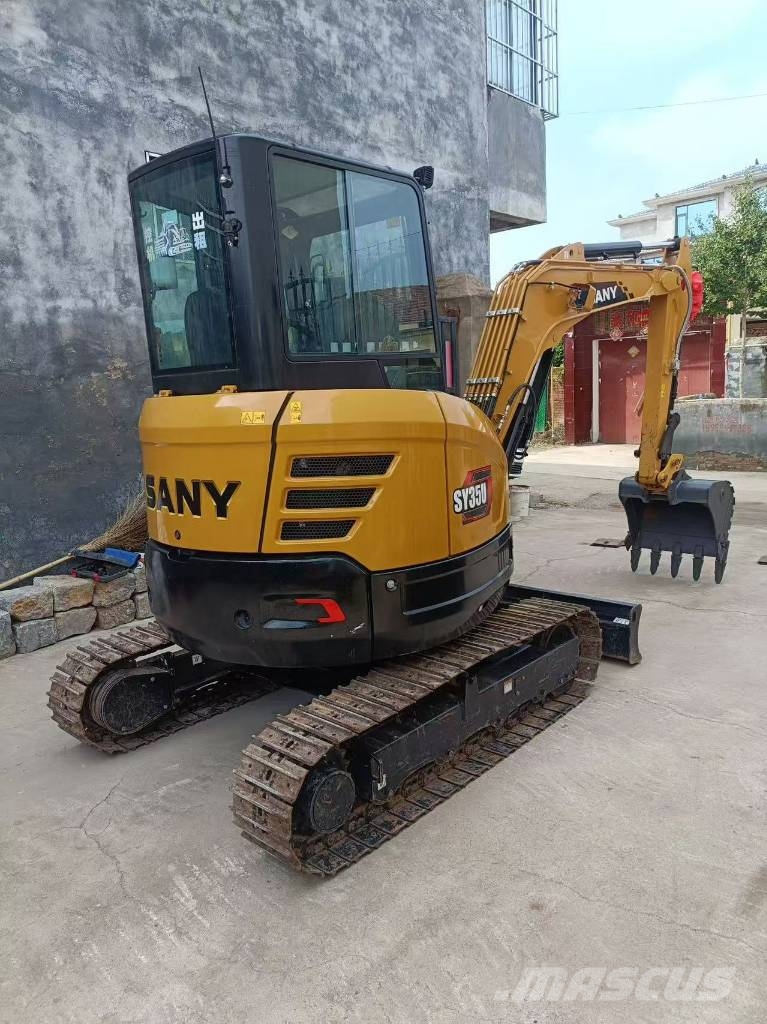

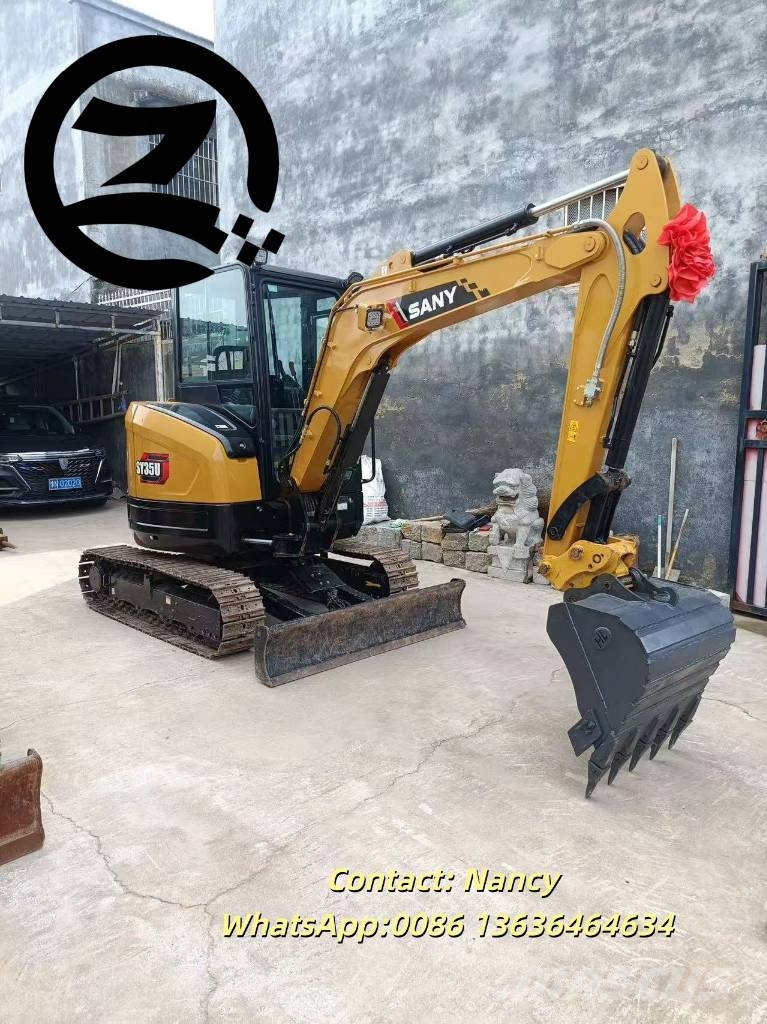

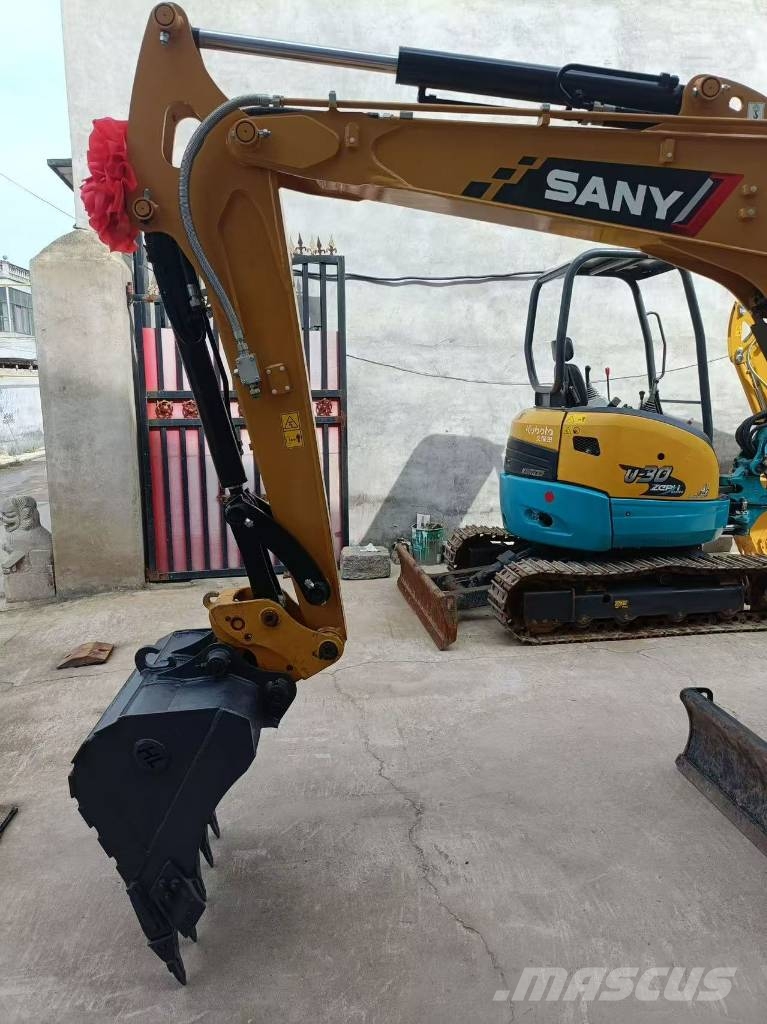

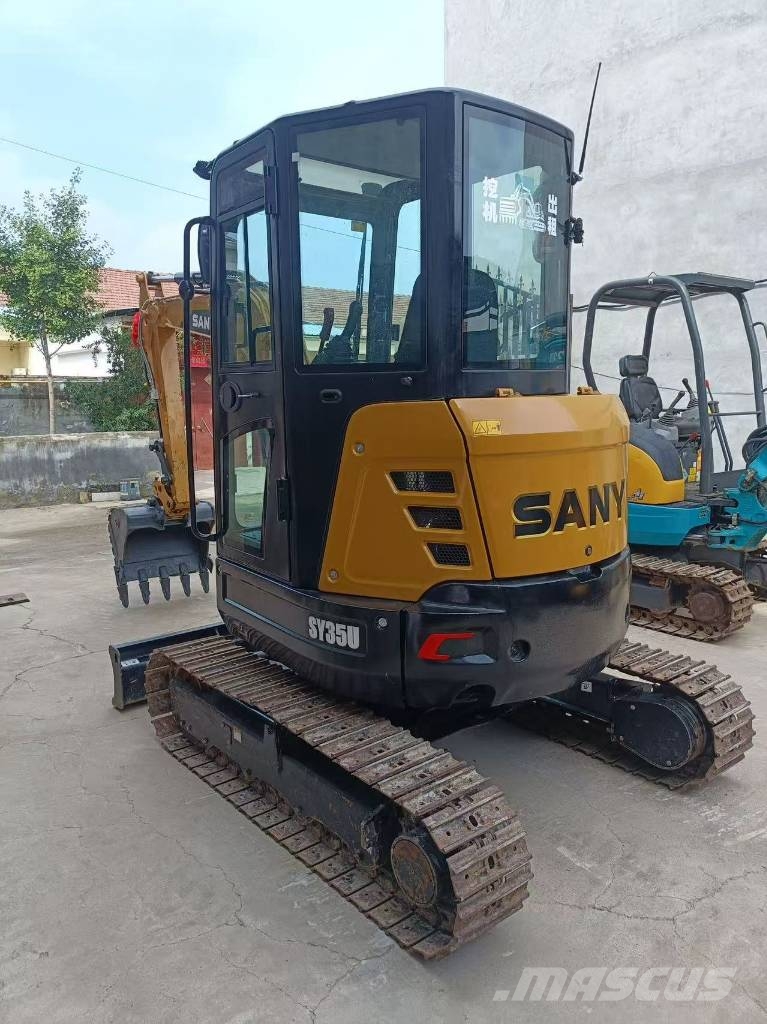

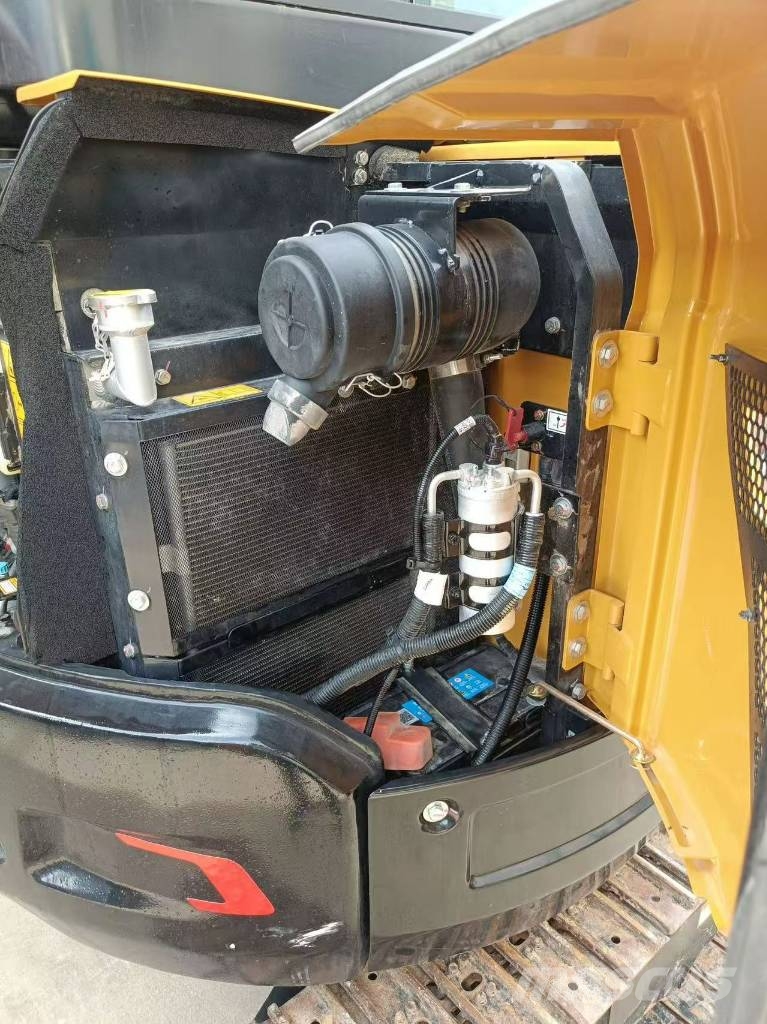

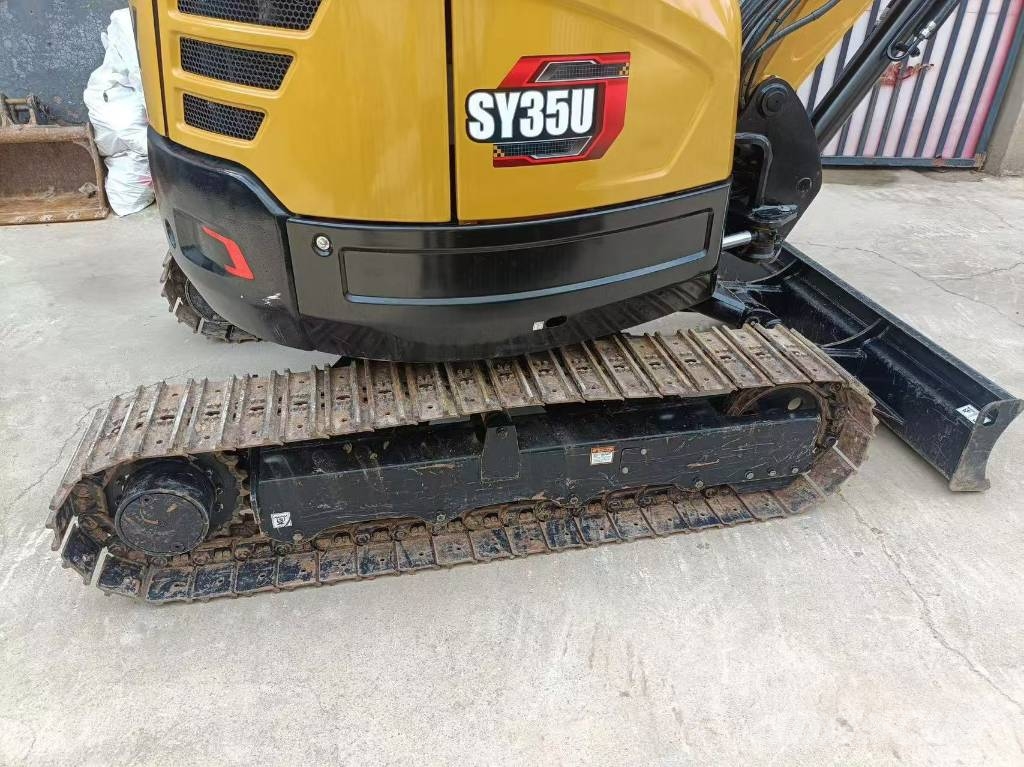

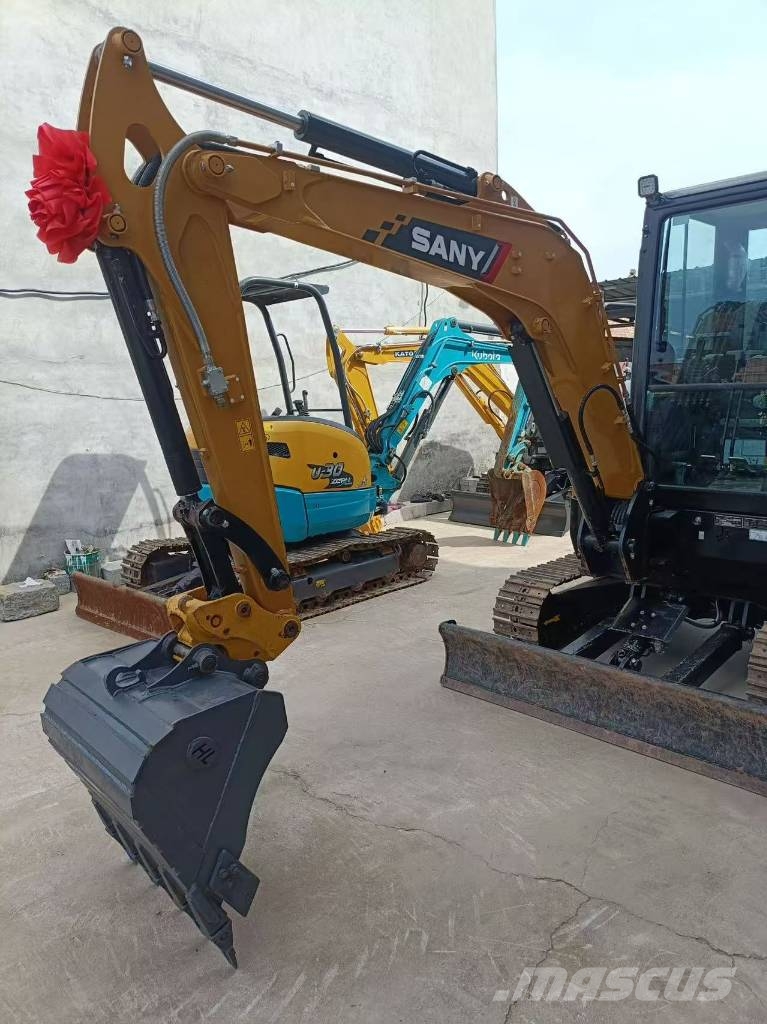

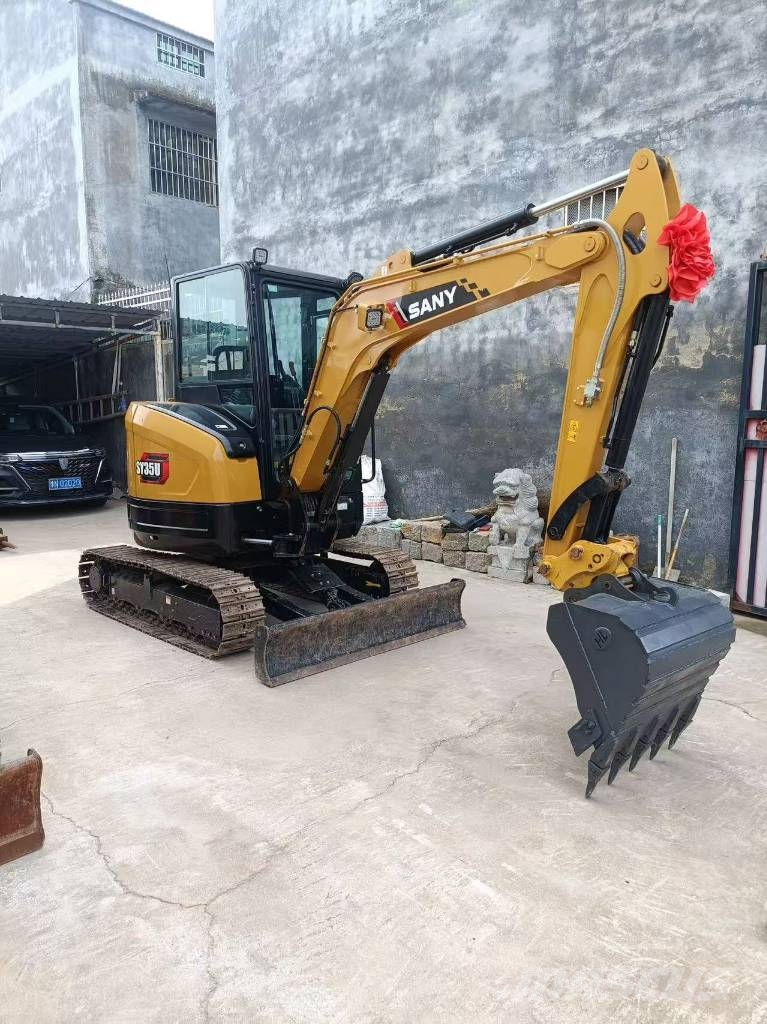

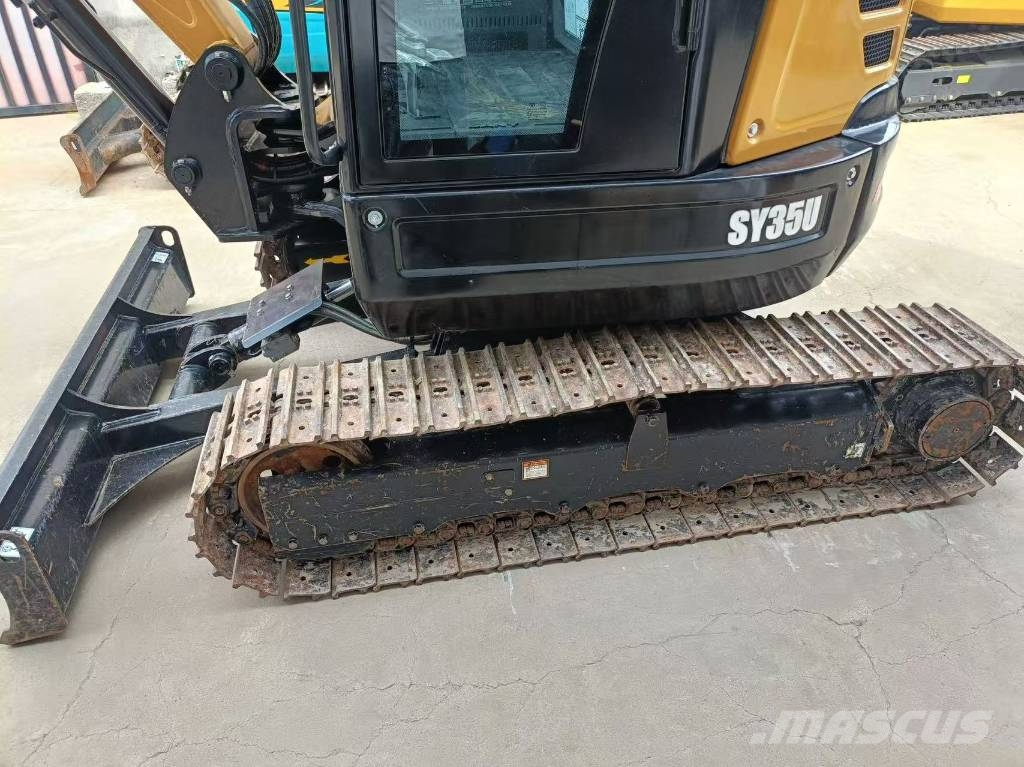

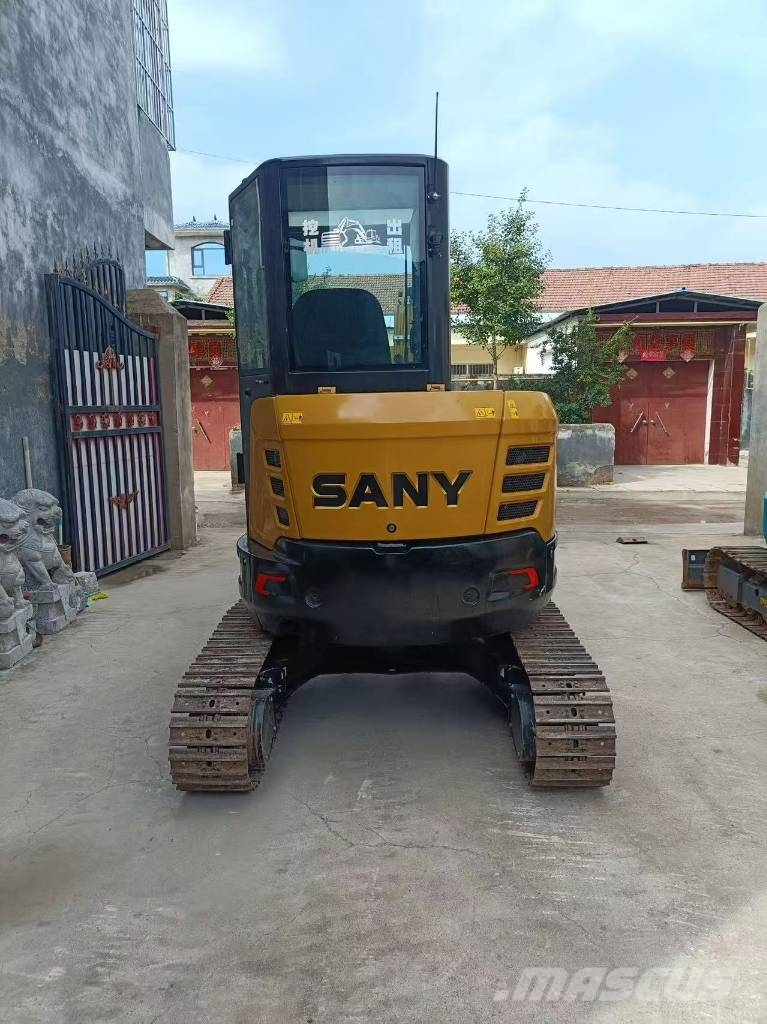

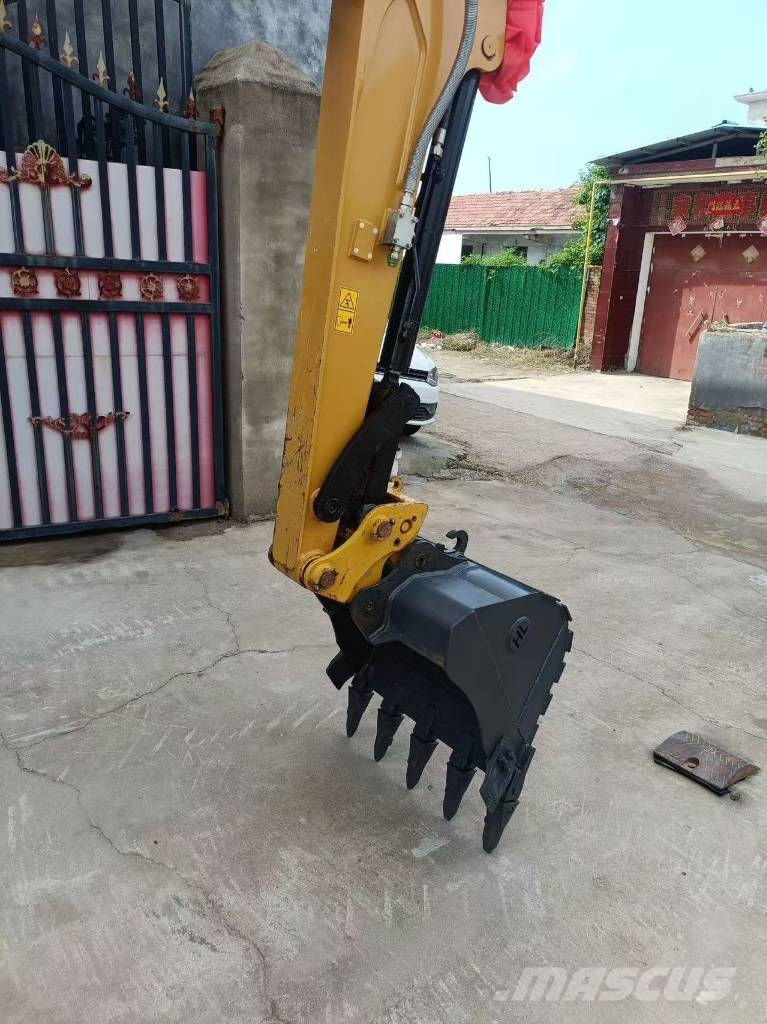

# English Version ## SANY SY35U 3.5 ton zero tail swing mini crawler excavator, made in China. > > Emission standard: EU Stage IIIA, CE certified, no DPF. Popular export model for Middle East, Africa and Southeast Asia. ### Basic Machine Specifications - Operating weight: **3830 kg (cab + 300mm rubber track + dozer blade)** - Counterweight: **300 kg** - Standard bucket capacity: **0.12 m³** - **Bucket cutting edge length: 630 mm** - Boom length: 2540 mm; Arm length: 1400 mm - Swing speed: 9 rpm - Travel speed: Low 2.4 km/h / High 4.4 km/h - Maximum traction force: 36.8 kN; Gradeability: 30° - Bucket digging force: 30.4 kN; Arm digging force: 18.2 kN ### Engine - Model: **Yanmar 3TNV88F, 3-cylinder water-cooled direct injection diesel** - Displacement: 1.642 L - Rated power: 18.2 kW @2200 rpm (ISO9249) - Max torque: 91.4 N·m @1320 rpm - Fuel tank: **50 L** - Fuel consumption reference: 2.7～3.7 L/h under normal working conditions ### Hydraulic System (Load Sensing) - Main pump: Variable piston pump, max flow 88 L/min - Main relief pressure: 24.5 MPa - **1st auxiliary circuit (breaker line): Max 70 L/min @24.5 MPa** - **2nd auxiliary circuit (hydraulic thumb): Max 20 L/min @24.5 MPa** - Hydraulic tank: 40 L > > Dual auxiliary lines standard, ready for breaker & grapple. ### Track Shoe Width - Standard rubber track: **300 mm** - Optional steel track: 300 mm > > Overall machine width: 1720 mm ### Transport Dimensions (with cab & dozer blade, rubber track) - Length: 4910 mm - Width: 1720 mm - Height: 2515 mm ### Digging Envelope (standard boom & arm) - Max digging reach: 5465 mm - Max digging depth: 3105 mm - Max dumping height: 3460 mm
