구보다 KX 183

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

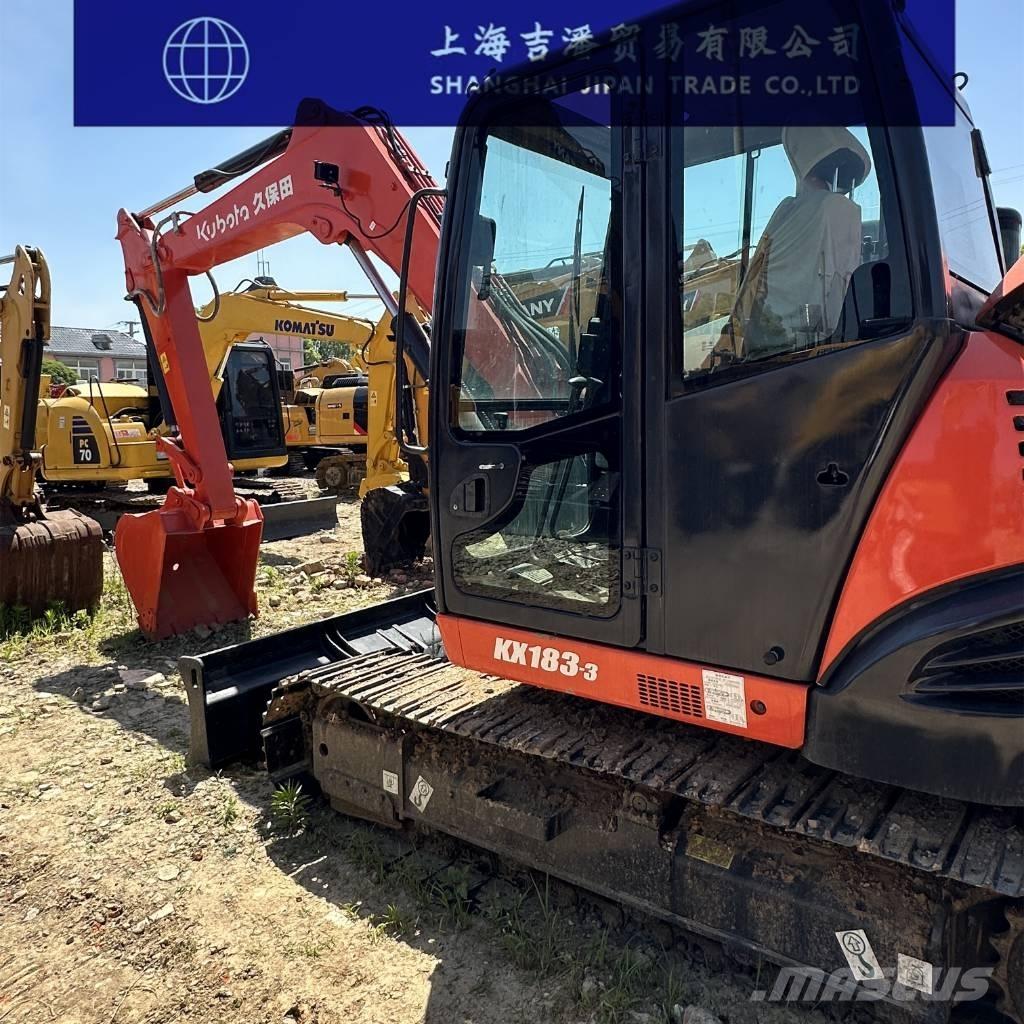

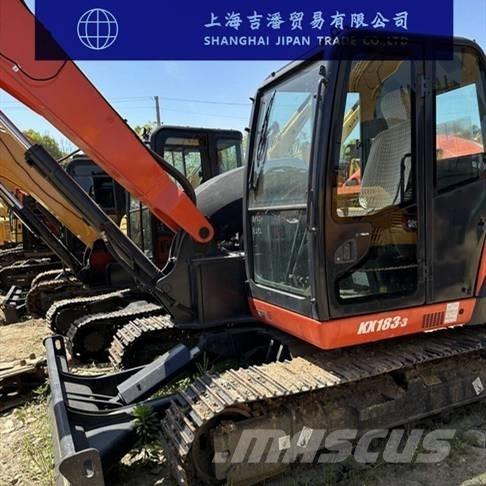

Parameter configuration of Kubota KX183-3 excavator Specification The working weight of the entire machine (kg) is 8350 Bucket capacity (m³)0.31 Origin: Japan Tonnage (tons)8 Joint venture/import by manufacturers Power Traditional Power Bucket backhoe Joint venture/import by manufacturers Power Traditional Power Performance Rotational speed (rpm) : 9.5 Walking speed (km/h)2.7/4.9 Climbing ability (%) : 30 Bucket digging force (kN)65.2 Power system Engine model: Kubota Rated power (kw/rpm)47.8/2000 Displacement (L)3.331 The cooling method is water cooling Hydraulic system The main pump types include 2 variable pumps and 1 gear pump Walking hydraulic motor type: Piston hydraulic motor: 2F The rotary hydraulic motor type is a piston hydraulic motor Oil capacity Fuel tank (L)115 Main body size Total transportation length (mm) : 6450 The total transportation width (mm) is 2200 The total transportation height (mm) is 2530 The total height of the cab (mm) is 2530 The total length of the track (mm) is 2840 Track plate width (mm) : 450 (steel track) Track gauge (mm) : 1750 Minimum ground clearance (mm)364 The minimum turning radius (mm) of the front working device is 2410 The rear end turning radius (mm) is 1460 Scope of work Maximum excavation radius (mm) : 7010 The maximum excavation radius of the shutdown face (mm) is 6850 Maximum excavation depth (mm) : 4290 Maximum excavation height (mm) : 7040 Maximum unloading height (mm) : 4980 The maximum vertical excavation depth (mm) is 3490 The width × height (mm) of the bulldozer board is 2200×500 The bulldozer shovel lifts or deepens (mm)470/530
