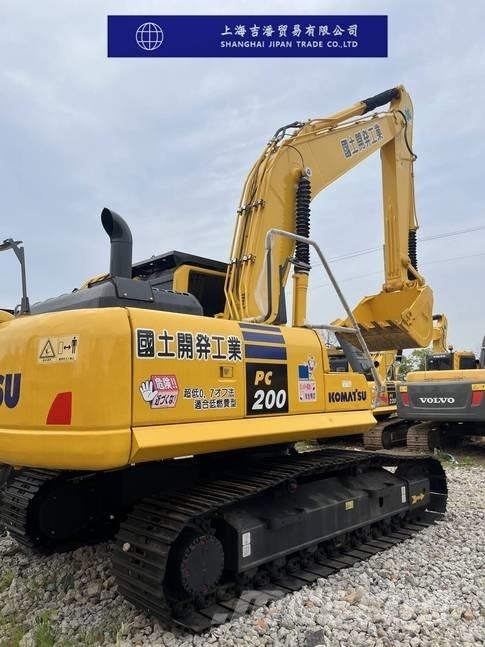

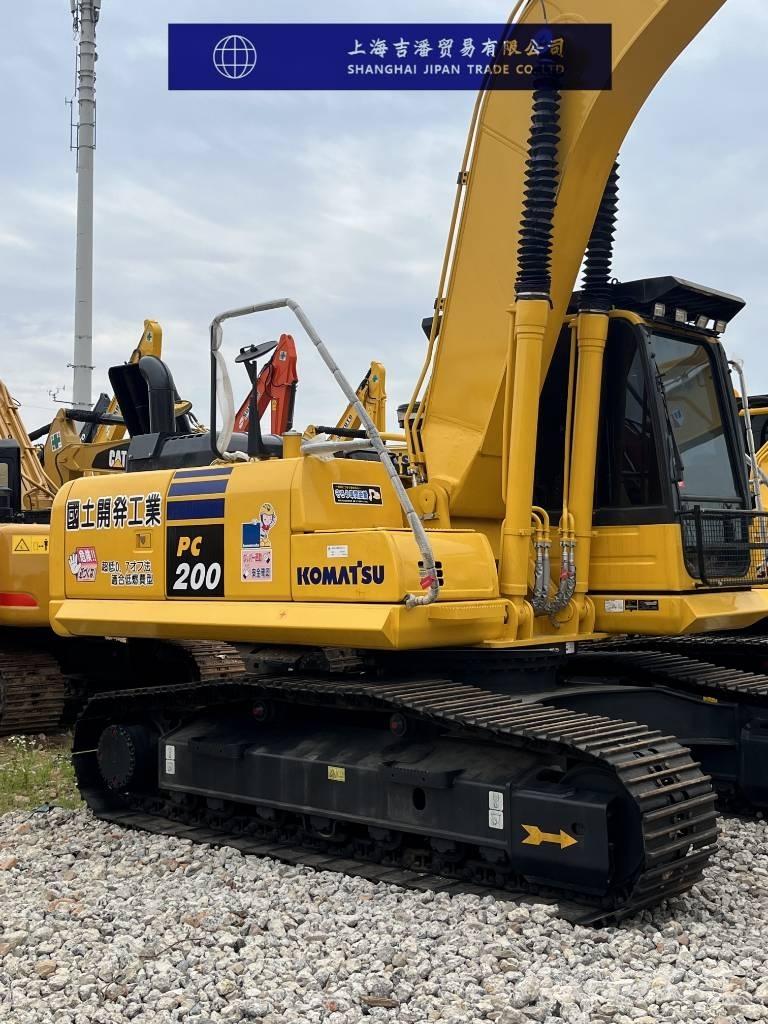

코마츠 PC 200
부가세 제외가격
10
즐겨찾기
공유
검색 저장출력
INFO
제품군
대형 굴삭기 29톤 이상
제작사/모델
코마츠 PC 200
제작년도
2023
사용시간
651 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
097C6794
가격
화폐 선택
세부정보
재고번호
1
동력 형식
디젤
제조번호
1
기존 차주 수
1
최근검사
2025-09-06
하부 구성품 상태
good condition
엔진
Original
총 중량
20253 kg
엔진 출력
107 kW (145 마력)
엔진 제조사
Original
등록번호
1
매연 등급
Stage V / Tier V
버켓 용량
0.80 m3
트랙 폭
600 mm
최고 속도
12.4 km/h
장비크기
9480 x 3000 x 2985 mm
오리지널 컬러
Yellow
디퍼/스틱 길이
2410 mm
상태 정보/보증
1 year
제품 국가
일본
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 13696501072
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
부속품
라인 파열 밸브 붐 -> 안전선 파열 밸브 - 붐/호이스트
라인 파열 밸브 디퍼 -> 안전선 파열 밸브 - 디퍼/스틱
냉/난방 조절
Engine pre-filter
스켈레톤 버킷
회전 비컨
추가 장비
조이스틱 컨트롤
표준 굴착 버켓
기타 정보
Komatsu PC200-7 excavator parameter configuration
specification
The working weight of the whole machine (kg) is 20253
Bucket capacity (m³) 0.8
Stick length (mm) 1840/2410
Origin: Japan
Tonnage (tons) 20
Bucket backhoe
Joint ventures/imports
Power: Traditional power
Bucket backhoe
Joint ventures/imports
Power: Traditional power
performance
Travel speed (km/h) 12.4
Bucket digging force (kN) 149
Stick digging force (kN) 145
dynamical system
Engine model Komatsu SAA6D102E-2
Rated power (kw/rpm) 107
Displacement (L) 5.883
Bore × stroke (mm) 102×120
Cooling method: Water cooling
Working form 4-stroke, water-cooled, direct injection
Hydraulic system
Main pump type variable piston pump
The maximum flow rate of the main pump (l/min) is 2*214
Travel Hydraulic Circuit (Mpa) 37.3
Slewing hydraulic circuit (Mpa) 28.9
Control Hydraulic Circuit (Mpa) 3.2
Oil capacity
Fuel tank (L) 400
Hydraulic Tank (L) 143
Engine oil change volume (L) 24
Coolant (L) 22.4
Body size
Total length of transport (mm) 9480
Total Transport Width (mm) 3000
Total height of transport (mm) 2985
Cab Total Height (mm) 2095
Track grounding length (mm) 3270
Total track length (mm) 4080
Track shoe width (mm) 600
Total track width (mm) 3000
Rear end slewing radius (mm) 3270
Scope of work
Maximum digging radius (mm) 9380
The maximum excavation radius of the stopping surface (mm) is 8660
Maximum digging depth (mm) 5380
Maximum digging height (mm) 9800
Maximum unloading height (mm) 6890
