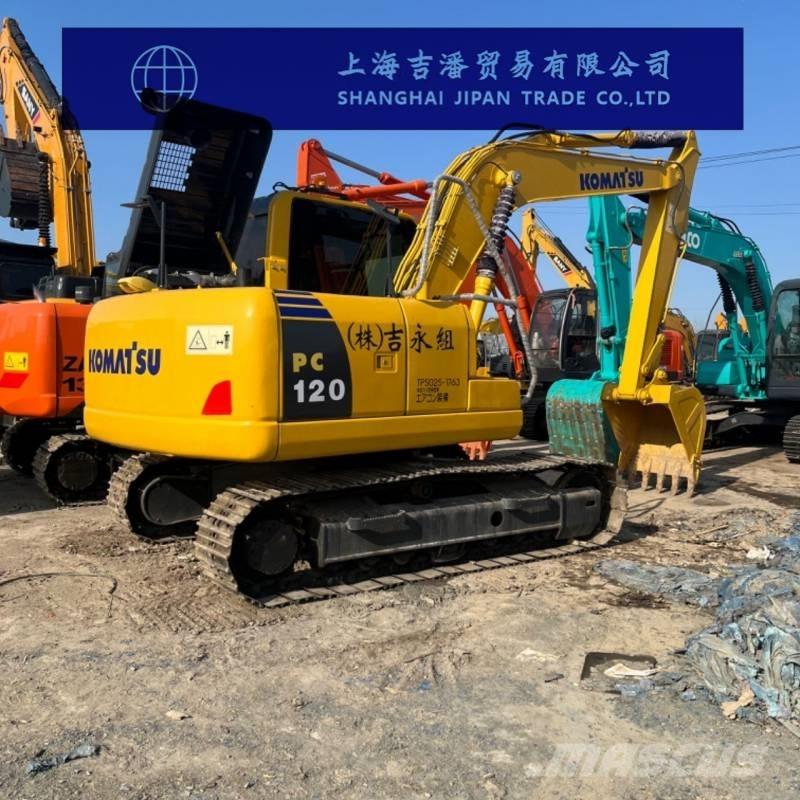

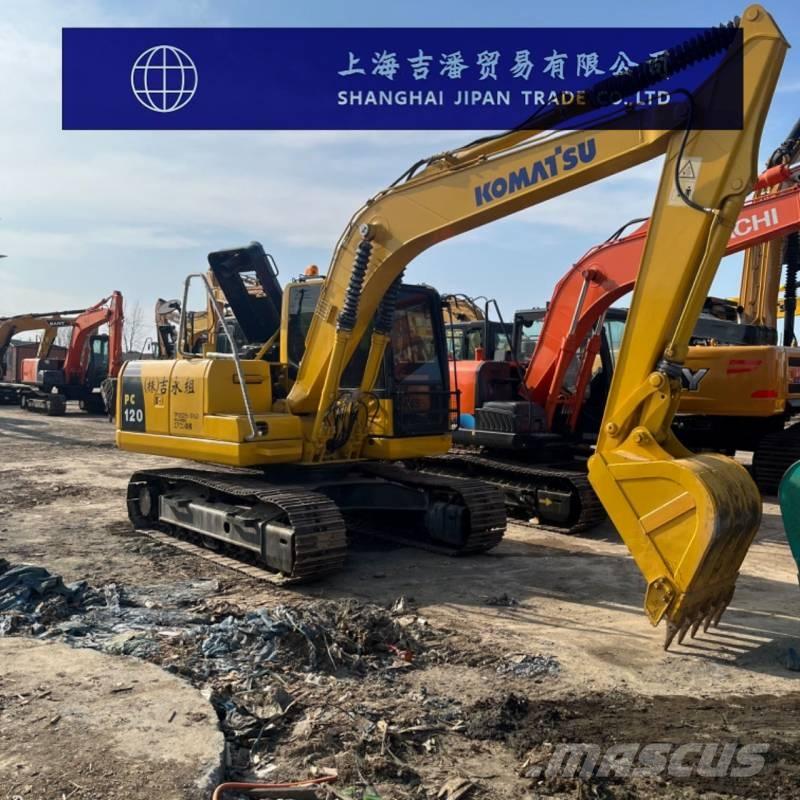

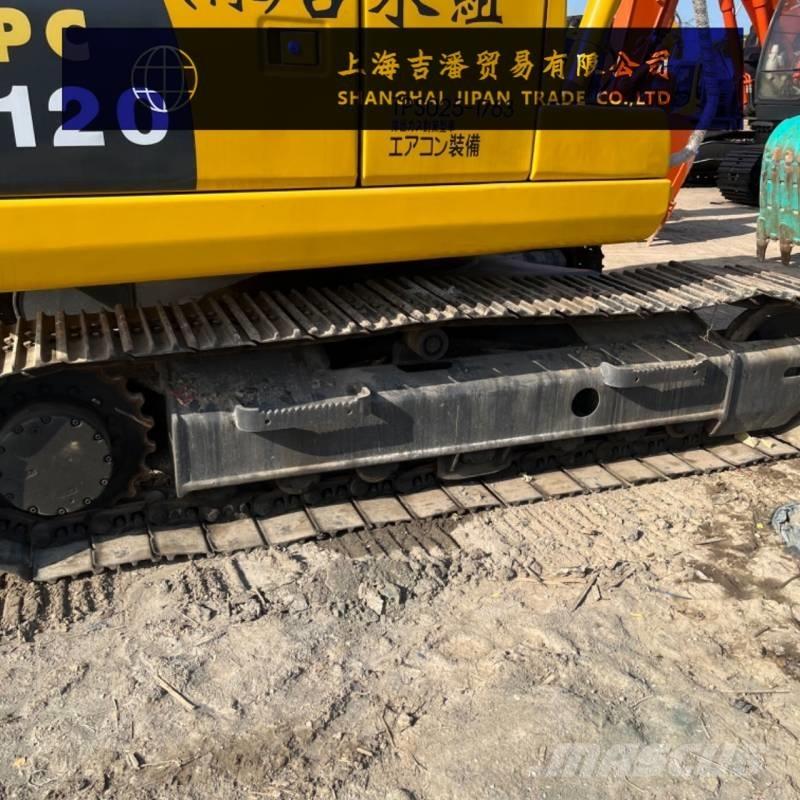

코마츠 PC 120

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Specification The overall working weight of the machine (kg) is 12,030 Bucket capacity (m³)0.5 The length of the boom (mm) is 2100 Tonnage (tons)12 Performance Ground pressure (Kpa):0.39kg/ cm ² Rotational speed (rpm)11 Walking speed (km/h):2.7-5.5 Climbing ability (%)70/30° Bucket digging force (kN):8800 The digging force of the bucket arm (kN) is 6300 Power system Engine model: Komatsu SAA4D95LE-3 Rated power (kw/rpm)64/2200 Displacement (L)3.26 The cooling method is water cooling The working forms are direct injection, turbocharged and intercooled diesel engines Hydraulic system The maximum flow rate of the main pump (l/min) is 226L/min The working hydraulic circuit (Mpa) is 325kg/ cm ² The walking hydraulic circuit (Mpa) is 355kg/ cm ² Rotary hydraulic circuit (Mpa)295kg/ cm ² The control hydraulic circuit (Mpa) is 30kg/ cm ² Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)247 Hydraulic oil tank (L)90 Engine oil change volume (L)11 Coolant (L)13.4 Main body size The total length of transportation (mm) is 7599 The total transportation height (mm) is 2175 The total height of the cab (mm) is 2175 The ground clearance of the counterweight (mm) is 855 Track grounding length (mm):2880 The total length of the track (mm) is 3610 Track plate width (mm):500 Track gauge (mm)1990 Minimum ground clearance (mm):400 The rear end turning radius (mm) is 2110 Scope of work Maximum excavation radius (mm):8290 The maximum excavation radius of the shutdown face (mm) is 8170 Maximum excavation depth (mm):5520 Maximum excavation height (mm):8610 Maximum unloading height (mm):6170 The maximum vertical excavation depth (mm) is 4940 Maximum effective excavation depth (mm):5315 Lifting or deepening with a bulldozer (mm) no bulldozer
