코벨코 SK 135

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

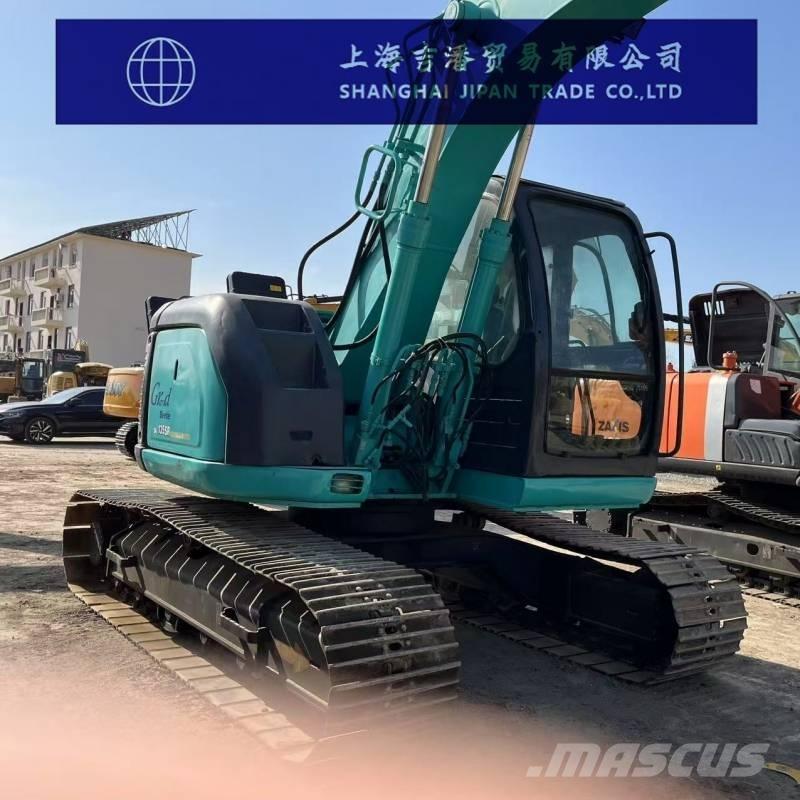

Kobelco SK135SR-2 excavator parameter configuration specification The working weight of the whole machine (kg) is 13800 Bucket capacity (m³) 0.5 Tonnage (tons) 13 Joint ventures/imports Power: Traditional power Bucket backhoe Joint ventures/imports Power: Traditional power performance Rotation speed (rpm) 11.5 Travel speed (km/h) 5.6/3.4 Climbing ability (%) 70% (35 degrees) Bucket digging force (kN) 90.1 Bucket digging force (kN) 64.4 dynamical system Engine model Mitsubishi MITSUBISHI D04FR-KDP2TAAC Rated power (kw/rpm) 69.2 Displacement (L) 4.3 Number of cylinders (units) 4 Bore × stroke (mm) 102×130 Cooling method: Water cooling Working form: direct injection, water cooling, four-stroke, turbocharging, built-in intercooling Hydraulic system Main pump type: Duplex variable displacement axial piston pump Pilot gear pump The maximum flow rate of the main pump (l/min) is 2×130 Traveling hydraulic motor type: two sets of two-speed variable speed plunger motor Rotary hydraulic motor type: axial plunger type Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing hydraulic circuit (Mpa) 28 Control Hydraulic Circuit (Mpa)5 Boom cylinder - number × bore × stroke (mm) 2×100×1092 Bucket Cylinder - Number of Numbers× Bore × Stroke (mm) 115×1120 Bucket cylinder - number × bore × stroke (mm) 95×903 Oil capacity Fuel tank (L) 200 Hydraulic Oil Tank (L) 98.5 Hydraulic System (L) 140 Engine oil change volume (L) 18.5 Coolant (L) 14 Body size Total length of transport (mm) 7410 Total Transport Width (mm) 2490 Total height of transport (mm) 2820 Track grounding length (mm) 2870 Track shoe width (mm) 500 Minimum ground clearance (mm) 440 The minimum turning radius of the front working device (mm) is 2000 Rear end slewing radius (mm) 1490 Scope of work Maximum digging radius (mm) 8340 The maximum excavation radius of the stopping surface (mm) is 8190 Maximum digging depth (mm) 5520 Maximum digging height (mm) 9190 Maximum unloading height (mm) 6740 Maximum vertical digging depth (mm) 4890
