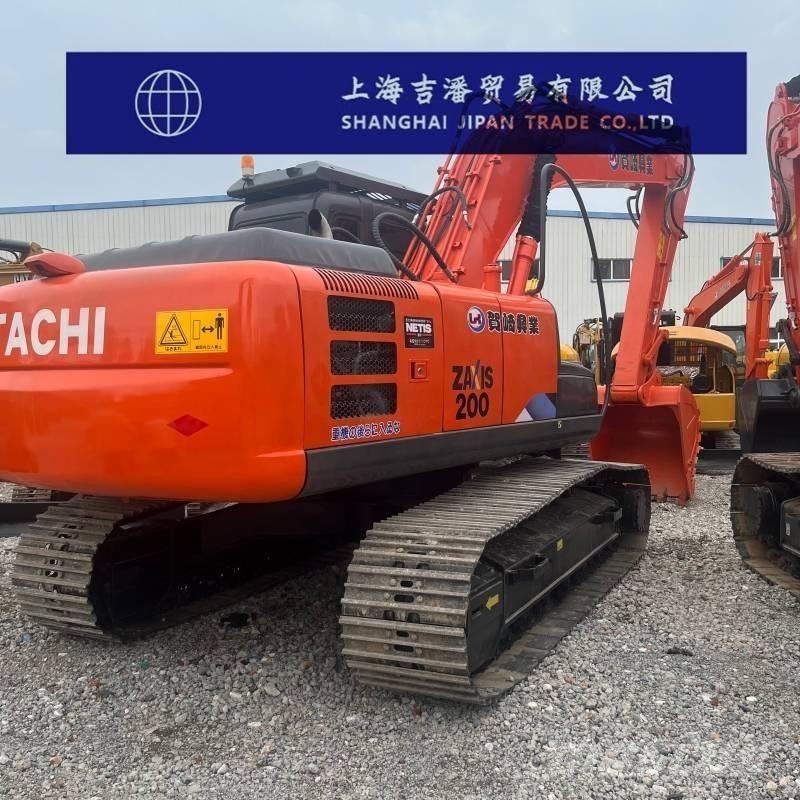

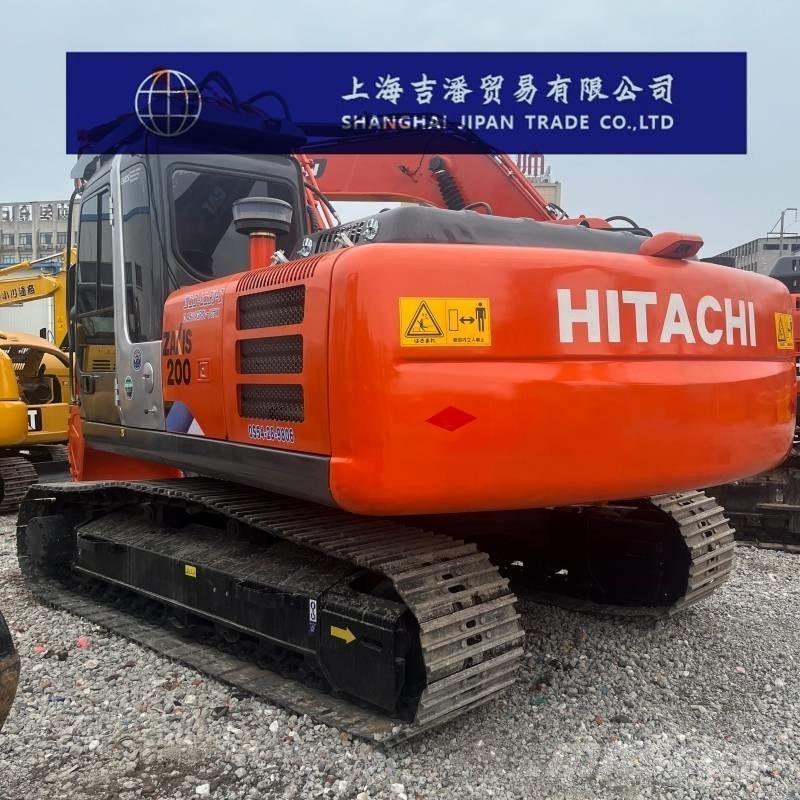

히타치 ZX 200

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method: Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.If you don't have your own shipping agent, we can ship on your behalf and offer you the lowest possible shipping rates.

Parameter configuration of Hitachi ZX200 excavator Specification The overall working weight of the machine (kg) is 20,300 Bucket capacity (m³):0.8 Origin: Japan Tonnage (tons)20 Performance Rotational speed (rpm):13.3 Walking speed (km/h):3.5/5.5 Climbing ability:70% or 35 degrees Ground specific pressure (Kpa):45 Bucket digging force (kN)151 The digging force of the boom (kN) is 109 Power system Engine model: ISUZU AI-4HK1X Rated power (kw/rpm)122/2000 Displacement (L)5.193 Number of cylinders:4 The cooling method is water cooling The working mode is direct injection, turbocharging, with intercooler Hydraulic system Main pump type variables:2 plunger pumps + 1 gear pump The main overflow set pressure (Mpa) is 34.3 Walking hydraulic motor type: Variable piston pump ×2 Rotary hydraulic motor type: quantitative plunger pump ×1 Working hydraulic circuit (Mpa)34.3 Walking hydraulic circuit (Mpa)34.3 Rotary hydraulic circuit (Mpa)32.4 Pilot oil circuit (MPa)3.9 Is the hydraulic crushing pipeline standard? No Oil capacity Fuel tank (L)400 Hydraulic oil tank (L)135(full tank 200) Engine oil change volume (L)23 Main body size The total transportation length (mm) is 9520 The total transportation width (mm) is 2860 Total transportation height (mm):3010 The total height of the cab (mm) is 2950 The ground clearance of the counterweight (mm) is 1030 Track grounding length (mm)3370 The total length of the track (mm) is 4170 Track plate width (mm):600 The total width of the tracks (mm) is 2800 Track gauge (mm):2200 Minimum ground clearance (mm):450 Rear end turning radius (mm):2750 Scope of work Maximum excavation radius (mm):9920 Maximum excavation depth (mm):6670 Maximum excavation height (mm):10040 Maximum unloading height (mm):7180 The maximum vertical excavation depth (mm) is 5990 Lifting or deepening with a bulldozer (mm) no bulldozer
