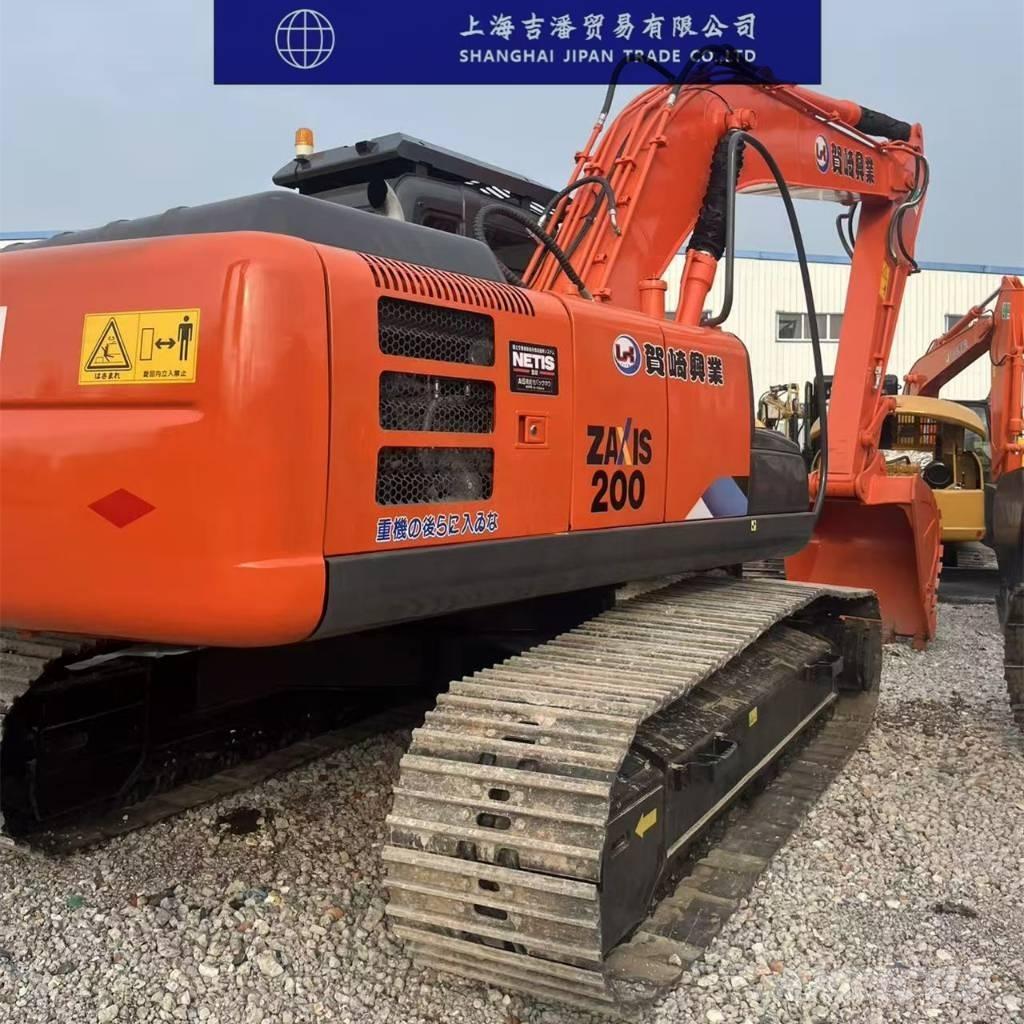

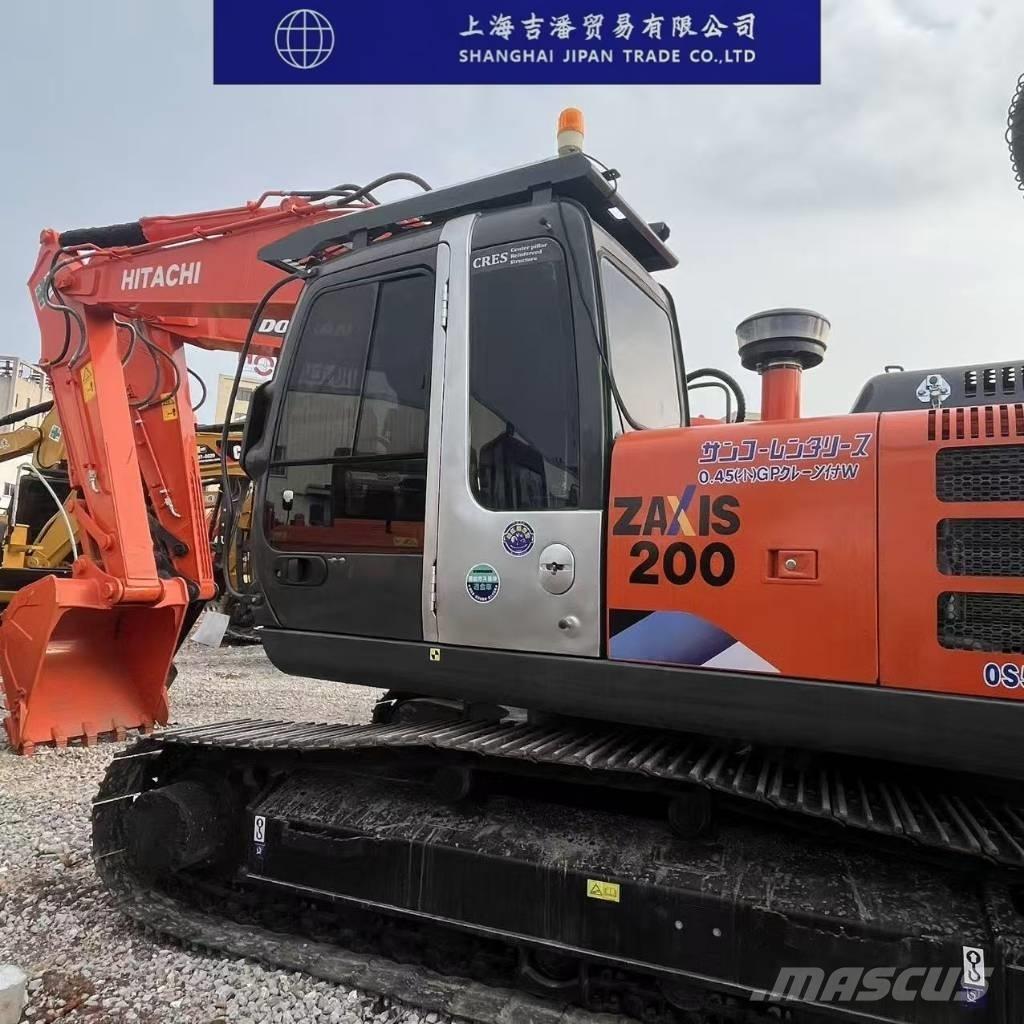

히타치 ZX 200 LC

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours:24 hours, holidays and Sundays Contact: Lily Whatsapp: +86 13696501072 Mobile:+86 17756597429 Wechat:17756597429 Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Hitachi ZX200-5A Excavator Parameter Configuration specification Power: Traditional power Joint ventures/imports Bucket backhoe Tonnage (tons) 20 The working weight of the whole machine (kg) is 20200-20300 Bucket capacity (m³) 0.91~1.0 Boom length (mm) 5680 Stick length (mm) 2910 performance Rotational speed (rpm) 13.5 Slewing torque (Nm) 68 Travel speed (km/h) 5.5/3.5 Climbing ability (%) 70 Grounding specific pressure (Kpa) 45 Bucket digging force (kN) 158 Bucket digging force (kN) 114 dynamical system Engine model: Isuzu GI-4HK1XKSA-02 Rated power (kw/rpm) 113/2000 Maximum torque (N.m) 638/1500 Displacement (L) 5.193 Number of cylinders (units) 4 Bore × stroke (mm) 115×125 Cooling method: Water cooling Working form: 4-stroke, water-cooled, electronically controlled direct injection, turbocharged, intercooled Hydraulic system Main pump type: 2 variable axial piston pumps, 1 gear pump Slewing hydraulic motor type 1 swash disc type plunger motor Traveling hydraulic motor type 2 variable swash disc type plunger motor The maximum flow rate of the main pump (l/min) is 2×212 30.2 Pilot oil circuit (MPa) 3.9 Working hydraulic oil circuit (Mpa) 34.3 Traveling Hydraulic Circuit (Mpa) 34.3 Slewing Hydraulic Circuit (Mpa) 32.3 Boom cylinder - number × bore × stroke (mm) 2×120×85 Bucket cylinder - number × bore × stroke (mm) 1×135×95 Bucket cylinder - number × bore × stroke (mm) 1×115×80 Oil capacity Fuel tank (L) 400.0 Hydraulic Tank (L) 135.0 Hydraulic System (L) 31.0 Engine oil change volume (L) 23.0 Body size Total length of transport (mm) 9660 Total width of transport (mm) 2860 Total height of transport (mm) 3010 Cab overall height (mm) 2950 Track grounding length (mm) 3370 Total track length (mm) 4170 Track shoe width (mm) 600 Total Track Width (mm) 2800 Track gauge (mm) 2200 Counterweight ground clearance (mm) 1030 Minimum ground clearance (mm) 450 Rear end turning radius (mm) 2890 Number of support wheels (one side) (pcs) 2 Number of track shoes (single side) (pcs) 46 Number of support wheels (unilateral) (pieces) 7 Scope of work Maximum digging radius (mm) 9920 The maximum excavation radius of the shutdown surface (mm) is 9750 Maximum digging depth (mm) 6670 Maximum digging height (mm) 10040 Maximum unloading height (mm) 7180 Maximum vertical digging depth (mm) 5990
