두산 DX 60

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

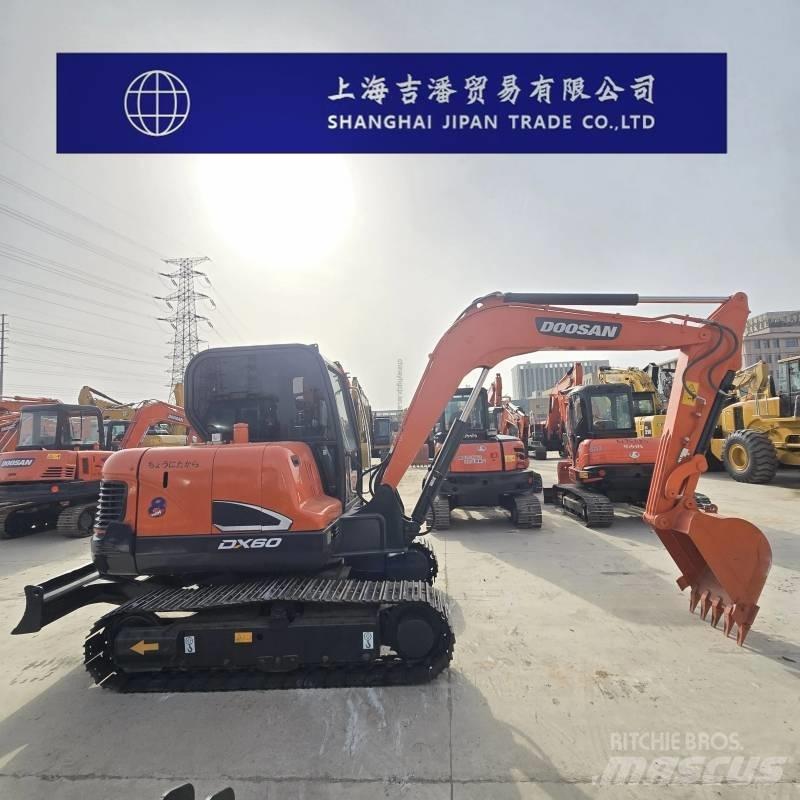

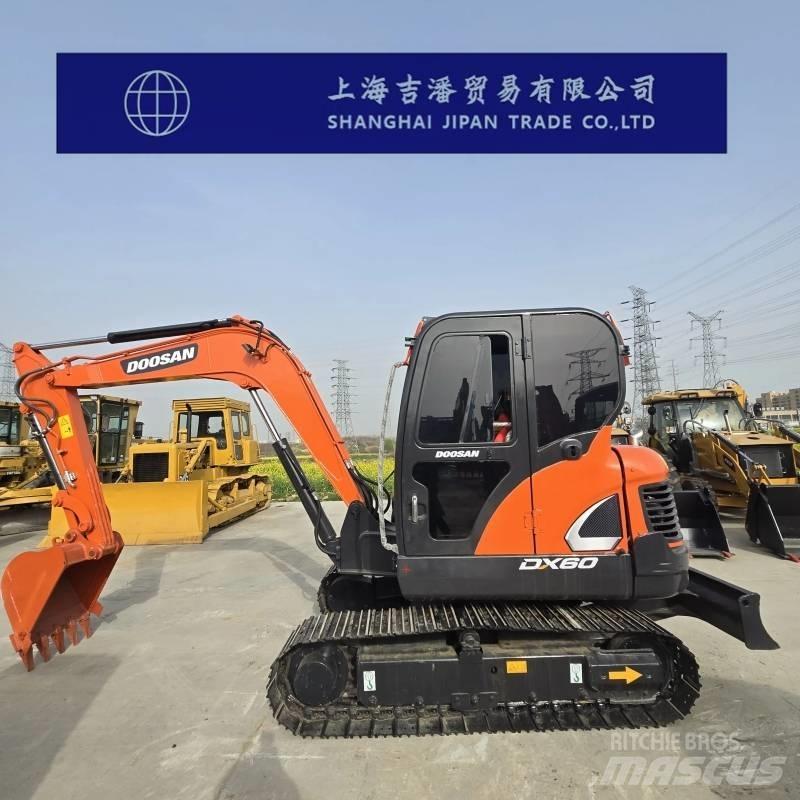

Parameter configuration of Doosan DX60 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)6 The working weight of the entire machine (kg) is 5700 Bucket capacity (m³)0.21 Boom length (mm) : 3000 The length of the boom (mm) is 1600 Origin: South Korea Performance Rotational speed (rpm) : 9.5 The rotary torque (Nm) is 20 to 22 Walking speed (km/h) 4.1/3.0 Climbing ability (%)78/30 degrees Bucket digging force (kN)44 Bucket shaft digging force (kN)28 Maximum traction force (kN)58 Power system Engine model: YANMAR 4TNV94L Rated power (kw/rpm) 39.7/2200 Maximum torque (N.m) : 20-22/1100 Hydraulic system The maximum flow rate of the main pump (l/min) is 60.5×2+36 Working hydraulic circuit (Mpa)21.6 The walking hydraulic circuit (Mpa) is 21.6 Oil capacity Fuel tank (L)115 Main body size The total length of transportation (mm) is 5850 The total transportation width (mm) is 2000 Total transportation height (mm) : 2575(to the top of the cab) The total length of the track (mm) is 2540 Minimum ground clearance (mm) : 400 The rear end turning radius (mm) is 1650 Scope of work Maximum excavation radius (mm) : 6150 Maximum excavation depth (mm) : 3805 Maximum excavation height (mm) : 5790 Maximum unloading height (mm) : 4065 Maximum vertical excavation depth (mm) : 3038 The width × height (mm) of the bulldozer board is 2000×350
