두산 DX 340

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

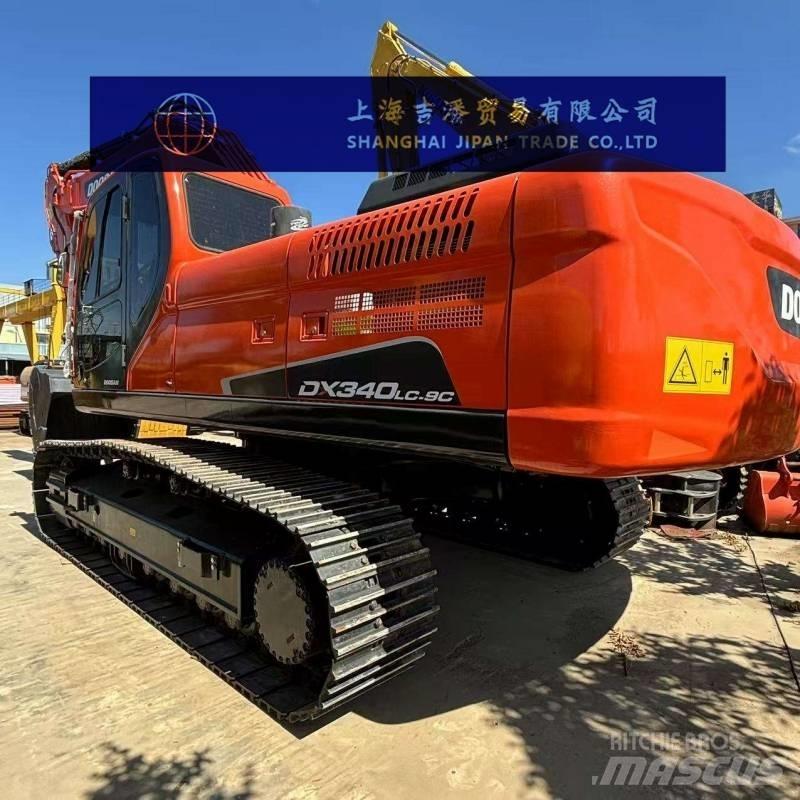

Parameter configuration of Doosan DX340LC-9C excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)34 The working weight of the entire machine (kg) is 34,100 Bucket capacity (m³) : 1.4-1.6 Boom length (mm) : 6500 The length of the boom (mm) is 2900 Performance Rotational speed (rpm)8.6 Rotary torque (Nm) : 13,500 Walking speed (km/h)5.0/3.1 Ground pressure (Kpa) : 66 Bucket digging force (kN)246 Bucket shaft digging force (kN)181 Power system Engine model: DL08 Rated power (kw/rpm)191/1800 Number of cylinders (6 Cylinder diameter × stroke (mm)108×139 Hydraulic system The maximum flow rate of the main pump (l/min) is 2×266 Boom cylinders - Number × cylinder diameter × stroke (mm)2-150×100×1430 Bucket rod cylinder - number × cylinder diameter × stroke (mm)1-170×120× 185 Bucket cylinder - number × cylinder diameter × stroke (mm)1-145×95×1300 Oil capacity Fuel tank (L)324 Main body size Total transportation length (mm) 11,405 The total transportation width (mm) is 3280 The total transportation height (mm) is 3590 The total height of the cab (mm) is 3125 The width of the vehicle (mm) is 2990 The total length of the track (mm) is 4640 Track plate width (mm) : 600 Minimum ground clearance (mm)510 The ground clearance of the counterweight (mm) is 1195 Rear end turning radius (mm)3530 Scope of work Maximum excavation radius (mm) : 11,320 The maximum excavation radius of the shutdown face (mm) is 10690 Maximum excavation depth (mm) : 7060 Maximum excavation height (mm) : 10345 Maximum unloading height (mm) : 11168 Maximum vertical excavation depth (mm) : 3970
