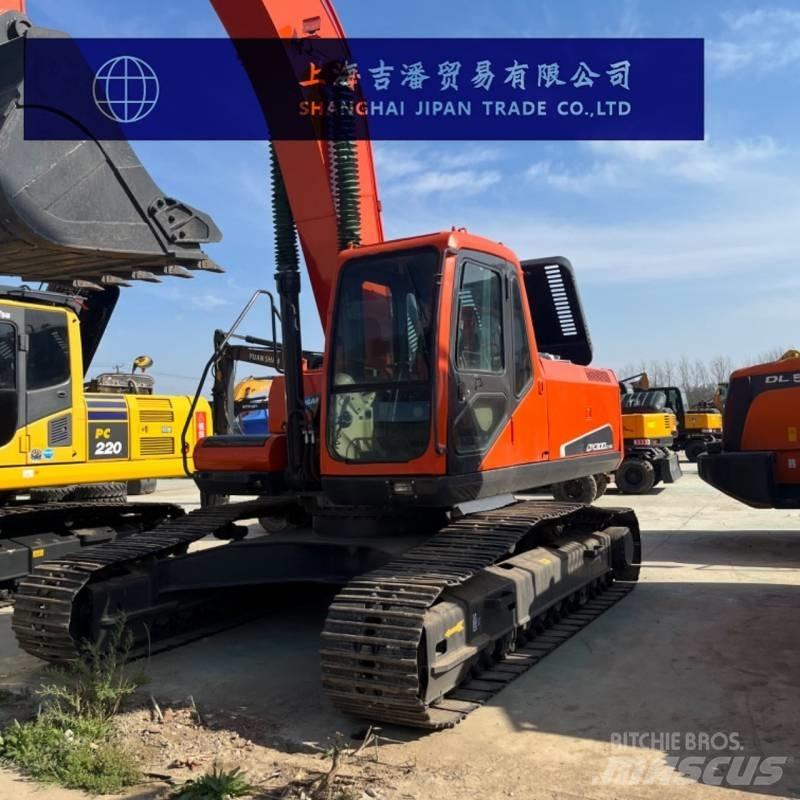

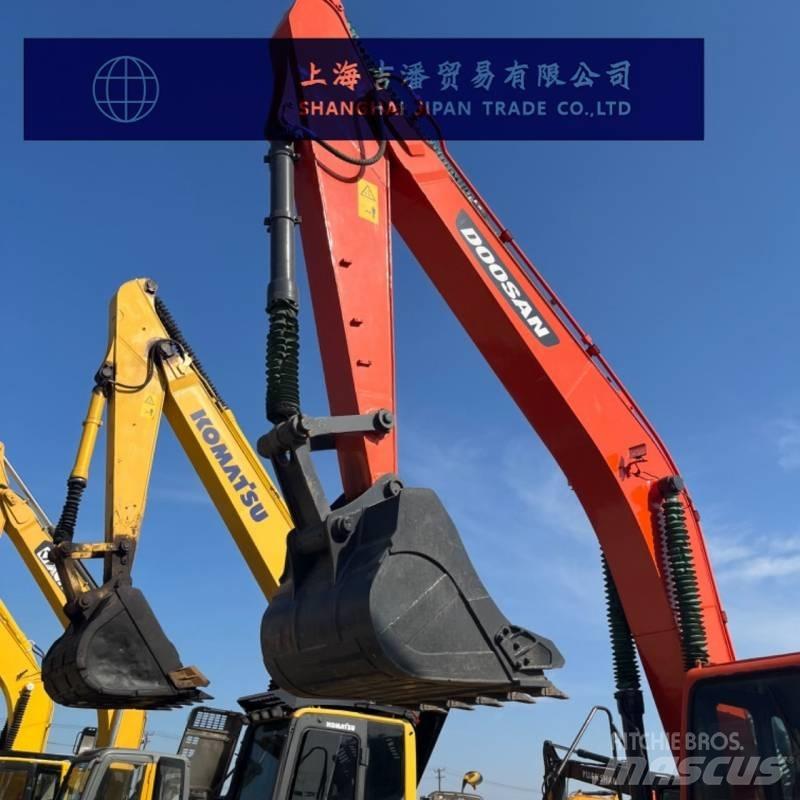

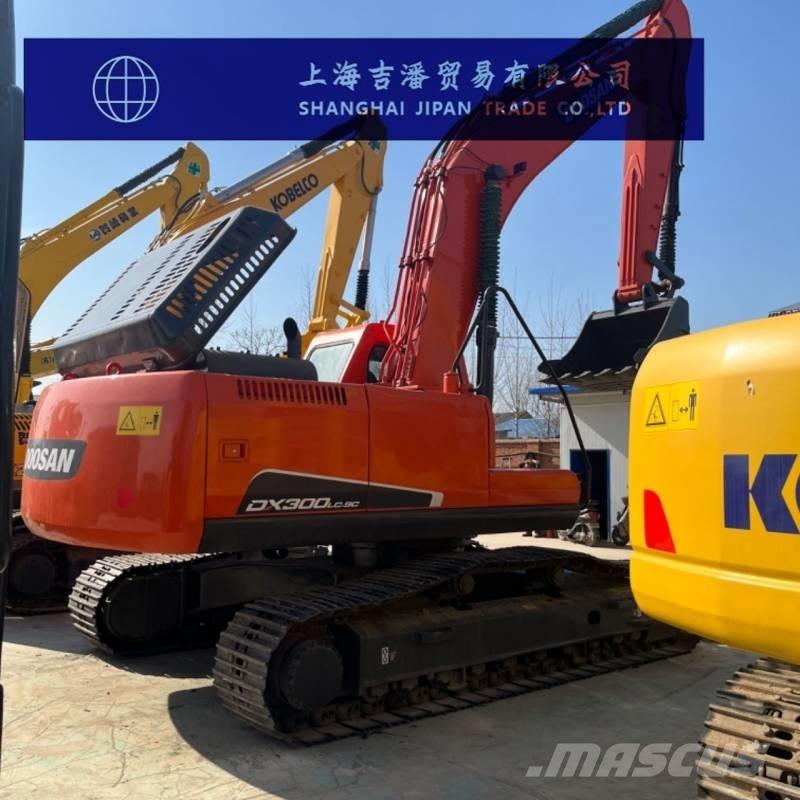

두산 DX 300

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

迪万伦DX300LC-9C挖掘机参数配置 规格 动力传统动力 厂商合资/进口 铲斗反铲 吨位(吨)30 整机工作重量(kg)30215 铲斗容量(m³)1.45/1.6 动臂长度(mm)6245 斗杆长度(mm)3100 性能 回转速度(rpm)9.4 回转扭矩(Nm)11760 行走速度(km/h)5.7 / 3.2 接地比压(Kpa)0.57 kg/cm2 铲斗挖掘力(kN)183.3 斗杆挖掘力(kN)128.4 动力系统 发动机型号DL08 额定功率(kw/rpm)159 / 1,900 气缸数(个)6 缸径×行程(mm)108 *309 液压系统 主泵类型变量柱塞泵 主泵最大流量(l/min)2*248 油类容量 燃油箱(L)500 液压油箱(L)280 主体尺寸 运输总长度(mm)10615 运输总宽度(mm)3199 运输总高度(mm)3,515 履带总长度(mm)4,940 履带板宽度(mm)600 履带总宽度(mm)3,200 最小离地间隙(mm )506 配重离地间隙(mm)1,150 后端回转半径(mm )3,188 支重轮数（单侧）(个)9 托链轮数（单侧）(个)2 履带板数量（单侧）(个)48 作业范围 最大挖掘半径(mm)10702 停机面最大挖掘半径(mm)10506 最大挖掘深度(mm)7275 最大挖掘高度(mm)10315 最大卸载高度(mm)7303 最大垂直挖掘深度(mm)4907 最大有效挖掘深度(mm)6,455
