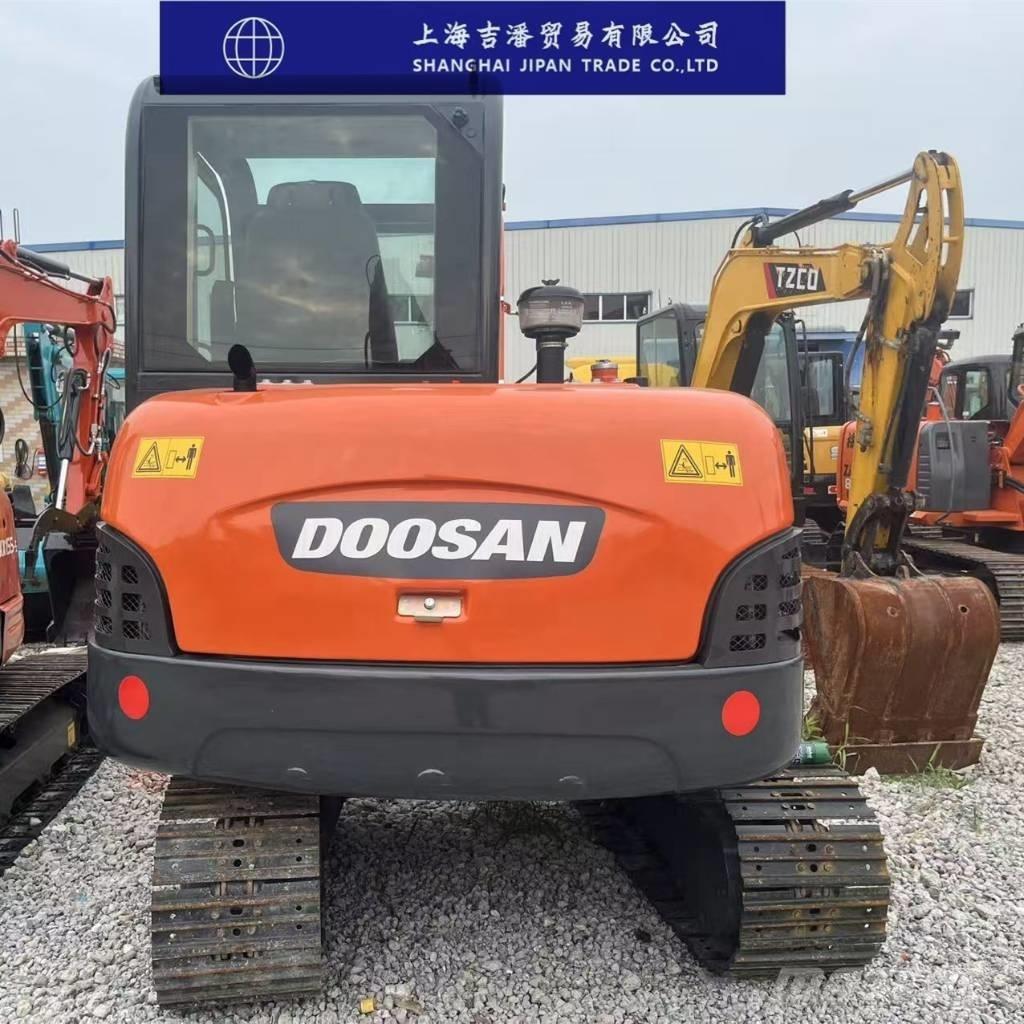

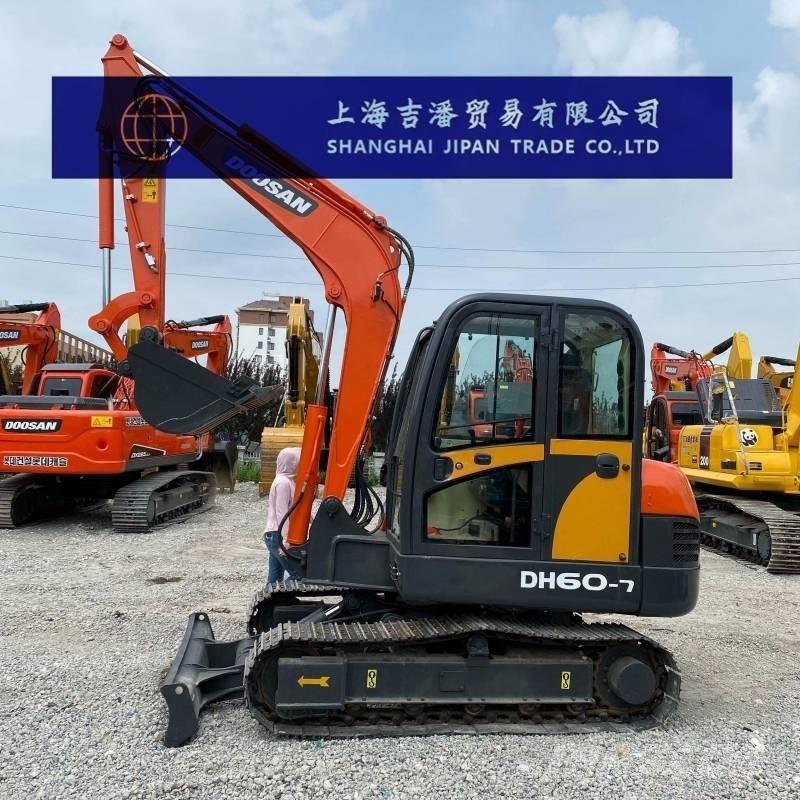

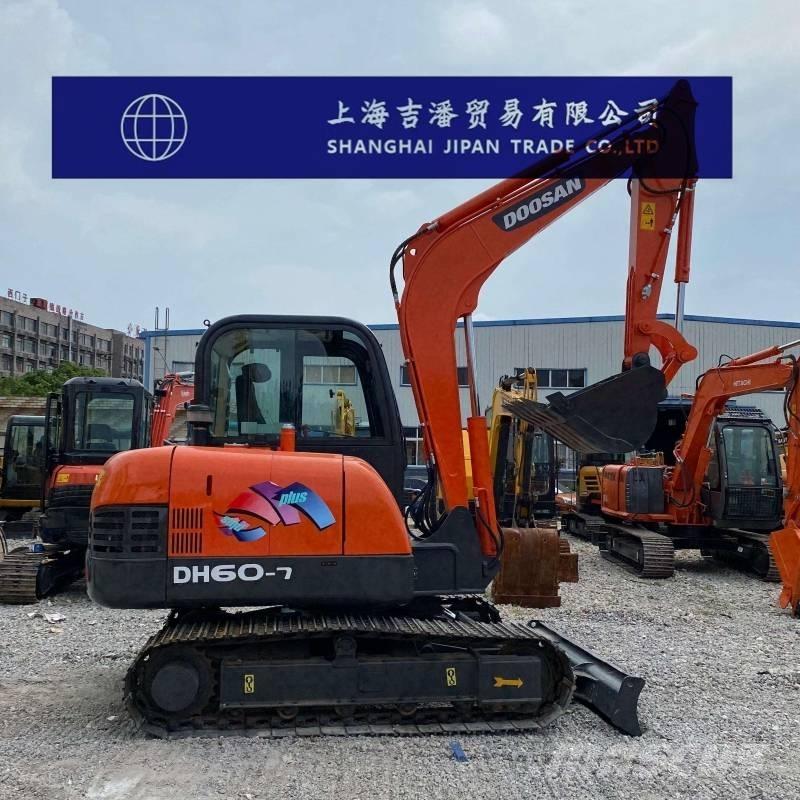

두산 DH 60-7
부가세 제외가격
20
즐겨찾기
공유
검색 저장출력
INFO
제품군
대형 굴삭기 29톤 이상
제작사/모델
두산 DH 60-7
제작년도
2023
사용시간
667 시간
국가
중국
일반 등급
1
2
3
4
5
마스쿠스 ID
955D9D12
가격
화폐 선택
세부정보
재고번호
1
동력 형식
디젤
제조번호
1
기존 차주 수
1
최근검사
2025-09-17
하부 구성품 상태
good condition
엔진
Original
총 중량
5550 kg
엔진 출력
38.1 kW (51.8 마력)
엔진 제조사
Yanmar
등록번호
1
매연 등급
Stage V / Tier V
버켓 용량
0.20 m3
트랙 폭
400 mm
최고 속도
4.30 km/h
장비크기
5850 x 1880 x 2575 mm
오리지널 컬러
Orange
디퍼/스틱 길이
1600 mm
상태 정보/보증
1 year
제품 국가
대한민국
운송 조건
FCA, FOB, CIF, EXW
증명서
미국 환경 보호국(EPA), 유럽 위원회(CE)
어태치먼트
We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET
TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET
CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL
Business hours:24 hours, holidays and Sundays
Contact: Lily
Whatsapp: +86 13696501072
Mobile:+86 17756597429
Wechat:17756597429
Packaging Details
1. Flat frame is more suitable for large construction equipment without disassembly.
2. Containers are the cheapest and fastest.
3. Bulk carriers are more suitable for large construction equipment.
4. Ro-ro shipment is fast and suitable for all kinds of machines.
You can choose any mode of transportation according to your needs.
부속품
라인 파열 밸브 붐 -> 안전선 파열 밸브 - 붐/호이스트
라인 파열 밸브 디퍼 -> 안전선 파열 밸브 - 디퍼/스틱
냉/난방 조절
Engine pre-filter
스켈레톤 버킷
회전 비컨
추가 장비
조이스틱 컨트롤
표준 굴착 버켓
기타 정보
Diwanlun DH60-7 excavator parameter configuration
specification
Power: Traditional power
Joint ventures/imports
Bucket backhoe
Tonnage (tons) 6
The working weight of the whole machine (kg) is 5550
Bucket capacity (m³) 0.09-0.2
Boom length (mm) 3000
Stick length (mm) 1600
Place of origin: Yantai, Shandong
performance
Bucket digging force (kN) 37.7
Bucket digging force (kN) 28.4
dynamical system
Engine model: Yanmar 4TNV94L
Rated power (kw/rpm) 38.1/2200
Number of cylinders (units) 4
Cooling method: Water cooling
The working form is air-cooled
Hydraulic system
Main pump type variable axial piston pump × 2
The maximum flow rate (l/min) of the main pump is 55×2
Pilot pump flow rate (L/min) 9.9
Working Hydraulic Oil Circuit (Mpa) 20.6
Traveling hydraulic circuit (Mpa) 20.6
Slewing hydraulic circuit (Mpa) 21.6
Body size
Total length of transport (mm) 5850
Total width of transport (mm) 1880
Total height of transport (mm) 2575
Cab total height (mm) 2575
Boarding width (mm) 1885
Track Grounding Length (mm) 1990
Total track length (mm) 2540
Track shoe width (mm) 400
Total Track Width (mm) 1880
Track gauge (mm) 1480
Minimum ground clearance (mm) 350
Rear end turning radius (mm) 1650
Scope of work
Maximum digging radius (mm) 6150
Maximum digging depth (mm) 3820
Maximum digging height (mm) 5760
Maximum unloading height (mm) 4030
