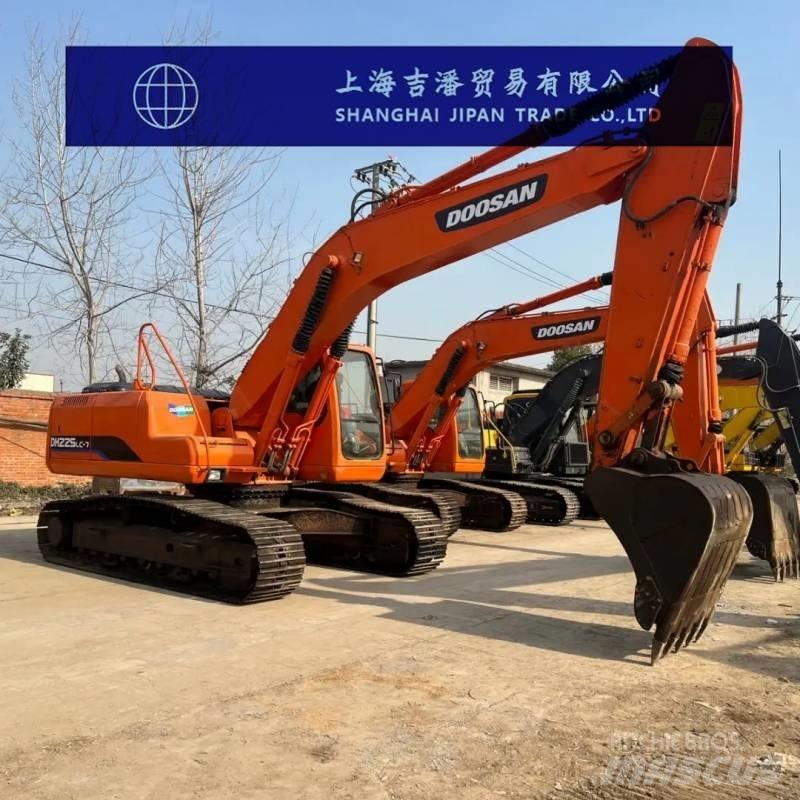

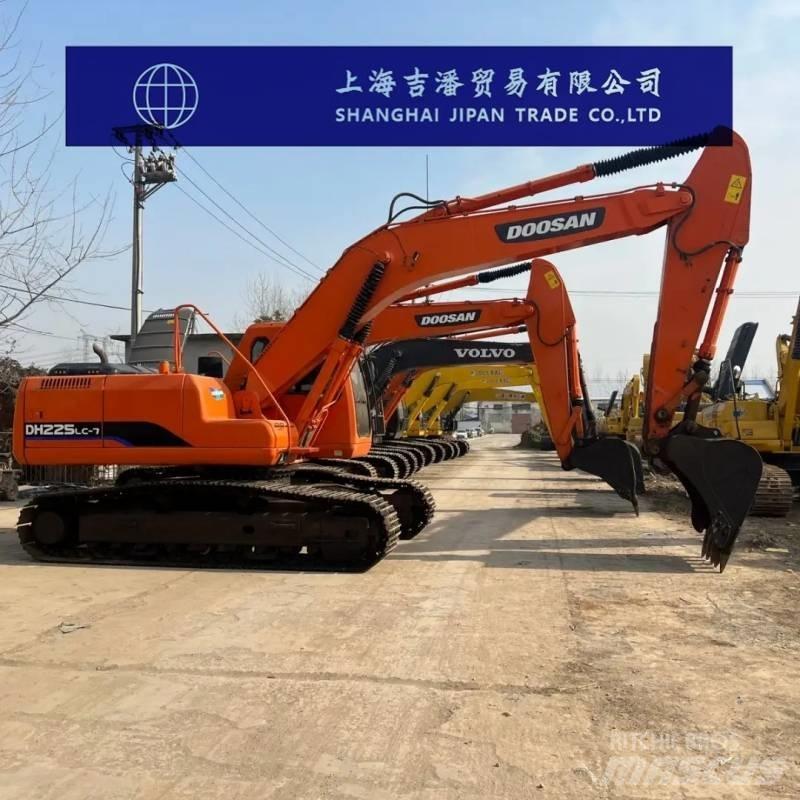

두산 DH 225 LC-7

We have all the parts for the machinery:ROCK BUCKET/SKELETON BUCKET /LOOSENING BUCKET/CLEANING BUCKET TILT BUCKET/DITCH BUCKET/BUCKET CLAMP/CLAMSHELL BUCKET/ROTARY SCREEN/CRUSHER BUCKET/RUSHER BUCKET CRUSHING AND SCREENING BUCKET/RAKE/RIPPER/THUMB CLIP/COMPACTION WHEEL Business hours,24 hours, holidays and Sundays Address: Shanghai City, China Contact: Jason Whatsapp: +86 13675656717 Mobile:+86 13675656717 Wechat:13675656717 Email: Packaging Details 1. Flat frame is more suitable for large construction equipment without disassembly. 2. Containers are the cheapest and fastest. 3. Bulk carriers are more suitable for large construction equipment. 4. Ro-ro shipment is fast and suitable for all kinds of machines. You can choose any mode of transportation according to your needs.

Parameter configuration of Doosan DH225LC-7 excavator Specification Power Traditional Power Joint venture/import by manufacturers Bucket backhoe Tonnage (tons)22 The working weight of the entire machine (kg) is 21,500 Bucket capacity (m³) : 0.5-1.28 Boom length (mm) : 5700 The length of the boom (mm) is 2900 Performance Rotational speed (rpm) : 12.4 Walking speed (km/h)3.1-4.5 Bucket digging force (kN)136.2/144.1 The digging force of the boom (kN) is 97/102.9 Power system Engine model: Doosan DB58TIS Rated power (kw/rpm)110/1950 Displacement (L)6.3 The cooling method is air cooling Hydraulic system The main pump type variable is an axial piston pump The maximum flow rate of the main pump (l/min) is 2×215 Main body size Total transportation length (mm) : 9510 The total transportation width (mm) is 2990 Total transportation height (mm)3030 The total height of the cab (mm) is 3000 The grounding length of the track (mm) is 3645 The total length of the track (mm) is 4440 Track plate width (mm) : 600 The total width of the tracks (mm) is 2990 Track gauge (mm) : 2390 Minimum ground clearance (mm) : 480 The ground clearance of the counterweight (mm) is 1105 Rear end turning radius (mm) : 2750 Scope of work Maximum excavation radius (mm) : 9910 The maximum excavation radius of the shutdown face (mm) is 9735 Maximum excavation depth (mm) : 6630 Maximum excavation height (mm) : 9660 Maximum unloading height (mm)6810 Maximum vertical excavation depth (mm) : 6045 Maximum effective excavation depth (mm) : 6445
