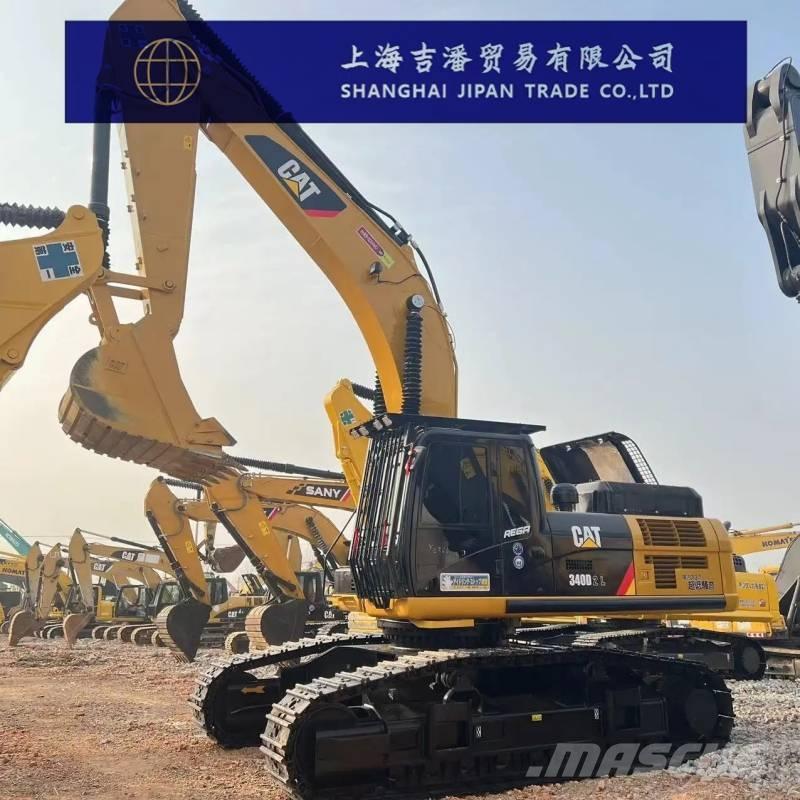

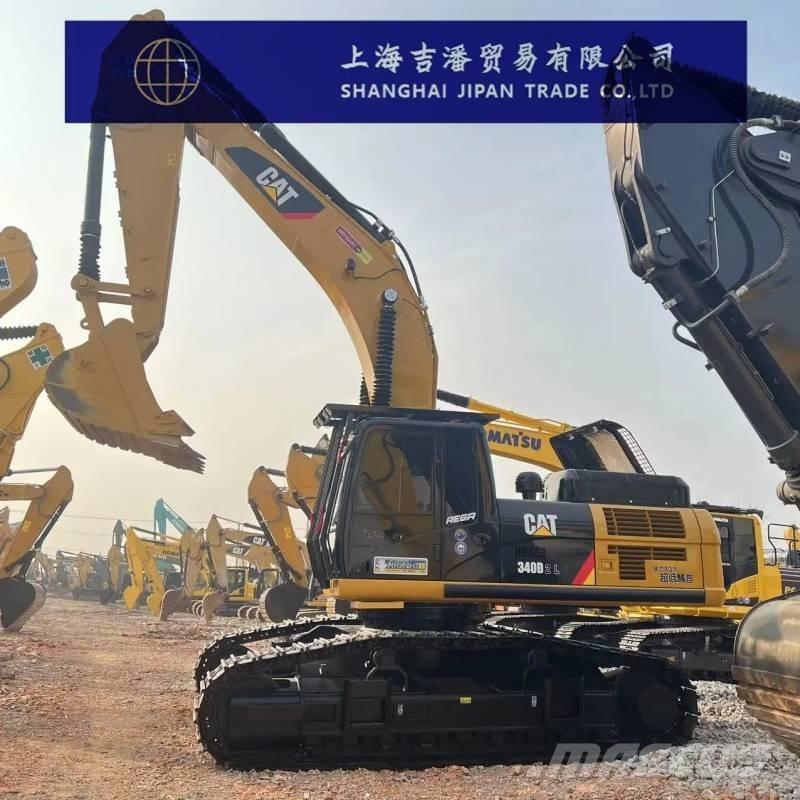

CAT 340 D

We're from Shanghai Jipan Trade Co.,Ltd.I'm the Sales Manager, specializing in selling used machines from various brands, including excavators,truck cranes,crawler cranes,and so on.With extensive export experience, our machines are sold well in Europe, America, Africa,and other regions, receiving rave reviews and a high repurchase rate. We uphold the principles of integrity and quality, and have a professional service team to provide you with one-stop service, ensuring accurate, efficient, and safe delivery of your machines.We are committed to building long-term relationships with every customer from around the world with competitive prices and superior quality. Contact: Jason WhatsApp/Mobile:0086 13675656717 WeChat:+86 13675656717 Shipping Method:Container Vessel, Bulk Carrier, Flatbed Vessel, or RoRo Vessel.

Parameter configuration of Cat 340DL hydraulic excavator Specification Tonnage (tons)40 The working weight of the entire machine (kg) is 38100-38600 Bucket capacity (m³) :1.88/2.14 Boom length (mm)6500/6180 The length of the boom (mm) is 2550/2800/3200 Origin: United States Performance Rotational speed (rpm)10 Walking speed (km/h)5 Bucket digging force (kN)176 Bucket shaft digging force (kN)158 Power system Engine model:Cat C9 ACERT Rated power (kw/rpm)209 Displacement (L)8.8 Number of cylinders:6 Cylinder diameter × stroke (mm):112×149 The cooling method is water cooling Hydraulic system The maximum flow rate of the main pump (l/min) is 2×280 Pilot oil circuit (MPa)3.9 Working hydraulic circuit (Mpa)35 Walking hydraulic circuit (Mpa)35 Rotary hydraulic circuit (Mpa)28 Boom cylinders - number × cylinder diameter × stroke (mm)150×1440 Bucket rod cylinder - number × cylinder diameter × stroke (mm)170×1738 Bucket cylinder - Number × cylinder diameter × stroke (mm)150×1151 Oil capacity Fuel tank (L)620 Hydraulic oil tank (L)310 Hydraulic System (L)410 Engine oil change volume (L)40 Coolant (L)40 Main body size The total transportation length (mm) is 11,200 The total transportation width (mm) is 3520 The total transportation height (mm) is 3690 The total height of the cab (mm) is 3420 The total length of the track (mm) is 5066 Track plate width (mm):600 The total width of the tracks (mm) is 3520 Track gauge (mm):2920 Minimum ground clearance (mm):743 The ground clearance of the counterweight (mm) is 1500 Rear end turning radius (mm):3500 Scope of work The maximum excavation radius of the shutdown face (mm) is 11084 Maximum excavation depth (mm):7322 Maximum excavation height (mm):10550 Maximum unloading height (mm):7277 Maximum vertical excavation depth (mm):5712 Maximum effective excavation depth (mm):7035 The boom rotation Angle (left/right °) is zero The width × height (mm) of the bulldozer board is non-existent There was no lifting or deepening (mm) by the bulldozer shovel
