CAT 320

Name: CAT 320
Brand: CAT
SKU: F5FF8A17
Price: 145000 EUR
Availability: InStock

부가세 제외가격

즐겨찾기

검색 저장

출력

INFO

제품군

대형 굴삭기 29톤 이상

제작사/모델

CAT 320

제작년도

2018

사용시간

2250 시간

장비위치

Saldus, Saldus novads

국가

라트비아

일반 등급

마스쿠스 ID

F5FF8A17

가격

화폐 선택

세부정보

동력 형식

디젤

제조번호

CAT00320EHEX02486

기존 차주 수

서비스 내역 전체

예

하부 구성품 상태

Excellent Condition

엔진

CAT 4-cilindru C4.4 ACERT

총 중량

22100 kg

엔진 출력

122 kW (166 마력)

매연 등급

Stage IV / Tier IV final

버켓 용량

1.30 m³

트랙 폭

790 mm

보조 유압장치 출력

429 리터/분

장비크기

4460 x 3170 x 3160 mm

오리지널 컬러

Dzeltena

상태 정보/보증

Lightly Used CAT 320 in Excellent Condition

제품 국가

라트비아

운송 조건

FCA

어태치먼트

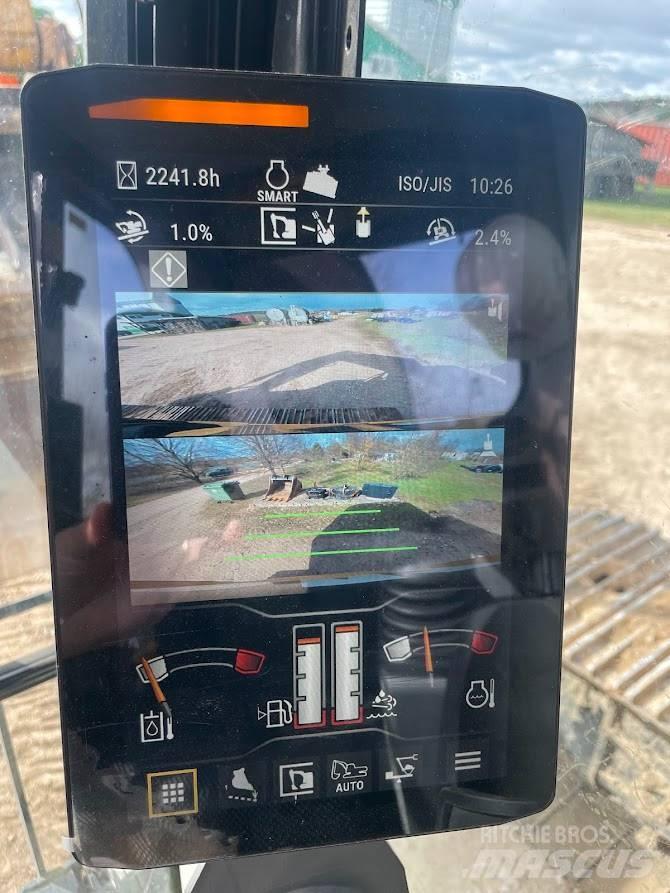

Hidrauliski sagāžams planēšanas kauss (platums 2000 mm, tilpums 1.23 m³) ar taisno nazi Hidrauliskā ātrā sakabe CAT CW40H CW-40-H.4.N ātrā sakabe ar pacelšanas āķi (ofseta), komplektācijā hidrolīnijas 2D Basic sistēma (FRU - Laser Catcher, Kit laser Catcher) SKF/BEKA/GRACO centrālā eļļošanas sistēma Visu tehnikas smērpunktu automātiska eļļošana Kabīnes priekšējā vējstikla aizsargs, FOGS Atverams vējstikla tīrīšanai Kabīnes LED gaismas (850 lm).Augstas izšķirtspējas 8 collu LCD skārienjutīgs ekrāns.Snieguma izlice 5,7 m, kāts 2,9 m Hidrauliskās sistēmas augstspiediena, vidēja spiediena un ātrās sakabes ķēdes.SmartBoom™.Cat® Grade Control 2D - Slīpuma regulēšanas sistēma Cat® Production Measurement - Pārvietojamā materiāla svēršanas sistēma 2D E-žoga tehnoloģija, automātiskas kustību robežas: e-atvēziens, e-siena, ekabīne, e-griesti, e-grīda.Gaisa amortizēta luksusa sēdvieta ar galvas balstu un divpakāpju sēdvietas sildītāju, augstuma regulēšana ar pulti.Radio AM/FM/USB

부속품

자동/유압식 퀵 커플러

수동/기계식 퀵 커플러

구스넥 붐

유압 조절식 붐

문서

CAT-320-apskats-latviski.pdf CAT-320-specifications-english.pdf

기타 정보

Tracked Excavator CAT 320 Technical Specifications: Operating weight: 21.9 – 23.5 t Engine: CAT 4-cylinder C4.4 ACERT (Stage IV) Power output: 122 kW / 164 HP (ISO 14396) Max digging depth: 6720 mm (with 2900 mm stick) Max reach at ground level: 9860 mm (with 2900 mm stick) Tail swing radius: 2830 mm Track length: 4460 mm Track width: 790 mm Transport width: 3170 mm Transport height: 3160 mm (with 2900 mm stick) Ground clearance: 470 mm Standard Equipment: Engine: Caterpillar C4.4 ACERT Twin Turbo diesel engine, Stage IV emission compliant, post-treatment system CEM (DOC+DPF+SCR), sealed dual air filter with pre-cleaner, automatic engine speed control, programmable idle shutdown. Hydraulic system: Electronic main control valve and tandem electronic main pump, automatic warm-up, two-speed automatic control, boom and stick regeneration circuits, three selectable power modes (Eco, Smart, Performance). Undercarriage: Grease-lubricated track chain, underguard, swing guard. Cab: ROPS-certified, high-pressure cabin with reinforced upper windshield and removable lower window, dual 12V outlets, USB port, dome and low LED lights, automatic bi-level climate control, air-suspended premium seat with headrest, seat heater, height adjustment with remote, armrest adjustment, steel hatch. Electrical system: Maintenance-free battery, central electrical disconnect switch, LED work lights with delay timer. Safety: Rear and right-side cameras, handrails, anti-slip maintenance platform, neutral lever for all controls, ground-level secondary engine shutdown switch, audible alert system. Other: Electrically controlled fan blades, grouped service points for oil and fuel filters, second oil dipstick at ground level, Cat Product Link system with VisionLink™ web monitoring interface. Machine Configuration: Boom: 5.7 m Stick: 2.9 m Combined circuit hydraulics SmartBoom™ Cat® Grade Control 2D (slope guidance) Cat® Production Measurement (on-board weighing) 2D E-Fence technology (motion limits: e-ceiling, e-floor, e-wall, e-swing) 790 mm triple grouser track shoes with full-length track guard Radio AM/FM/USB Optional Equipment: LED cab lights (850 lm) 8" high-resolution LCD touchscreen display SKF/BEKA/GRACO automatic centralized lubrication system FOGS front windshield guard (openable for cleaning) CAT digging bucket (width: 1300 mm, volume: 1.3 m³) with “Penetration Plus” teeth (5) Hydraulic tilting grading bucket (width: 2000 mm, volume: 1.23 m³) with bolt-on straight edge CAT CW40H hydraulic quick coupler with lifting hook and hydraulic lines 2D Basic system (FRU - Laser Catcher, Kit Laser Catcher) Lightly Used CAT 320 Tracked Excavator in Excellent Condition Offered for sale is a lightly used CAT 320 tracked excavator in outstanding technical and visual condition. The machine has been used exclusively for excavation work, operated with care, and has logged just over 1000 actual working hours (digging). It is fully job-ready, requiring no additional investment. No oil leaks – hydraulics and engine are in perfect working order, regularly serviced by authorized dealer. Original factory paint – well preserved appearance with no rust or mechanical damage. Clean and comfortable cab – equipped with air conditioning, heater, luxury seat; all systems operate flawlessly. All systems function smoothly and precisely – including SmartBoom, Grade Control 2D, Production Measurement and more. Maintenance has been performed using only original parts and lubricants – service documentation available upon request. The machine has operated in a single location – no transport wear from frequent relocations between job sites. Buyer’s benefit: No repairs or investment needed – ready to work immediately Reliable model with proven efficiency and power더 보기
