INFO

제품군
기타 지하 광산용 장비
제작사/모델
ALPHAIR
컨디션
Used
장비위치
Leduc, Alberta
국가
캐나다
마스쿠스 ID
E08AF081

가격

화폐 선택

세부정보

재고번호
105477
기타 정보

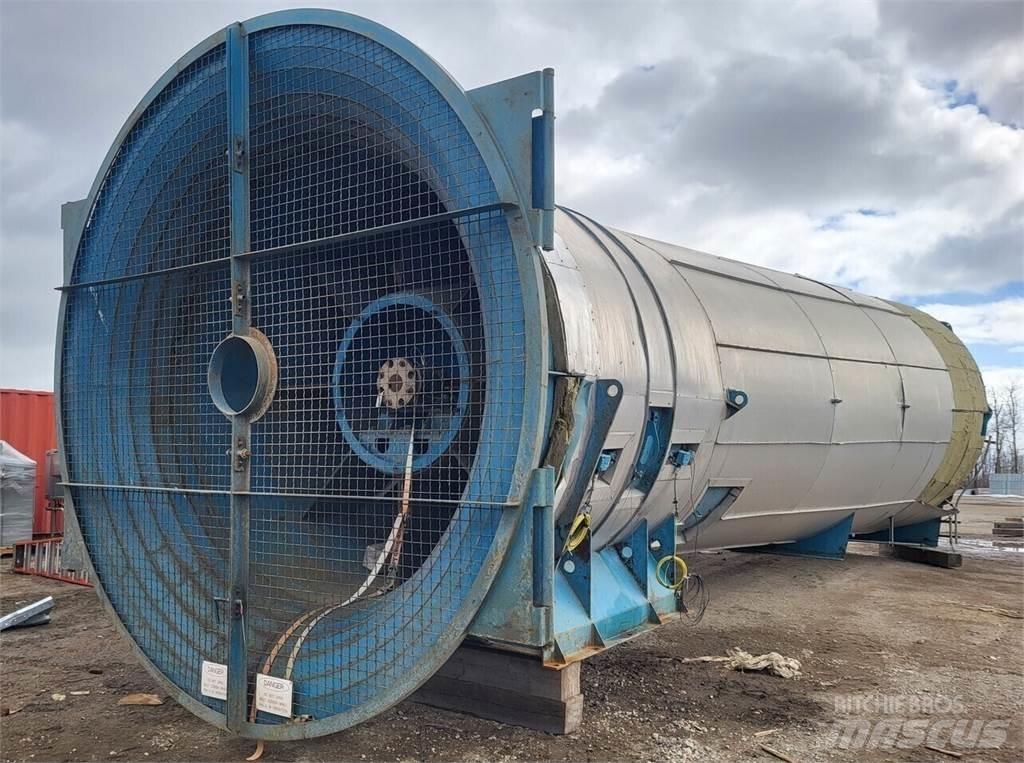

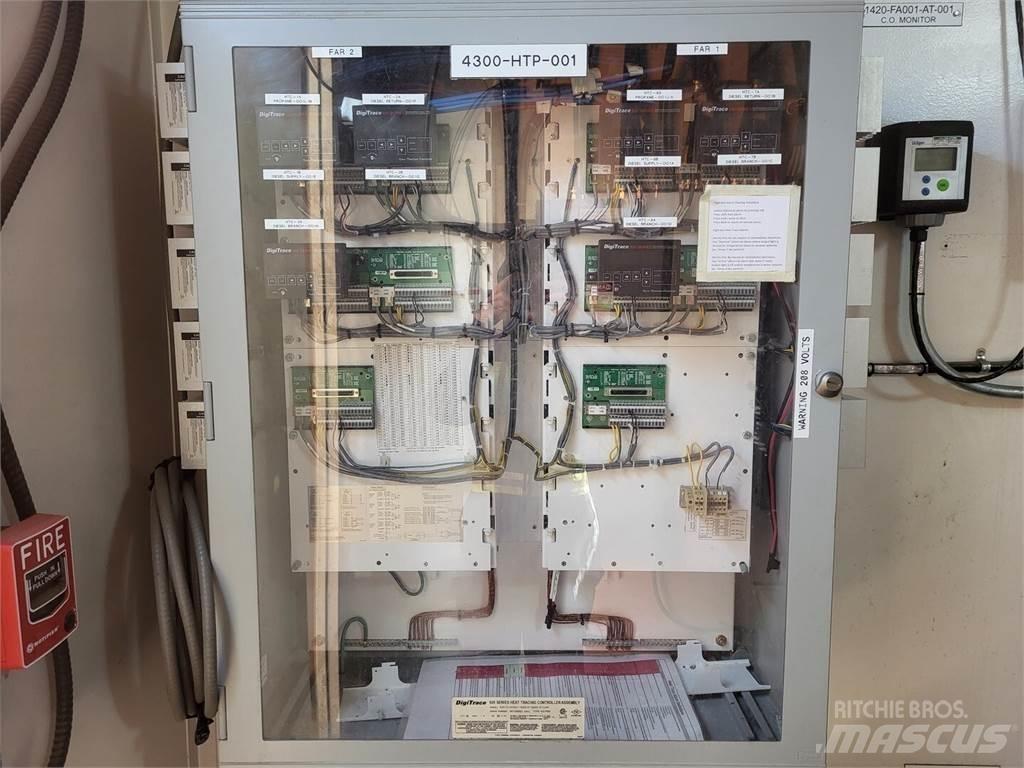

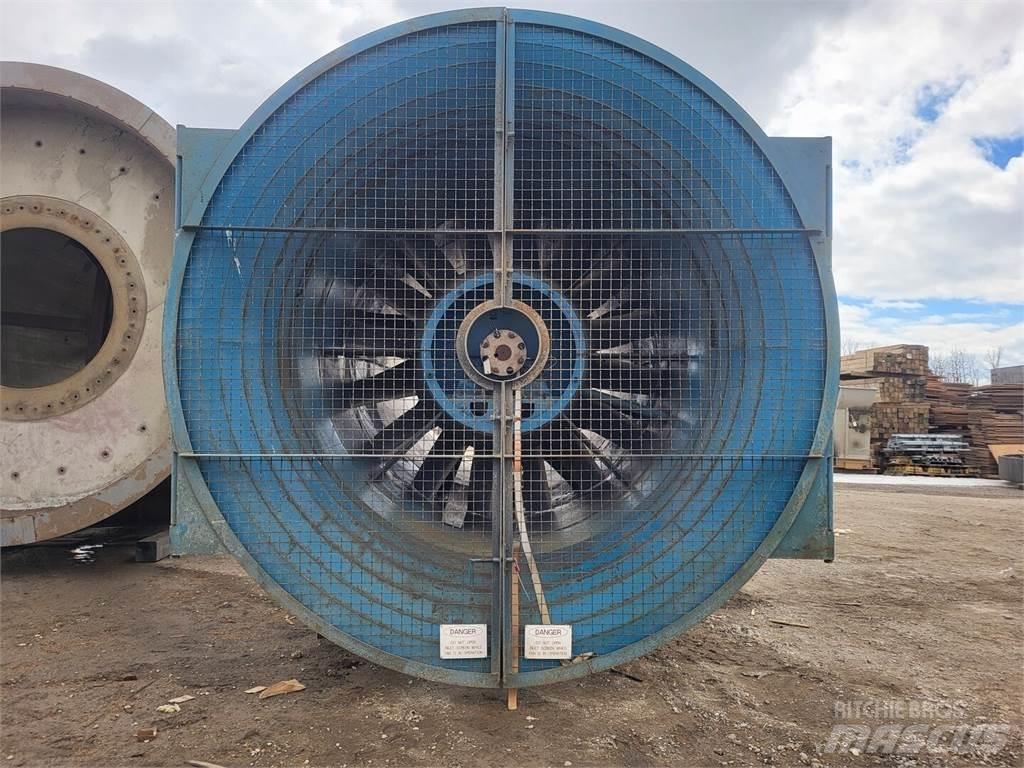

Axial Ventilation Fan & Air Tunnel w/ 1000hp Motor & Control Module Title: Axial Ventilation Fan & Air Tunnel w/ 1000hp Motor & Control Module SKU: 105477 Condition: Used Package includes: - 1 x ALPHAIR Axial Ventilation Fan - 1 x ALPHAIR Axial Ventilation Air Tunnel - 1 x ALPHAIR Axial Ventilation Elbow Connector - 1 x ALPHAIR Axial Ventilation Elbow - 1 x TECO-WESTINGHOUSE 1000hp, 4000V Premium Efficiency 3-Phase Severe Duty Motor - 1 x Electrical/Control Module w/ 1000hp VFD Fan Performance: - Max. Air Flow: 375,000cfm - Min. Air Flow: 276,000cfm - Static Pressure: 12.73 in. wg. - Fan RPM: 880rpm - Inlet Density: 0.075lbs/ft cu. - Blade Tip Angle: 34deg. Motor Specifications: - Make: TECO-WESTINGHOUSE - Desc.: Premium Efficiency 3-Phase Severe Duty Motor - Type: AEJH-8A001 - Poles: 8 - Output: 1000hp - Volts: 4000v - Rating: Cont. - Amps: 130a - RPM: 890rpm - IP: 55 Control Module Components: - ALLEN-BRADLEY PowerFlex 7000, 1000hp VFD - Controls for Heater/Burner Modules (Modules Sold Separately) - Motor and Fan Controls - Building Heating Units - Control Transformers - Heat Trace Control Panel and Power Supply for Insulated Fuel Lines (In FAR #1 Control Module Only)더 보기

Lenmark Industries Ltd

27576 51a Ave V4W 4A9 Langley British Columbia 캐나다
